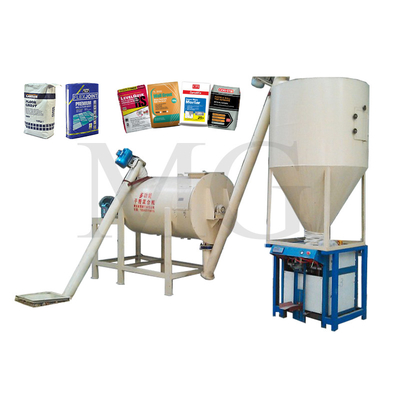

MG series Dry Mix Powder Mortar Mixing Plant is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine, and forms one whole simple dry mortar production line, improves the working efficiency a lot, it can finish the work from feeding, mixing, conveying to packing automatically.
Advantages of CE Dry Mix Powder Mortar Mixing Plant.
I Low investment,suitable for starters or limited budget.
II Take up little space, total area occupation <20 m2, height <3.5 meters.
III Easy operation, only need 2-3 workers.
IV High capacity, the output can reach 3-6 T/H, 20-40 T per day.
V Low energy consumption,total power 20 kw.
1. Raw Materials of CE Dry Mix Powder Mortar Mixing Plant.
Raw material used in the dry powder mortar mixing plant:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
2. Application of CE Dry Mix Powder Mortar Mixing Plant.
The simple dry construction mixture mixing plant can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
3. Product Details of CE Dry Mix Powder Mortar Mixing Plant.

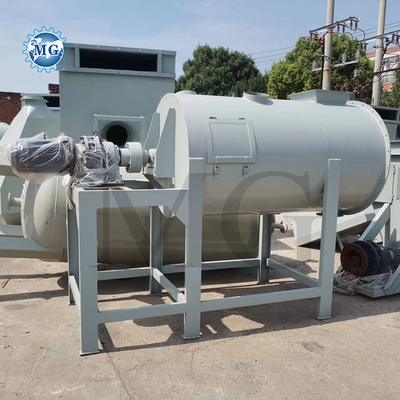

1. Ribbon Mixer Machine.
The screw ribbon mixer is the most high economy and cost-effective dry mortar mixer,the outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. so to achieve uniform mixing effect in relatively short time.this is its working principle,the mixing time is about 10-15min/batch.
The screw conveyor is Φ165X3500mm, the mixer mortar is transferred from mixer to finish product hopper.
3. Finished Product Storage Silo.
The finished product hopper is about 1.5m³, to store the finished material and prepare for the packing machine, which improves the efficiency a lot.
4. Automatic Packing Machine.
Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag. High packing speed, high weighing accuracy, high degree of automation, simple operation,and easy maintance.
0.25m³, 2.2kw, providing air source for automatic packing machine and finished product hopper,achieving quick packing and broken arch of finish product hopper.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging
|

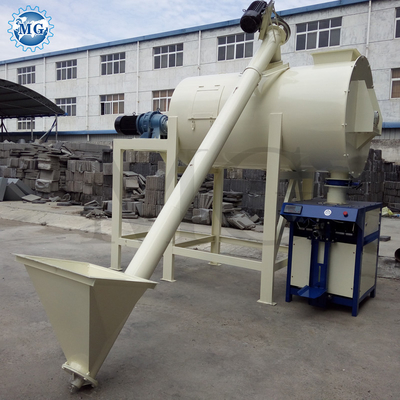

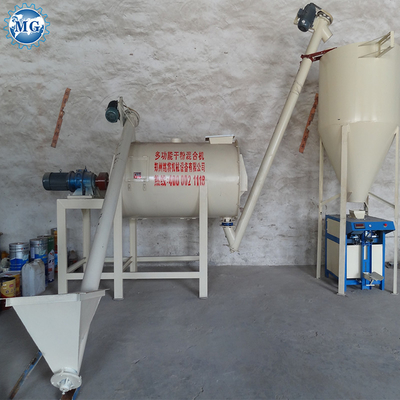

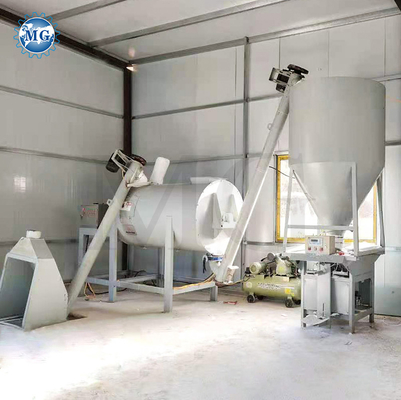

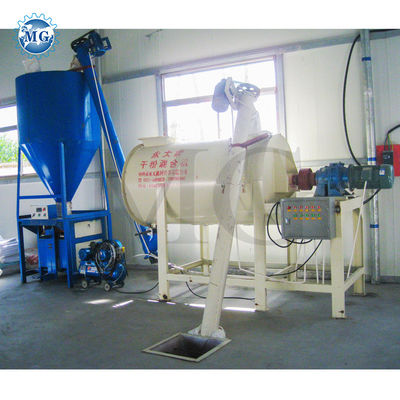

5. Successful Projects of CE Dry Mix Powder Mortar Mixing Plant.
6. Working Principle of CE Dry Mix Powder Mortar Mixing Plant.

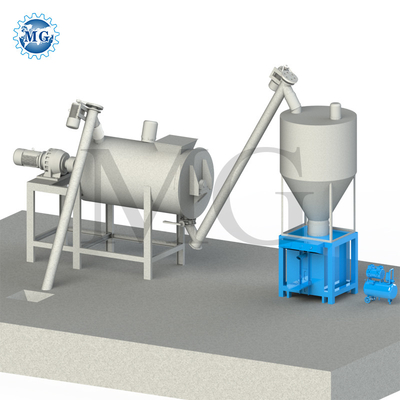

Our simple dry mix powder mortar mixing plant include a loading screw conveyor machine, a ribbon mixer machine, a second screw conveyor machine, a finished product hopper, one or two valve type packing machine, a air compressor machine, a electric control cabinet, etc
When the simple dry mix powder mortar plant works, firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor,secondly, several kinds of raw material will be mixed by the multi ribbon screw mixer for about 10-15 minutes, thirdly,the mixed material will be transported into the end product silo by second screw conveyor, fourthly, the finished product will be packed into bags by packing machine, our packing machine can pack 15-50 kg per bag product, the packing speed is about 4-6 s per bag.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years. The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
14. FAQ
1. What is the capacity of your dry mortar plant?
We have dry mortar plant capacity from 3-50T/H as your requirement, and also we can customize the machine for you.
2. How many workers are needed to operate the equipment?
Our 3-4 t/h simple dry mortar plant need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar plant and 10-12 t/h automatic dry mortar plant need 3-4 worker.
3. Are you a trading company or a manufacturer?
We are the factory.
4. Product quality assurance?
Zhengzhou MG Industrial Co,.Ltd provides our customers with a 12-month warranty on the delivery date of the machines we export.
During the warranty period, if any material or workmanship defects occur during normal operation, we will replace or repair defective parts at our own discretion.
5. What information should the customer give us so that we can provide the appropriate quotation and service?
What is your final product?
What is your raw material?
What is your capacity?
6. How long is your equipment warranty? Does your company supply spare parts?
The warranty period of the rotary kiln is one year. We will provide spare parts for you at the lowest price.In the warranty period, if any material or workmanship defects occur during normal operation, we will replace or repair defective parts as appropriate.
7. If I need a full production line, can you help us design and build it?
Yes, we can help you design a complete production line and give you relevant professional advice. We have established many projects in China and overseas.
8. Can we visit your factory?
Yes. You can visit our factory anytime you want.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
