Simple Small 1-5 T/h Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine

1. Description of Wall Putty Tile Adhesive Grout Making Machine.

MG series Dry Mortar Mixing Plant Tile Adhesive Making Machine is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine, and forms one whole simple dry mortar production line, improves the working efficiency a lot, it can finish the work from feeding, mixing, conveying to packing automatically.

Advantages of MG Wall Putty Ceramic Tile Adhesive Making Machine
I Low investment, suitable for starters or limited budget.
II Take up little space, total area occupation <20 ㎡, height <3.5 meters.
III Easy operation, only need 2-3 workers.
IV High capacity, the output can reach 3-6 T/H, 20-40 T per day.
V Low energy consumption, total power 20 kw.

2. Product Configuration of Wall Putty Tile Adhesive Grout Making Machine.



2. Screw conveyor.

The screw conveyor include Φ165X3500mm, Φ219X3500mm the mixer mortar is transferred from mixer to finish product hopper.





3. Finished Product Storage Silo.

The capacity of finished product hopper include 1.5m³, 2.5m³, 3.5m³, to store the finished material and prepare for the packing machine, which improves the efficiency a lot.





4. Automatic Packing Machine.

Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag. High packing speed, high weighing accuracy, high degree of automation, simple operation,and easy maintance.





5. Air Compressor.

0.25m³, 2.2kw, providing air source for automatic packing machine and finished product hopper,achieving quick packing and broken arch of finish product hopper.





3. Working Principle of Dry Mix Mortar Plant Tile Adhesive Production Line.

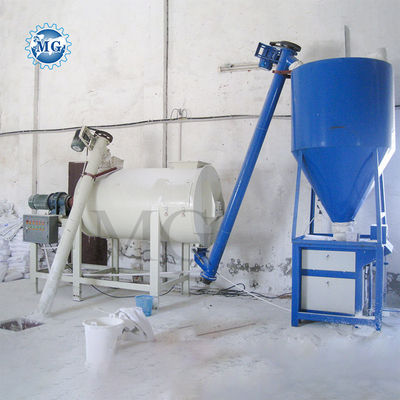

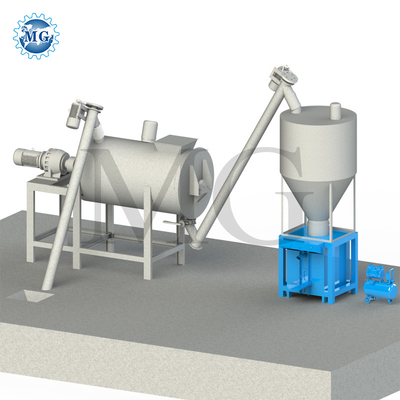

Our simple dry mix powder mortar production line include a loading screw conveyor machine, a ribbon mixer machine, a second screw conveyor machine, a finished product hopper, one or two valve type packing machine, a air compressor machine, a electric control cabinet, etc.

Firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor,secondly, several kinds of raw material will be mixed by the multi ribbon screw mixer, thirdly,the mixed material will be transported into the end product silo by second screw conveyor, fourthly, the finished product will be packed into bags by packing machine.

4. Raw Materials of Wall Putty Tile Adhesive Grout Making Machine.

5. Application of Wall Putty Tile Adhesive Grout Making Machine.

Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar,anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.

6. Our company.

Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer,screw ribbon mixer machine,twin shaft paddle mixer machine,impulse dust collector,automatic packing machine,and so on.

MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 70 countries ,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.

1. What is the capacity of your automatic dry mortar mixing plant?
A: We have dry mortar mixing plant capacity ranges 3-50T/H as your requirement, And also we can customize the production line for you.

2. Can you provide formula of different kind of dry mortar?
A: Yes,we can, we have been professional dry mortar production equipment supplier for more than 20 years, we have many customers all over the world, and we are very experienced in dry mortar production field, we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association, we can provide all kinds of best formula for our customers.

3. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.

4. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.

5. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we will assemble and test all the equipment and pack them carefully before delivery. We have exported to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.

6. What kind of product can this production line make?
A: Our automatic dry mortar mixing plant can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,tile grout,masonry mortar,and so on.
