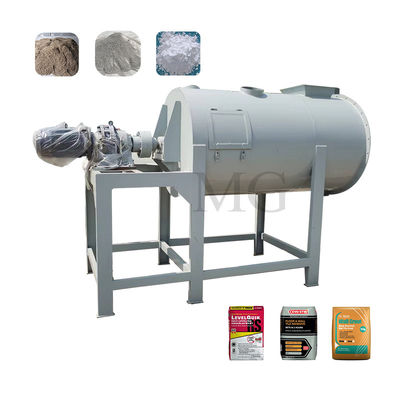

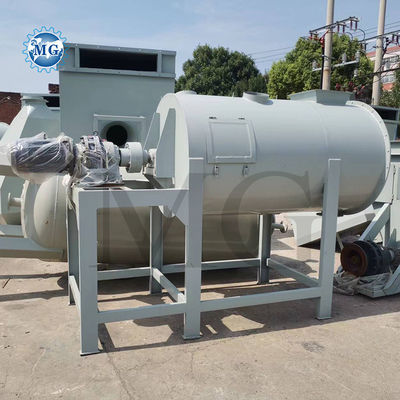

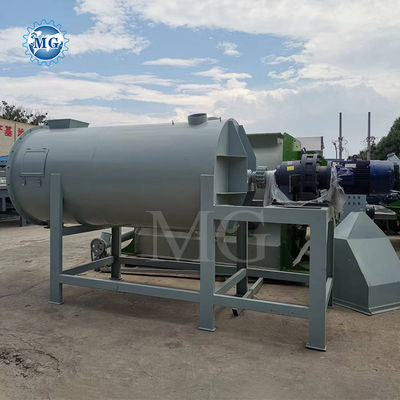

1. Description of CE Certificated Ribbon Mixer Blender.
Zhengzhou MG dry mortar ribbon mixer is developed based on the U-type horizontal spiral ribbon mixer which has been distributed to a lot of cities by us, after times of improvement. Since it is designed with three -layer successive spiral ribbons, it may have three layers of material flows; therefore, during the convention process, the materials maybe mixed rapidly and evenly in such a manner of penetrating through each other and accomplishing displacement.
2. Advantages of CE Certificated Ribbon Mixer Blender.
Characteristics of the dry mortar mixer ribbon mixer:
1. MGDM-1.0 skim coat spiral mixer is widely applied as it can mix the solid and solid (powder and granule) materials, solid and liquid materials(powder and liquid), liquid and liquid materials. For mixing dry mortar, it mainly mix cement, sand, flyash, additives etc.
2. it has high degree of uniformity and may well mix the materials in a proportion of 1:1000, so such machine will be better when mixing materials with a great disparity in specific gravity.
3. it can be installed conveniently, discharge quickly, operate easily and occupy little area, and also it have multi-functions by apply the design of lower opening according to the requirements of users.
4. It can mix material gently and will not damage the initial state of the materials.
5. This equipment run stably and reliably and has fewer wearing parts, so it processes long service life and requires convenient maintenance and simple operation.
6. Sealing system has good tightness, ensuring no products leakage.
7. Durable structure, stable performance, long service time and less spare parts.
8. Material of the mixer: Carbon steel, and aslo we can make it stainless steel as requirement. This skim coat spiral mixer can also equip with automatic packing machine according to customer's requirements. And we can also supply big capacity dry mortar production line with capacity from 3-30T/H.
3. Product Configuration of CE Certificated Ribbon Mixer Blender.
| Model |
Power |
Volume of Drum |
Capacity |
Size |
Diameter of Drum |
| MG500 |
5 KW |
0.8 m3 |
0.5 T/Batch |
2850x800x1950mm |
Φ800mm |
| MG1000 |
7.5 KW |
1.6 m3 |
1 T/Batch |
3300x1050x2100mm |
Φ1050mm |
| MG2000 |
11 KW |
2.8 m3 |
2 T/Batch |
3750x1280x2300mm |
Φ1280mm |
| MG3000 |
15 KW |
3.7 m3 |
3 T/Batch |
4050x1380x2500mm |
Φ1380mm |

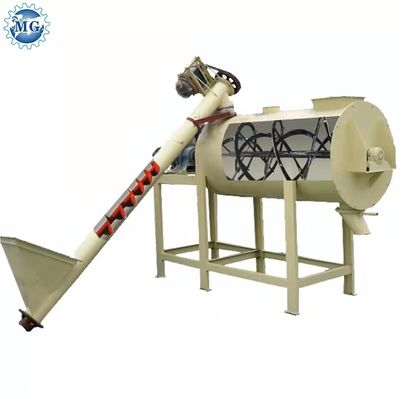

4. Working Principle of CE Certificated Ribbon Mixer Blender.
When the ribbon mixer works, the outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time.
5. Raw Materials of CE Certificated Ribbon Mixer Blender.
1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.
6. Application of CE Certificated Ribbon Mixer Blender.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7.Our company.
8. FAQ
1. How is the quality of your products?
Our machines are manufactured strictly according to national and international standards, and we will assemble and test all the equipment and pack them carefully before delivery. We have exported to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
2. Do you have your own factory?
We have our own factory. Located in Zhengzhou City, Henan Province, China, welcome to visit our factory. In addition, we have long-term cooperative relationships with some excellent raw material suppliers to ensure that the prices of the products we supply are lower than other foreign trade companies.
3. What product can this production line make?
Our automatic dry mortar production line can make all kinds of dry mortar, such as wall putty, plaster, gypsum mortar, cement mortar, skim coat, ceramic tile adhesive, tile glue, tile grout, tile joint, and so on.
4. Do you provide equipment operation training?
Yes. All of our engineers have passports. We can send experienced engineers to the customer's site to guide equipment installation, debug the production line until it is put into production, we will also provide installation instructions, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation steps drawings we provide, and we can also guide the installation with online videos.
5. Can I visit your factory?
Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
6. Do you provide after-sale service?
Yes. The warranty period of our machines is 12 months, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
