Full Automatic Sand Cement Powder Mixing Tile Grout Tile Adhesive Dry Mix Plant
1. Description of Full Automatic Dry Mix Plant
Dry mortar plant is a set of equipment that is designed to mix dried sand, cement, thickening powder, fly ash, and other functional additives together according to different recipes. The plant produces bagged or bulks dry mortar, which can be applied directly after mixed proportionally into the water and stirred for a while.
It is mixed raw materials in dry form that is made by mixing sand, cement, mineral, and functional additives together proportionally. This process is commonly conducted by a dry mortar mixing machine. According to its usage, dry mix mortar falls into three types, colored powder coating, adhesive, and road or ground repair and hardening materials.
2. Key process of Full Automatic Dry Mix Plant:
- Automated material handling: Bulk materials like cement and sand are pneumatically transferred from silos to weighing hoppers using screw conveyors.
- Precision batching: Computer-controlled scales ensure accurate measurement of raw materials and additives
- Continuous mixing: Twin-shaft mixers achieve homogenization in 3-5 minutes, supporting rapid production cycles
- Integrated packaging: Automated bagging machines with volumetric dosing enable synchronized packaging operations at the rate of 4-6 bags per second.
- This system reduces labor intensity by 80% compared to manual processes and maintains dust emissions below regulatory limits through enclosed production and advanced filtration. It is widely used in construction materials manufacturing, offering modular expansion options to accommodate growing production demands.
3. Raw Materials of Full Automatic Dry Mix Plant
| Cementing material |
cement, lime, plaster |
| Aggregate |
yellow sand, quartz sand, limestone, dolomite, expanded perlite etc. |
| Mineral admixture |
industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc. |
| Chemical additives |
HPMC, Water-retention and thickening material |
5. Parameter of Full Automatic Dry Mix Plant
| Model |
2000L Mixer |
3000 Mixer |
4000L Mixer |
6000L Mixer |
10000L Mixer |
| Capacity |
10-12T/H |
15-20T/H |
20-30T/H |
30-40T/H |
50-60T/H |
| Machine height |
8-9m |
9-10m |
10-111m |
11-12m |
13-15m |
| Total power |
80-90KW |
90-100KW |
100-110KW |
110-120KW |
120-150KW |
| Worker required |
2-3 person |
3-4 person |
3-4 person |
3-4 person |
3-4 person |
| Workshop required |
500-600m2 |
600-800m2 |
800-1000m2 |
800-1000m2 |
1000-1500m2 |
| Bag belt conveyor |
B500X4000mm |
B500X4000mm |
B500X4000mm |
B500X4000mm |
B500X4000mm |
| Pallet machine |
Provide |
Provide |
Provide |
Provide |
Provide |
| Sand dryer |
As requirement |
As requirement |
As requirement |
As requirement |
As requirement |

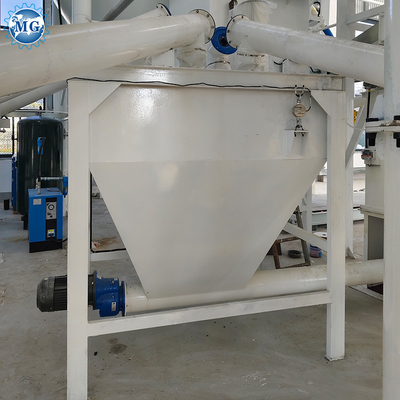

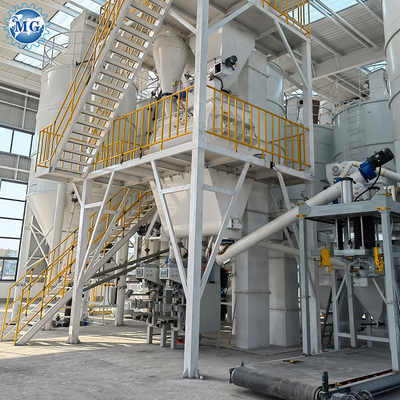

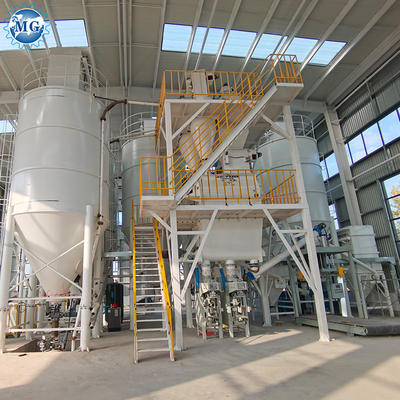

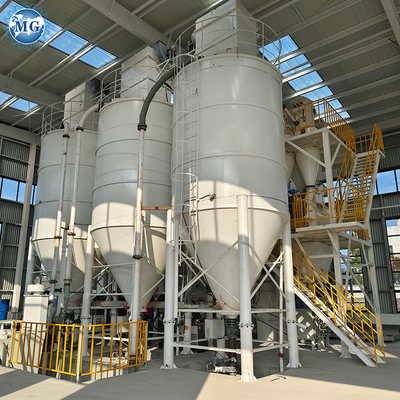

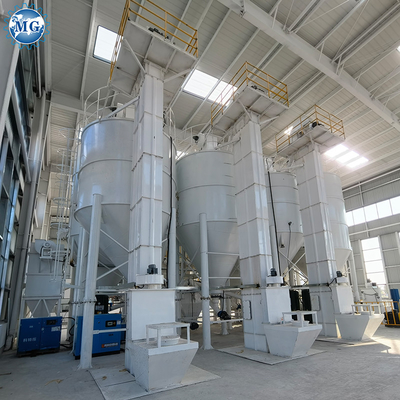

6. Machine site of Full Automatic Dry Mix Plant
7. Our Factory.
8. FAQ of Full Automatic Dry Mix Plant
1. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
2. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simple dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-50 t/h automatic dry mortar production line need 3-4 workers.
3. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.
4. How long is the warranty?
A: 12 months, within this period we provide you technical services for free.
5. What kind of product can this production line make?
A: Our automatic dry mortar mixing plant can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,tile grout,masonry mortar,and so on.
