1. Description of Dry Mix Powder Mortar Production Line.
MG series Dry Powder Mortar Tile Adhesive Making Machine is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine, and forms one whole simple dry mortar production line, improves the working efficiency a lot, it can finish the work from feeding, mixing, conveying to packing automatically.
2. Advantages of Dry Mix Powder Mortar Production Line.
Low investment: suitable for starter or individuals with limited budget.
Little space: plant area occupation <20 m2, height <3.5 meters.
Easy to operation: 2-3 people can make it.
High capacity: the output can achieve 1-8 T/H, can meet most requirement of customers.
High efficiency: mixing speed 10-15 min/batch, can achieve high mixing uniformity.
3. Product Configuration of Dry Mix Powder Mortar Production Line.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging
|

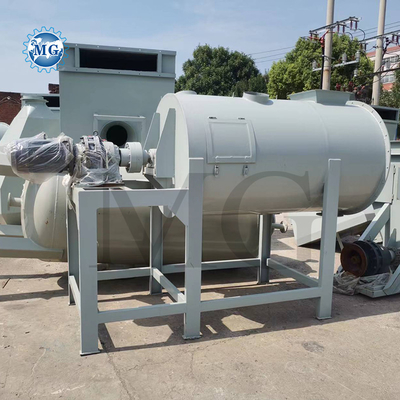

1. Ribbon Mixer Machine.
The screw ribbon mixer is the most high economy and cost-effective dry mortar mixer,the outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. so to achieve uniform mixing effect in relatively short time.this is its working principle,the mixing time is about 10-15min/batch.
The screw conveyor is Φ165X3500mm, the mixer mortar is transferred from mixer to finish product hopper.

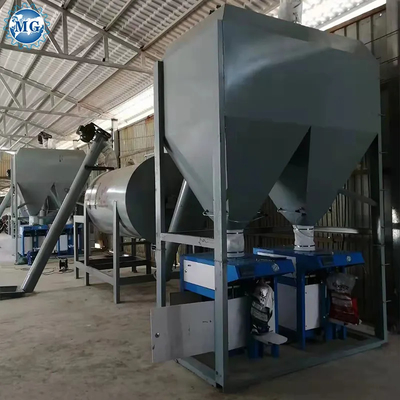

3. Finished Product Storage Silo.
The finished product hopper is about 1.5m³, to store the finished material and prepare for the packing machine, which improves the efficiency a lot.
4. Automatic Packing Machine.
Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag. High packing speed, high weighing accuracy, high degree of automation, simple operation,and easy maintance.
0.25m³, 2.2kw, providing air source for automatic packing machine and finished product hopper,achieving quick packing and broken arch of finish product hopper.
4. Working Principle of Dry Powder Mortar Tile Adhesive Making Machine.

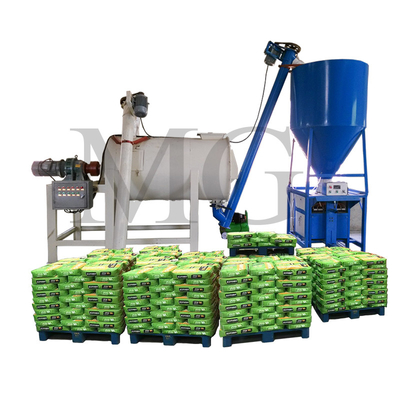

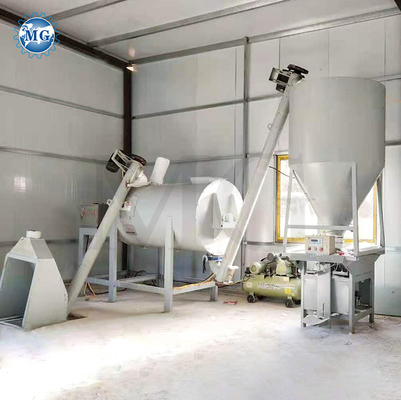

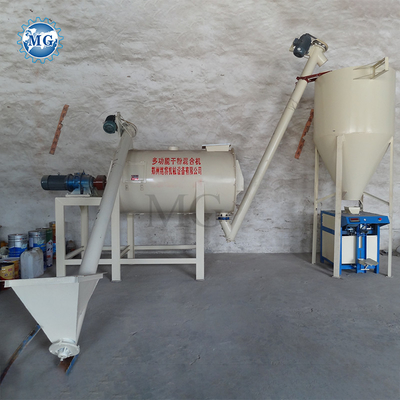

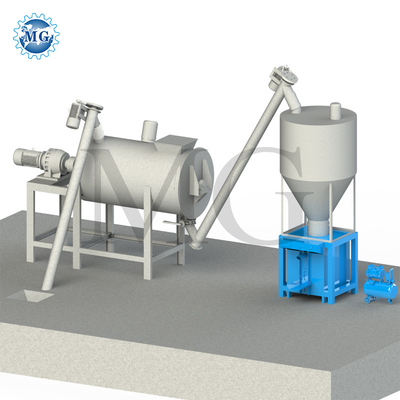

Our simple dry mix powder mortar production line include a loading screw conveyor machine, a ribbon mixer machine, a second screw conveyor machine, a finished product hopper, one or two valve type packing machine, a air compressor machine, a electric control cabinet, etc.
Firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor,secondly, several kinds of raw material will be mixed by the multi ribbon screw mixer, thirdly,the mixed material will be transported into the end product silo by second screw conveyor, fourthly, the finished product will be packed into bags by packing machine.
5. Raw Materials of Dry Mix Powder Mortar Production Line.
Main material: sand, cement, gypsum, fly ash, limestone, calcium ash, vitrified micro bubbles, etc.
Additives: HPMC, citric acid, reinforcing agent, etc.
6. Application of Dry Mix Powder Mortar Production Line.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7. Our company.
Zhengzhou MG Industrial Co,.Ltd, one of the leading manufacturers of building material equipment in China, always provides the customers from all over the world with professional efficient solutions high quality machine, formula technology and special additives for more than 20 years. The main products of the company include dry mortar plant, thermal insulation mortar production line, sand dryer powder blending machine, impulse dust collector, automatic packing machine, and so on.
MG products have been widely used in more than 1000 building materials enterprises in China, and exported to more than 50 countries, such as Canada, Russia, Korea, Malaysia, the United Arab Emirates, Argentina, Chile, Ecuador, Morocco, South Africa, Nigeria, etc. MG will be willing to work with you to seek common development and create brilliance.
8. FAQ
1. What product can this production line make?
A: Our automatic dry mortar production line can make all kinds of dry mortar, such as wall putty, plaster, skim coat, ceramic tile adhesive, and so on.
2. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after sales services, life time technical support etc.
5. What is the capacity of your dry mortar plant?
A: We have dry mortar plant capacity from 3-30T/H as your requirement, And also we can customize the machine for you.
6. Can you install the dry mortar plant in my country?
A: Yes. All of our engineers have passports. We can send experienced engineers to the customer's site to guide equipment installation, debug the production line until it is put into production, we will also provide installation instructions, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation steps drawings we provide, and we can also guide the installation with online videos.
7. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
