China CE Certificate New Product Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine
1. Description Of MG Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine:
MG tower type Wall tile adhesive machine tile adhesive making machine is arranged from top to bottom according to the production process, the production process is smooth, the product variety is large, and the cross-contamination of raw materials is small. It is suitable for the production of ordinary mortar and various special mortars. In addition, the entire production line covers a small area, has a outward appearance, and has relatively low energy consumption.
The production process of MG Tower type Wall tile adhesive machine is as follows. The wet sand is dried by a three-pass dryer, and then conveyed to the classification sieve on the top of the tower through a plate chain bucket elevator. The classification accuracy of the sieve is as high as 85%, which facilitates fine production and stable efficient. The number of screen layers can be set according to different process requirements. In general, four types of products are obtained after the classification of dry sand, which are stored in four raw material tanks at the top of the tower. The cement, gypsum and other raw material tanks are distributed on the side of the main building, and the materials are conveyed by the screw conveyor.
2. Configuration of MG Full automatic wall tile adhesive machine:
| No. |
Name |
Function |
| 1 |
Raw material storage silo |
Store the raw materials |
| 2 |
Screw conveyor |
Conveying raw material from silo to weighing hopper |
| 3 |
Weighing hopper |
Weighing the raw material from silo as formula requirement |
| 4 |
Bucket elevator |
Lift raw material from ground to silos and premix hopper |
| 5 |
Premix hopper |
Storage one batch raw material above mixer |
| 6 |

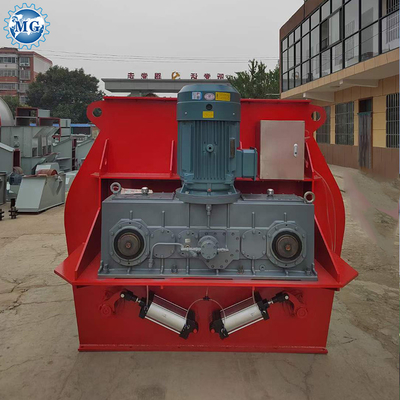

Mixer |
Mixing raw material uniformally |
| 7 |
Finish prouduct bin |
Storage one batch finish product for packing |
| 8 |
Auto packing machine |
Packing the product into bags |
| 9 |
Dust collector |
Collecting the dust when machine production |
| 10 |
Steel platform |
Two layers or three layers high strength platform for the machines |
| 11 |
Air compressor |
Providing pressing air to machines and air cylinders |
| 12 |
PLC Control cabinet |
Control the complete set machine start and stop automatically
|
3. Advantage of MG Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine:
1. Low energy consumption and high production efficiency.
2. Less waste of raw materials, no dust pollution, and low failure rate.
3. And because of the structure of the raw material silos, the production line occupies 1/3 area of the flat production line.
4. Parameter of MG Full Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine :
| Model |
2000L Mixer mixing plant |
3000/4000L Mixer mixing plant |
6000L Mixer mixing plant |
| Capacity |
10-12T/H |
15-30T/H |
30-40T/H |
| Machine height |
8-9m |
9-10m |
11-12m |
| Total power |
80-90KW |
90-100KW |
100-120KW |
| Worker required |
2-3 person |
3-4 person |
3-4 person |
| Workshop required |
500-600m2 |
600-800m2 |
800-1000m2 |
| Bag belt conveyor |
B500X3500mm |
B500X3500mm |
B500X3500mm |
| Pallet wrapping machine |
Provide as requirement |
Provide as requirement |
Provide |
| Sand dryer |
Provide as requirement |
Provide as requirement |
Provide as requirement |
| HS code |
8474390000 |
8474390000 |
8474390000 |

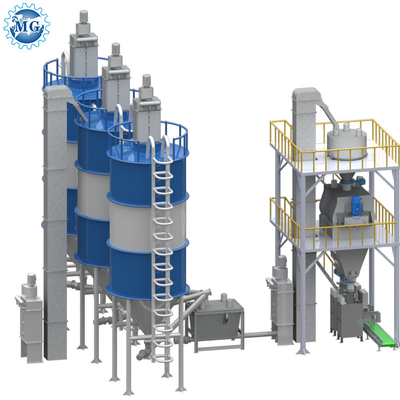

5. Flow chart drawing of MG Full Automatic Tile Adhesive Machine Tile Adhesive Making Machine:

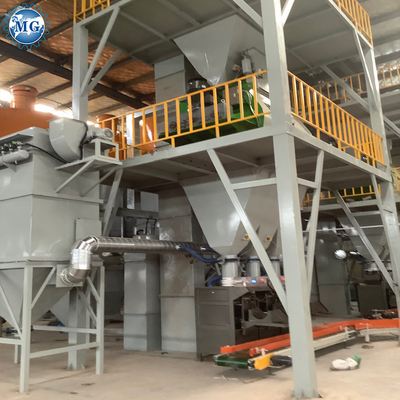

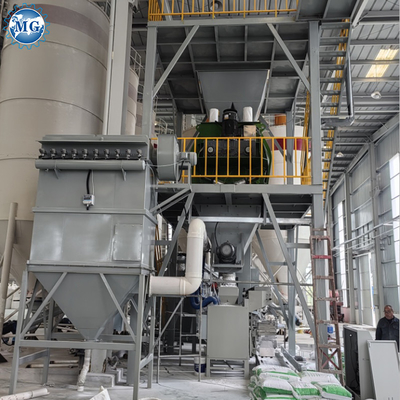

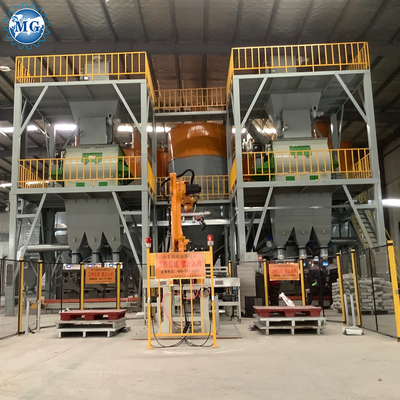

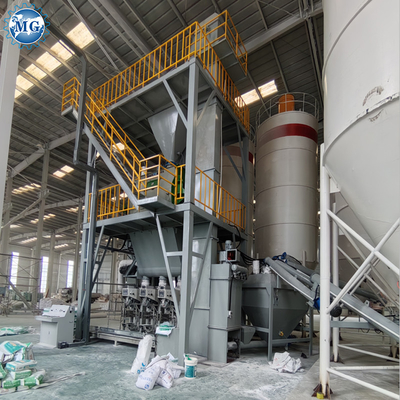

6. Customer working site of MG Full Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine:
7. Application of MG Automatic Wall Tile Adhesive Machine Tile Adhesive Making Machine:
MG automatic tile adhesive machine can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, tile glue, anchorage mortar etc.
Decoration mortar: Decorative plaster, Thin set coating, inner and outer wall putty, Screed mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, AAC jointing mortar, dry sand mixture, repair mortar, mildewproof mortar, shielding mortar etc.
8. Why choose us:
» The structure we designed is advanced and compact. According to your site and capacity, we can provide you reasonable design with factory price.
» Cooperated with Germany Wacker Company,then we supply advanced construction materials formula and top rank additives together to ensure the end products good quality you produce.
» Our professional installation team has rich experience to complete the installation, commissioning fast, and also to train workers how to operate, maintain the equipment.
» As a professional and highly experienced manufacturer of dry mortar mixing equipment in China for more than 20 years. We are in the leading position in this scopes.
9. FAQ:
1, Q: We have never been engaged in mortar production, don't have experience, and do not understand mortar production lines. Can you provide technical and process guidance?
A: Yes, we have rich experience in mortar production process and production line technology, and we will customize the production plant according to your needs and provide a full range of project guidance. We can design the Production Line Layout and Site Planning according to the size of your work shop, and provide technical support for mortar formulas.
2, Q: Are you a Factory, a Design company, or a Trading company?
A: We are a factory with our own mechanical design engineers and project design engineers, and have a production workshop of 10,000 square meters.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
3. Q: Can I visit your factory?
A: Welcome to visit our factory, we can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
If you want to know more of our dry mortar manufacturing machine, please send us inquiry or contact us directly.
