Product Details:
|
| Product Name: | Tile Adhesive Machine Tile Adhesive Making Machine | Application: | Cement Sand Chemical Mix And Packing To Be Dry Mortars |
|---|---|---|---|
| Total Power: | 80-200KW Based On Configuration | Installation Service: | We Send Engineer To Oversea For Guiding Installation |
| Workshop Height: | 9-12m | Mixer Type: | Twin Shaft Paddle Mixer Or Plough Share Mixer |
| Control System: | Intelligent PLC And Computer Control | Motor: | CE Certificate Good Quality Motor |
| Additive Dosing: | Automatic Dosing | Service Provided: | Turnkey Project Of Working Site Planning/dry Mortar Machines/formula/ Machine Assemble |
| High Light: | Full Automatic Tile Adhesive Making Machine,Tile Adhesive Making Machine 200 KW,Intelligent PLC Tile Adhesive Machine |
||
Full Automatic Tile Adhesive Machine Tile Adhesive Making Machine Hot Sale
1. Description Of MG Automatic Tile Adhesive Machine Tile Adhesive Making Machine:
MG Tile adhesive machine tile adhesive making machine is a new type of high-efficiency mixing equipment, which is widely used in putty paste, real stone paint, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractories, etc. industries. The main mechanism of the horizontal ribbon mixer is the shearing effect of the ribbon. Through the high-speed rotation of the mixing shaft, the horizontal multi-spiral belt mixer enables the inner and outer spiral belts to turn the material in a larger range. Through the above-mentioned movement, the materials are quickly and uniformly mixed in a short time.
2. Parameter of MG Full Automatic Tile Adhesive Making Machine:
| Model | 2000L mixing plant | 3000/4000L mixing plant | 6000L mixing plant | 10000L mixing plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Bag belt conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet wrapping machine | Provide | Provide | Provide | Provide |
| Sand dryer | Provide as requirement | Provide as requirement | Provide as requirement | Provide as requirement |
| HS code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
3. 3D drawing of MG Tile Adhesive Making Machine:
4. Configuraton of MG Tile Adhesive Making Machine:
MG Tile adhesive making machine working process: First the raw material is put into the feed hopper according to mixture ratio, and then, through the action of control system, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging.
5. Advantage of MG Automatic Tile Adhesive Making Machine:
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The ingredients are accurate, can automatically calculate the error and automatically correct.
3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5, The control system man-machine dialogue is simple and easy to operate.
6. With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.

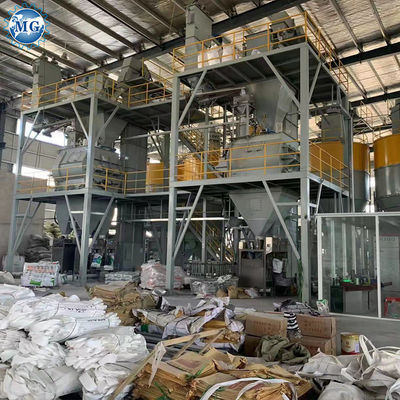

6. Customer working site of MG Full Automatic Tile Adhesive Making Machine:
7. Application of MG Automatic Tile Adhesive Making Machine:
MG automatic tile adhesive making machine can be used to produce the following dry mortars:
8. FAQ:
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference. Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant ?
A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
3, How many person required to operate this dry mortar plant ?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and services you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
5, What is the area required for this dry mortar plant ?
A: According to the capacity of the dry mortar plant, the area required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar plant ?
A: It is between 20-160KW based on apacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
10, If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
