Factory Sale Dry Mix Powder Mortar Plant Sand Cement Mixer Wall Putty Ceramic Tile Adhesive Making Machine
|Raw Material:||Sand,Cement,Gypsum,etc||Application:||Dry Powder Mixing|
|Capacity:||10-50 T/h||Color:||Grey/White/Blue Or Customized|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Packaging:||10-50kg/bag Automatic Packing Machine|
Automatic Dry Mix Mortar Production Plant,
Ceramic Tile Adhesive Mortar Production Line,
800m2 Dry Mix Plant

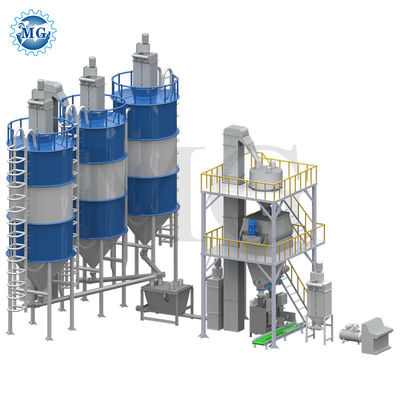

Automatic Ceramic Tile Adhesive Dry Mix Mortar Production Line
1,Description of Automatic Ceramic Tile Adhesive Dry Mix Mortar Production Line.
The MG automatic dry mortar production line is an automatic powder mixing equipment. The proposed mixing station consisting of a combination of a twin-shaft mixer and a batching system can fully utilize the advantages of the batching system and the mixer. The operation is simple and convenient. The Chinese and English menus show that the status of each device is simulated and displayed with an audible and visual alarm. When working at the mixing station, after only a small number of buttons are operated, the entire work process is transferred to the computer control.
2.Advantages of Automatic Ceramic Tile Adhesive Dry Mix Mortar Production Line.
1, A high degree of intelligence. It is controlled by the control system with program and realizes total automation of automatic batching,automatic weighing, automatic feeding, automatic mixing and automatic packing.
2, The design of tower layout structure, shorten the transportation distance and increases the production capacity.
3. The use of agravic biaxial mixer has high mixing uniformity, and materials with large differences in physical properties particle size and shape do not easily segregate when mixed.
|Model||Capacity||Equipment height||Total power||Worker required||Workshop required|
|2000L Mixer||10-12T/H||8-10m||80-90KW||2-3 Person||500-600m2|
|3000L Mixer||15-20T/H||10-14m||90-100KW||3-4 Person||600-800m2|
|4000L Mixer||20-30T/H||10-14m||100-120KW||3-4 Person||600-800m2|
|6000L Mixer||30-50T/H||15-20m||100-120KW||3-4 Person||800-1000m2|
|10000L Mixer||50-80T/H||20-25m||120-150KW||3-4 Person||1000-1200m2|
3. Raw Material of MG Ceramic Tile Adhesive Dry Mortar Production Line.
Raw materials are: Cement, Sand, Gypsum, Flyash, Gelatine powder, Cellulose and Additives etc.
4. Application of MG Ceramic Tile Adhesive Dry Mortar Production Line.
Applications of dry mortar production line The simple dry construction mixture mixing plant can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
5. Configuration of MG Ceramic Tile Adhesive Dry Mortar Production Line.
1,Raw Material Storage Silo:
The silo is used to store dry building raw material powder, such as sand, cement, fly ash, slag, calcium carbonate powder and so on. MG standard silos will equips level regulars, air breaking device, e-dust collector, pressure safety valve and complete set of assemble accessories. When material feeding air breaking device can help air exhausting from silo inside, e-dust collector clear the dust on the top; Level regulars can detect the maximum and minimum of material in hopper, so that to remind people feed material timely; Safety valve is to prevent material discharge easily. Material can discharge quickly when it works with screw conveyor.
This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.
3, Automatic weighing system.
This is an automatic batching system that greatly saves manpower and material resources. Machine around equips three S-type sensors, which can get exact value when machine running. Input the weight of each raw materials accordingly to the formulation, high precision, reduce weighing error,save labor cost, improve the output.
4,Twin shaft agravic paddle mixer.
This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
5,Automatic packing machine.
The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.
6,Pulse dust collector.
The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.
PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products
1. What is the capacity of your automatic dry mortar production line?
A: We have dry mortar production line capacity ranges 3-50T/H as your requirement, And also we can customize the production line for you.
2. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simple dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-50 t/h automatic dry mortar production line need 3-4 workers.
3. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.
4.What kind of dry mortar can this production line make?
A: Our simple dry mortar production line can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,masonry mortar,and so on.
5.Can you install the production line for us?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
6.What is your Payment Terms?
A: We usually accept T/T, LC. T/T: 30% deposit in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
