Product Details:
|
| Features: | Energy- Saving | Place Of Origin: | Henan, China (Mainland) |
|---|---|---|---|
| Brand Name: | MG | Voltage: | 220V/380V/410V/440V Or Customized |
| Weight: | 800kg | Manpower: | 2-3 People |
| Driven: | Electric Driven | Predominance: | We Are Specialized Manufacturer |
| Plant Automatic Grade: | Automatic+ Manual System | Material: | Carbon Steel |
| High Light: | MG Automatic Dry Mortar Mixer,3T / H Tile Adhesive Equipment,Carbon steel Tile Adhesive Dry Mortar |
||
Automatic Manual Dry Mortar Mixer Machine High Capacity 3T / H Tile Adhesive Equipment
Deccription of Simple Tile Adhesive Equipment
On the basis of multi-spiral ribbon dry mortar mixing machine, this dry mortar mixing machine adds a secondary lifting screw conveyor, finished product hopper and automatic valve packaging machine, which form a complete set of simple dry mortar production line from material feeding, automatic mixing, filling and packaging production process.
| Model | MGDM-3.0 |
| Capacity | 3-4T/H |
| Worker Required | 2-3 Person |
| Total Power | 20kw |
| Total Weight | 3T |
| Overall Dimension | 6000*3000*3200mm |
| Transporation | 1 no.20 feet container |
What is dry mortar:
Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in job-site.
Raw material of dry mortar:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
The advantages of the Simple Tile Adhesive Equipment :
This model mixer can stop the main motor of the mixer when discharging, so as to save the electricity consumption. We assume that every batch takes 10 minute as a circle.
Every batch save electricity: motor 7.5kw*10minutes =1.25kw
every day produce 10 batch total save electricity: 1.25kw*10=12.5kw
so that every year saving electricity: 12.5*300 days=3750kw
We assure 1RMB/kw so that it can save RMB3750 every year.
Main technical parameters
| Item | Mixing motor(kw) | Hoist Motor (kw) | Production capacity (KG/Time) |
Capacity (t/h) |
Dimension(mm0 | Barrel Dia(mm) |
| MG300 Type | 2.2 | 3 | 300 | 0.5-1 | 2200*700*1500 | Φ700 |
| MG500 Type | 5.5 | 3 | 500 | 1-1.5 | 3000*800*2000 | Φ800 |
| MG1000 Type | 7.5 | 3 | 1000 | 2-3 | 3300*1050*2100 | Φ1050 |
| MG1500 Type | 11 | 3 | 1500 | 3-4 | 3300*1050*2100 | Φ1050 |
| MG2000 Type | 11 | 4 | 2000 | 4-5 | 3680*1200*2000 | Φ1200 |

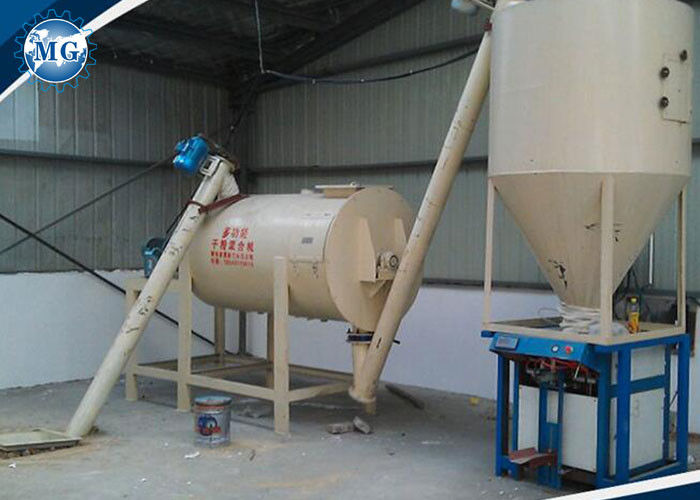

The MGDM-1.0 Improved Simple Tile Adhesive Equipment in factory:
The inner structure of MGDM-1.0 Improved Simple Tile Adhesive Equipment:
Application of MG Simple Tile Adhesive Equipment:
The dry mortar production line can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
We are the integrated solution supplier of dry mortar production line( professional manufacturer over 20 years), provide you quality verified equipment, formula process, raw material of additives, and good after-sales services.
Escort for your success!
