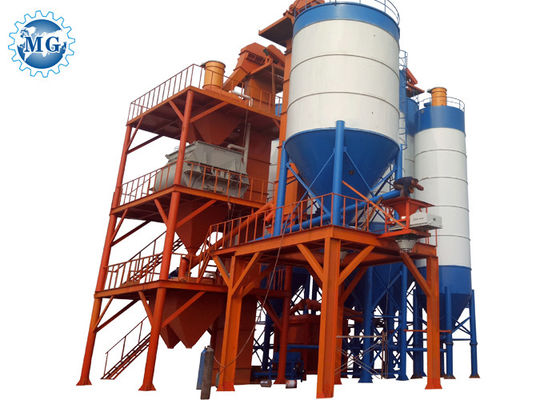

New Type Tile Adhesive Making Machine Tile Grout Making Machine

China Zhengzhou MG New Type Tile Adhesive Making Machine Tile Grout Making Machine

1. Description Of MG Automatic tile adhesive making machine:

Tile adhesive machine (or tile adhesive making machine) is a set of machinery that produces dry mortar for construction industry and other uses. It is mainly composed of elevator, premix weighting bin, stock bin, mixing engine, finished product warehouse, packer, dust collector and electric control cabinet. Sand drying and screening equipment can be added according to customer's different requirements.

2.  Parameter of MG Full Automatic Tile Adhesive Makinig Machine:



Model	2000L mixing         plant	3000/4000L           mixing plant	6000L mixing        plant	10000L mixing       plant
Capacity	10-12T/H	15-30T/H	30-40T/H	50-60T/H
Machine height	8-9m	9-10m	11-12m	13-15m
Total power	80-90KW	90-100KW	100-120KW	120-150KW
Worker               required	2-3 person	3-4 person	3-4 person	3-4 person
Workshop           required	500-600m2	600-800m2	800-1000m2	1000-1500m2
Bag belt             conveyor	B500X5000mm	B500X5000mm	B500X5000mm	B500X5000mm
Pallet                 wrapping           machine	Provide	Provide	Provide	Provide
Sand dryer	Provide as          requirement	Provide as requirement	Provide as requirement	Provide as requirement
HS code	8474390000	8474390000	8474390000	8474390000

3. Flow Chart Drawing of MG Full Automatic Tile Adhesive Making Machine:

4. Configuration of MG Automatic Tile Adhesive Making Machine:

(1) Raw Material Detachable Storage Silos, 60T/100T silo

(2) Bucket elevator, TD300, Capacity 15T/H

(3) Automatic weighing system, 2m3

(4) High efficiency twin shaft paddle mixer, 2m3/3m3/4m3/6m3

(5) Finish product hopper, 2m3/3m3/4m3/6m3

(6) Atuomatic filling and packing machine, 2sets/3sets, Capacity 5-8T/H.

(7) Impulse dust collector, MG12 type, One set for bucket elevator, one set for packing machine place.

(8) PLC control cabinet system

5. Application of MG Automatic Tile Adhesive Making Machine:

MG automatic tile adhesive making machine can be used to produce the following dry mortars:

7. Customer Visting Zhengzhou MG For the tile adhesive making machine:

8. FAQ:

1, How about the investment of this project?

Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

(1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many people required to operate this dry mortar mixing equipment ?

Usually 2-3workers are enogh to operate thisfull automatic tile adhesive mortar production line.

4, What equipment and service you can provide?

We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.

5, What is the area required for this dry mortar mixing equipment ?

According to the capacity of the full automatic tile adhesive mortar production line, the area required 120-150 m2.

6. Can you install the dry mortar plant in my country?

Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.

If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
