Product Details:
|
| Produce Name: | Sand Drying Machine | Capacity: | 3-5T/H, 5-8T/H, 10T/H 20T/H |
|---|---|---|---|
| Fuel: | Coal, Gas Or Diesel | Burner: | Italy Famous Brand |
| Color: | Customized | After-sales Services: | Engineer Available To Service Machinery Overseas |
| Warranty: | 12 Months | Voltage: | 380V, 415V, 440V Or Customized |
| Total Power: | 20-50 KW | Advantage: | 20 Years Manufacturer, Mature Technology |
| Highlight: | 20T/H Industrial Sand Dryer Machine,10T/H Industrial Sand Dryer Machine,Sand Dryer Machine With Burner |
||
Industrial Three Cyliner Sand Dryer Machine Manufacturer with Burner of Gas Diesel Coal
Product Description of MG Three Cylinder Sand Dryer :
MG Three-cylinder Rotary Dryer is composed of three concentric cylinders with different diameters. The special three-cylinder structure makes the inner cylinder and the middle cylinder surrounded by the outer cylinder to form an own thermal insulation system. The heat emitted from the surface of the inner cylinder and the middle cylinder is involved in the heat exchange of the materials in the outer cylinder, and the outer cylinder is at the low temperature end of the hot gas flow, so the heat dissipation area and heat loss of the cylinder are significantly reduced. Energy-saving three-cylinder dryer can make full use of waste heat, reduce heat loss, increase the heat exchange area.
MG dryer is mainly used for drying river sand, yellow sand, silica sand, quartz sand, mechanism sand and various specifications of sand, slag, limestone,coal ash, clay and so on.
Technical Parameters of widely used rotary sand dryer:
|
Specifications of three pass river sand drum rotary dryer
|
||||
|
Type of Three Pass Dryer |
TDS623
|
TDS625
|
TDS6210
|
TDS6220
|
|
Drying capacity
|
3-5t/h
|
6-8t/h
|
10-15t/h
|
20-25t/h
|
|
Length
|
2200mm
|
2500mm
|
2700mm
|
5000mm
|
|
Diameter of drum
|
1750mm
|
2200mm
|
2600mm
|
2600mm
|
|
Motor powder
|
4kw
|
5.5kw
|
7.5kw*1
|
7.5kw*2
|
|
Reducer model
|
XWD-5
|
XWD-5
|
ZQ350
|
ZQ350*2 |
|
Speed of drum rotation
|
4-10r/min
|
4-10r/min
|
4-10r/min
|
4-10r/min
|
|
Moisture of end products
|
<1%
|
<1%
|
<1%
|
<1%
|
|
Max.temperature inside
|
700-750℃
|
700-750℃
|
700-750℃
|
700-750℃
|
|
Outlet temperature
|
60-80℃
|
60-80℃
|
60-80℃
|
60-80℃
|

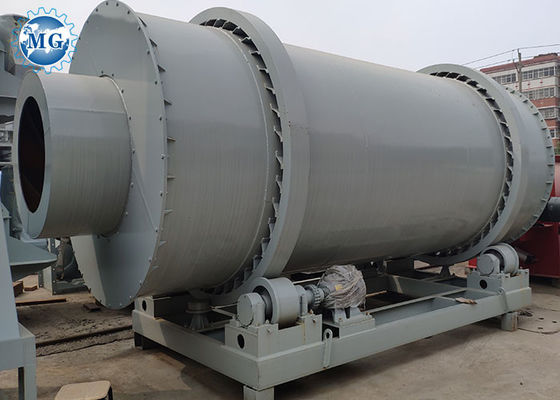

MG Three cylinder rotary dryer machine in workshop:

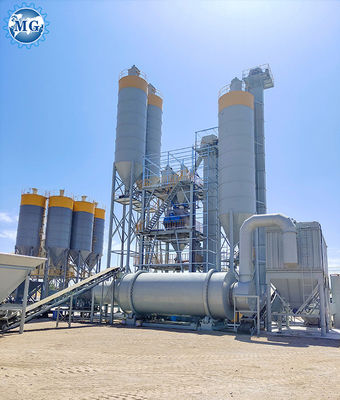

Working Site of MG Sand Dryer Machine:
Company development history of MG Sand Dryer Plant:
Rotary Sand Dryers are one of the typical applying area of rotary dryers due to its reliable performance, high efficiency and low manufacturing cost. Our factory has been making rotary dryers for drying sand since 1980s. Back then only single-pass rotary dryers were available for all drying processes. As entering 21st century, all industries facing more and more environmental challenges and higher demand for energy efficiency. Our factory started to R &D Triple-pass Rotary Sand Dryers in 2002, which now has basically replaced conventional single-pass rotary dryer in sand drying plants.
Loading Pictures of MG Sand Dryer Machine:
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry and visiting!
