Product Details:
|
Name: | Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine | Weight: | 25T |
---|---|---|---|
Power: | 89kw | Dimension: | 8000X8000X8000mm |
Packing: | 6s/bag | Certificate: | CE ISO9001:2008 |
Advantage: | 20 Years' Professional Experience | Spare Parts: | Provided |
Highlight: | 30 T/H Ceramic Tile Adhesive Machine,20TPH Ceramic Tile Adhesive Machine,30 T/H Wall Putty Making Machine |
Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine
1. Description of MG Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine:
MG automatic Dry mortar Plant has advantages of consistent quality, automatic control, time and labor costs saving. By adding different chemical additives, it has fine properties of bond, thermal and acoustic insulation, crack-resistance, work ability, water-retention, wear-proof, anti-corrosion, etc.
MGDM-3.7 Automatic dry mortar plant is used for producing dry mortar with capacity of 10-30t/h, Which is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-36 thousand tons per year depend on the system configuration.
2. Working principle of MG Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine:
The dry mortar mixer machine for tile adhesive will dosing the raw materials of cement, sand from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a shortperiod(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, ther down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transfered to finished mortar area, ready fo sale.
3. Configuration of MG Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine:
Raw material silos : cement,sand, caco3a and some additives
Feeding screw: the speed can by controlled by frequency converter
Quantity dosing system: auto-dosing all raw material accurately
Mixing system: double-shaft paddle mixer ,plough mixer ,ribbon mixer or others
Packaging machine: valve-bag packing machine,open-mouth bag packing machine and others
Dust collecting system: installed at the position of feeding port, packing port
Automation control system: PLC+TOUCH SCREEN
4. Technical parameter of MG full Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine:
Model | 2000L mixing plant | 3000L/4000L mixing plant |
Capacity | 10-12T/H | 15-30T/H |
Total power | 80KW | 100KW |
Workshop Area | 500-600m² | 700-800m² |
Worker Required | 2-3person | 3-4person |
5. Application of MG full Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine:
MG automatic dry mortar plant can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

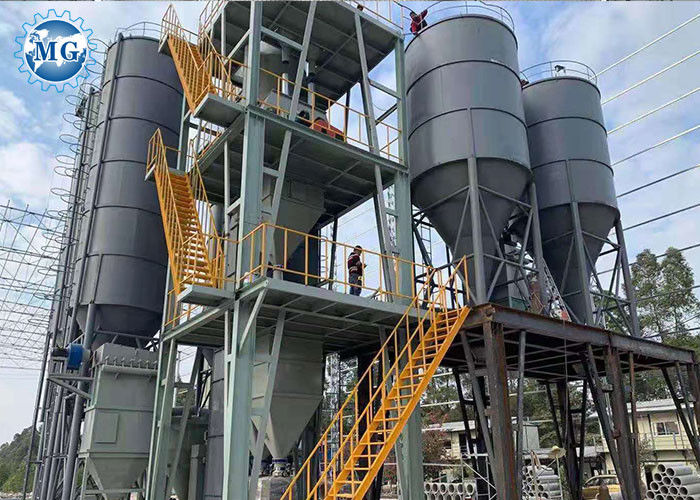

6. Full Automatic Dry Mortar Mixing Plant Ceramic Tile Adhesive Putty Making Machine installed in foreign countries:
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic Dry Mortar Mixer Machine!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
8. Why choose us:
1.Best Mixing System
As one of the dry mortar production line manufacturer, Zhengzhou MG equips the plant with the most mixing system, drying system and weighing system to keep the operating process smoothly.
2.Accurate Weighing System
3.High-efficiency Drying System
4.Dust-removal System
With double dust removal systems, primary cyclone dust removal system plus the secondary bag filter structure will lower the air pollution to the lowest lever.
5.Packing System
Zhengzhou MG designs flexible packing system, users can choose the most appropriate one to meet their own needs.
6.Intelligent Full-automatic Control System
The plant is with intelligent and humanized full-automatic computer control system, which makes it easier to operate.
With stronger structure made of H type steel and lower noise pollution.
