Product Details:
|
| Product Name: | Tile Adhesive Batching Plant | Model: | MGDM-3.7 |
|---|---|---|---|
| Capacity: | 10-30T/H | Certification: | CE, BV, ISO9001:2008 |
| End Products: | Tile Adhesive, Tile Glue, Wall Putty | Packing Machine: | Valve Port Packing Machine |
| Advantage: | Full Automatic And Intelligent | Installatin: | 1 Year |
| High Light: | 20T/H Tile Adhesive Machine,Automatic Weighing Tile Adhesive Machine,10T/H Dry Mortar Batching Plant |
||

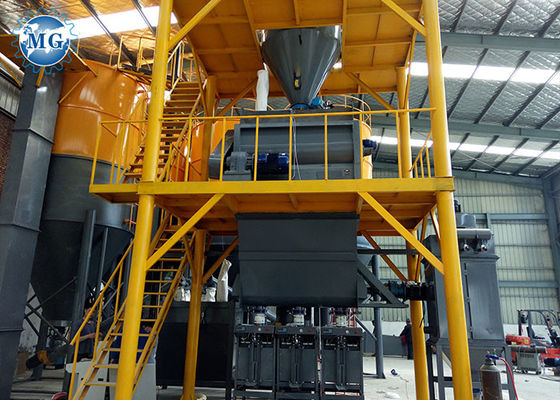

10-30 T/H Dry Mortar Tile Adhesive Mixing Batching Plant
1. Description Of MG Automatic Dry Mix Mortar Plant:
MG Dry mortar plant is a set of equipment that is designed to mix dried sand, cement, thickening powder, fly ash, and other functional additives together according to different recipes. The plant produces bagged or bulks dry mortar, which can be applied directly after mixed proportionally into the water and stirred for a while.
The Production Capacity You Can Choose
A) 3t/h dry mortar production line
B)4-5t/h dry mortar production line
C)6-8t/h dry mortar production line
D)10-12t/h dry mortar production line
E)20-25t/h dry mortar production line
F)30t/h dry mortar production line
G)40-50t/h dry mortar production line
2. Configuration Of MG Full Automatic Dry Mix Mortar Plant
Electric control cabinet; Cement silo, Weighing system; Feeding hopper; Impulse dust collector; Bucket elevator; Premix tank; Twin shaft agravic mixer; Finished product holding tank; Automatic packaging machine; Air compresser.
It can be equipped with grinding machine and drying machine according to requirement.
3. Parameter of MG Full Automatic Dry Mix Mortar Plant:
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
4. Advantage of MG Automatic Dry Mix Mortar Plant:
(1)There are several materials discharging modes for selecting, which include the manual mode, electrical mode and pneumatic mode.
(2)The fiber can be rapidly separated by the high speed rotating blades.
(3)The air-phase balancing device is installed to mix the materials more even.
(4)The compound structure of paddles can largely reduce the cost of maintenance.
(5)The materials are discharged through the big gate, which can reduce the blind areas inside the mixer, make the discharging procedure cleaner and faster.
(6)It can mix the solid-solid (powder and power) and solid-liquid (powder and liquid), and also take drying operation.
(7)The speed of mixing is fast, it only takes about 2-3 minutes to mix the ordinary powders.
(8)The machine can be operated in confined space, which is running reliably and convenient in maintenance.
5. Application of MG Automatic Dry Mix Mortar Plant:
The dry mortar production line can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
6. Factory and Workshop
7. Packing and Delivery
8. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mix mortar plant!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
9. Why Choose Us
