construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing

construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing
construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing
construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing

Large Image :  construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing

Product Details:
Place of Origin: Henan, China
Brand Name: MG
Certification: CE BV ISO 9001:2008
Model Number: MGDM-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advance payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Sets/Months

construction 10-30 T/Hour Dry Mix Plant Automatic Feeding And Packing

Description
Name: Dry Mix Mortar Plant Voltage: 220V-440V Or Customized
Worker Required: 3-4 Person Condition: New
Mixer Type: Twin Shaft Mixer Advantage: 20 Years' Professional Experience
High Light:

30 T/Hour Dry Mix Plant

,

Automatic Packing Dry Mix Plant

,

30 T/Hour dry mix mortar plant





10-30 T/H Dry Mix Mortar Plant



1. What is Dry mortar:



Dry Mix Mortar is amongst the most versatile material used in modern construction industry. It serves to lay bricks & other masonry blocks, coat building as renders & skim coat & fix tiles. Now a days all Indian & Foreign construction Industries are demanding for new improved building material. The modern Dry Mix Mortar are produced in a special factory with dedicated facilities on batching & blending of all the necessary ingredients in highly-controlled process. In this way, different types of Dry Mix Mortar products with well-defined properties & performance to meet specific requirement and application can be produced. Today the Dry Mix Mortar is conquering the market by replacing the traditional job site mixing mortar because of its various advantages.

It is mixed raw materials in dry form that is made by mixing sand, cement, mineral, and functional additives together proportionally. This process is commonly conducted by a dry mortar mixing machine. According to its usage, dry mix mortar falls into three types, colored powder coating, adhesive, and road or ground repair and hardening materials.



2. Description Of MG Automatic Dry Mix Mortar Plant :



MG Dry Mix mortar plant is a set of equipment that is designed to mix dried sand, cement, thickening powder, fly ash, and other functional additives together according to different recipes. The plant produces bagged or bulks dry mortar, which can be applied directly after mixed proportionally into the water and stirred for a while.



3. Mechnical principle of MG Automatic Dry Mix Mortar Plant:



The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.

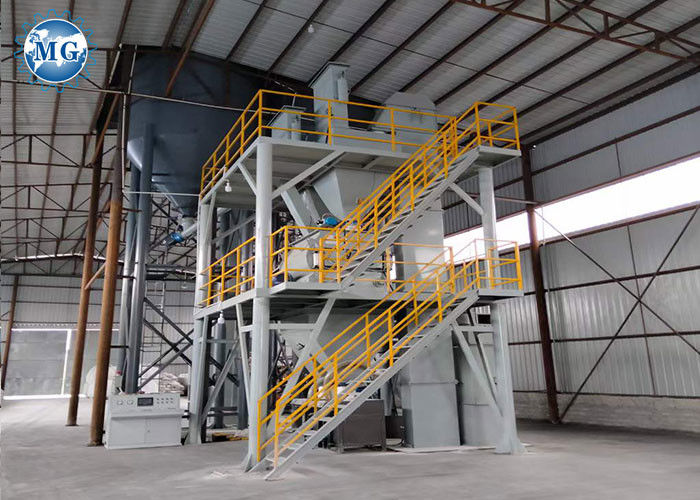

Dry mix mortar plant



4. Configuration Of MG Full Automatic Dry Mortar Tile Adhesive Production Line:



1. Aggregates storage bins, powder materials silos.

2. Screw conveyors, weighing scales

3. Bucket elevators

4. Full automatic batching system

5. Pre-mixing bin

6. Mixer(Installed with triaxial mixing vanes)

7. Finished products storage bins

8. Packaging system (Open gate/valve-gate type packing machine)

9. Dust removal system(impulse type)

10. Control system to inspect the level of powder materials

11. Steel frame, platform, ladder stand, barrier

12. Main control system

13. Air compressor system: The central air compressor

14. The gas phase equilibrium system

15. Bulk materials storage system: finished mixture tanks, bulk machine.

16. Drying system

17. Alarm system



5. Features of MG Automatic Dry Mortar Tile Adhesive Production Line:



1.It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.

3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.

4. We can provide one-stop service from design to installation according to our customers' specific requirement.

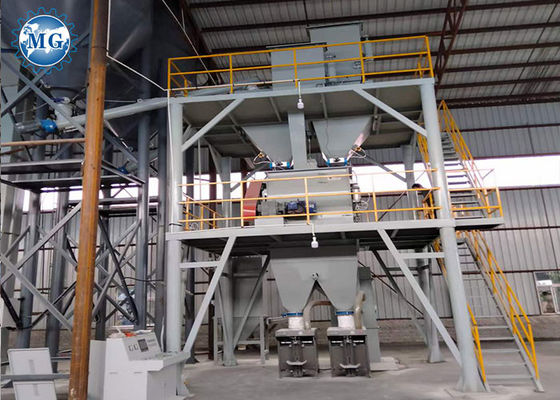

dry mix mortar plant



6. Parameter of MG Full Automatic Dry Mortar Tile Adhesive Production line:

Model 2000L Mixing plant 3000/4000L Mixing plant 6000L Mixing Plant 10000L Mixing Plant
Capacity 10-12T/H 15-30T/H 30-40T/H 50-60T/H
Machine Height 8-9m 9-10m 11-12m 13-15m
Total Power 80-90KW 90-100KW 100-120KW 120-150KW
Worker Required 2-3 person 3-4 person 3-4 person 3-4 person
Workshop Required 500-600㎡ 600-800㎡ 800-1000㎡ 1000-1500㎡
Bag belt Conveyor B500X5000mm B500X5000mm B500X5000mm B500X5000mm
Pallet Wrapping Machine Provide Provide Provide Provide
Sand Dryer Provide As Requirement Provide As Requirement Provide As Requirement Provide As Requirement
HS Code 8474390000 8474390000 8474390000 8474390000



7. Application of MG Automatic Dry Mortar Tile Adhesive Production Line:



MG automatic dry mortar plant can be used to produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.



8. Our Factory

dry mix mortar plant



9. Packing and delivery

dry mix mortar plant packing





10. Our Company



Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!



Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.



Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.



Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.



11. Our Service:



1) Unpon got your inquiry, We will reply to you in 24 hours.

2) Assist clients to prepare for the first construction scheme and supply foundation drawing.

3) Oversea installation and provide technical exchange, train client to operate the machine.

4) Supply spare and accessory parts at favorable price for long-term.

5) Spare part are original, authentic, good quality, can be avaible from stock, and sent to client, immediately by DHL, EMS, Fedex, and by air, gurantee client to receive it in shortest time. Strict site quality inspection system:

Installation captain inpection: Evaluate the installation level of dry mix mortar production line, Spot QA engineer inspection: Inspect the whole in installation process and key components.

Service engineer inspection: Inspect the debugging and running condition of whole production line.
