Product Details:
|
| Condition: | New | Warranty: | 24 Months |
|---|---|---|---|
| Dimension(l*w*h): | Seller's Final Confirmation | Capacity: | 1-3m3/h |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Online Support, Commissioning And Training | Discharging Height: | 3500mm |
| Installation: | Overseas Equipping Service, Under Our Engineer's Professional Guidance, Under Our Engineer's Guide | Weight: | 2t |
| High Light: | dry mortar mixer machine,dry mortar batching plant |
||

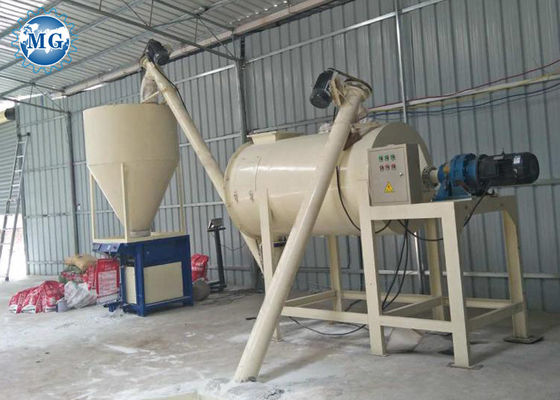

1 - 3m3/H Capacity Dry Mix Plant Wall Putty Powder Making Machine SGS
1.Product Application
It is designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine.It adopts the Twin-shaft Agravic mixer as its main mixing system. The well-mixed materials will go into the storage silo via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over 4 meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and packaging, hence, it may not merely save the time and energies but also may be more accurate. It required little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.
2. Product Parameter
| Main Parameters | |||||
| Model | MGDM3.0 | ||||
| Capacity | 3t/h | ||||
| Worker required | 2-3 person | ||||
| Total power | 17.6kw | ||||
| Total weight | 3.0T | ||||
| Overall dimension (L*W*H) | 6000*3000*3200mm | ||||
| Transportation | 1 no. 20"GP container | ||||
| Configuration List | |||||
| Name | Spc | Qty | Power(KW) | Total power (KW) | |
| Screw conveyor 1 | Φ165X3500mm | 1 | 3 | 3 | |
| Ribbon mixer | 1T/batch | 1 | 7.5 | 7.5 | |
| Screw conveyor 2 | Φ165X3500mm | 1 | 3 | 3 | |
| Storage silo | 1.5m³ | 1 | / | / | |
| Packing machine | Valve type | 1 | 3 | 3 | |
| Air compressor | 0.12m³ | 1 | 1.1 | 1.1 | |
| Control cabinet | Full set | 1 | / | / | |
3. Product Flowchart
4. Our Product Abroad
5. About Us:
6.Packing & Shipment
