|Features:||Automatic,High Efficiency,Semi-automatic,high Quality,vertical||Capacity:||10-15 T/h|
|Mixing Time:||3-5 Minutes||Product Name:||Tile Adhesive Machine|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Voltage:||220V, 380V Or Customized|
|Advantage:||Professional Manufacture||Man Power:||3-4 Person|
|Mixing Type:||Twin-shift Agravic Paddle Mixer||Color:||As Required|
tile adhesive manufacturing plant,
tile adhesive production line
Automatic Dry Mortar Plant Industrial Mixer Dry Mortar Plant for Tile Adhesive Powder Mixer

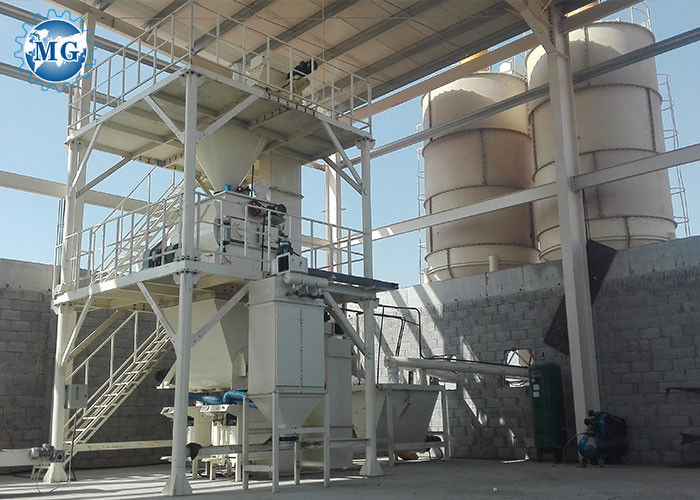

Descriptions of MG tile adhesive machine:
MG series tile adhesive machine is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system, packaging system, and dedusting system, etc
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution
Technical parameters of MG Automatic Tile Adhesive Machine:
|Model||Out put||Occupied area||Equipment Height||Manpower||Batching and packaging|
|Simple dry mortar plant||1-3t/h||20m2||3-4m||2-3 Person||
|Improved dry mortar plant||4-5t/h||20m2||3-5m||2-3 Person||
|Semi- auto dry mortar plant||6-8t/h||50-60m2||6-8m||3-4 Person||
|Automatic dry mortar plant||8-30t/h||60-100m2||8-13m||3-4 Person||
Detail configurations of MG Automatic Tile Adhesive Machine:
1) Raw Material Storing System and bucket elevator conveyor system:
Store raw materials such as cement, fly ash, thickened powder, quartz powder or yellow sand.
2) Automatic Weighing System :
Accurate weighing according to recipe requirements, small error, self-measurement error and repair, high precision.
3) Dust collector: Dust removal effect is good, fan, cloth cylinder and filter combination as a whole, can shorten the wind network, simplify the process, reduce equipment investment.
4) Twin Shaft Agravic Mixer : High mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer.
5) Finished product hopper: to store the finished material and prepare for the packing work, the ribbon mixer is to protect the finished material from segregation during the second falling.
6) Packaging Machine: accurate weighing, stable performance and simple operation. Equipped with dust mouth, truly environmentally friendly production.
6) Automatic PLC Control System
PLC control system with characters of High degree of intelligence, automatic control from the weighing of ingredients to the mixing, packaging and full control, easy to operate.
Zhengzhou MG Industrial Co.,Ltd is a professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry!
Contact Person: Mr. Jason
