Product Details:
|
| Production Capacity: | 4-30t/h | Manpower: | 1-3 People |
|---|---|---|---|
| Weight: | 6-7t | Driven Type: | Electric |
| Application: | Dry Mortar Production | Packaging Bag: | Plastic, Paper, Woven Bag |
| After-sales Service Provided: | 220V/380V/440V Or Customized | Voltage: | Engineers Available To Service Machinery Overseas |
| Advantage: | Professional Manufacturer For 18 Years | Color: | Blue, Gray, Red, Yellow Or Customized |
| High Light: | sand and cement mixing machine,dry mix mortar mixer |
||

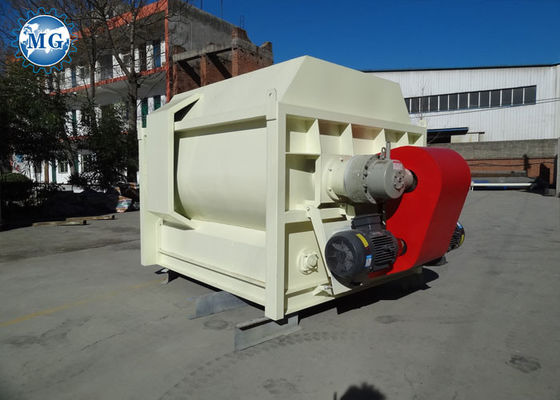

High Efficiency Carbon Steel Double Shaft Agravic Mixer for Building
Description of Double Shaft Paddle Mixer:
The Twin Shaft Agravic paddle mixer cylinder body of the mixer is equipped with biaxial reverse rotating blades, the blades of paddles will riling material along the axial and radial cycle. Fully using the the convective mixing principle, materials in the mixer are constantly throw and form flow layer,may lose weight instantly at the critical parabolic rotate speed so that the best mixing affect can be achieved, and also the violent turnover speed shortens the mixing time to a large extent. The machine is widely applied in the equipments of unitized mass production lines.
Working principle of dry mortar plant :
The Biaxial agravic dry mortar plant designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine. It adopts the Twin-shaft Agravic mixer as its main mixing system. The well-mixed materials will go into the storage silo via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over four meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and packaging, hence, it may not merely save the time and energies but also may be more accurate. It required little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.
Advantages of MG Double -Shaft Agravic Mixer:
1.High mixing speed, with high uniformity.
2.Little segregation When mixing different materials which has large difference in proportion,size and shape, ect.
3.This mixer equipped with fly cutters with high rotation speed, it can crush fiber- material, in short time efficiently.
4.Less electricity consumption per ton. it can reduce 66% energy, compared with ordinary multi-spiral conveyor.
5.Widely application: this mixer can be made of carbon steel, stainless steel and so on, according to customers requirement.
it's especially capable for mixing material with the requirement of high-precision proportion.
Parameters of MG Twin Shaft Agravic Mixer
| Model | MG 2000 | MG3000 | MG4000 | MG6000 |
| Discharge capacity (t/batch) | 1-1.5t/batch | 2-2.5t/batch | 3-3.5t/batch | 4-4.54t/batch |
| Mixer cylinder volume(m3) | 2 | 3 | 4 | 6 |
| Mixing time | 3-5min | 3-5min | 3-5min | 3-5min |
| Motor power | 18.5kw | 22kw | 37kw | 37kw |
| Shaft rotate speed | 43r/min | 43r/min | 43r/min | 43r/min |
| Coefficient of variation(CV) | <=5% | <=5% | <=5% | <=5% |
| Paddle blade quantity | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs | 2*14=28pcs |
| Overall dis(mm) | 2600*1600*1650 | 3000*1600*1650 | 3000**2200*2000 | 3000*2450*2200 |
Packing and Delivery of MG Double Shaft Agravic Mixer:
We are professional manufacturer of dry mortar equipment for 18 years, we always provide customer with turn-key services, including high quality machine, special additives, latest Germany or Japan formulation technology, installation and commissioning on site, consulting and updating equipment in machine lifetime.
You'll get professional and technical supporting from us when you choose us.
