Product Details:
|
| Inner Structure: | Biaxial Paddle Design | Material: | Carbon Steel |
|---|---|---|---|
| Warranty Period: | 12 Months | Efficiency: | >99% |
| Usage: | Dry Mortar Mixing | Weight: | 6-7t |
| Power(KW): | 18.5kw | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Motor Brand: | CE Certificate Motor | Formulation: | Provide |
| High Light: | cement concrete mixer machine,dry mix mortar mixer |
||

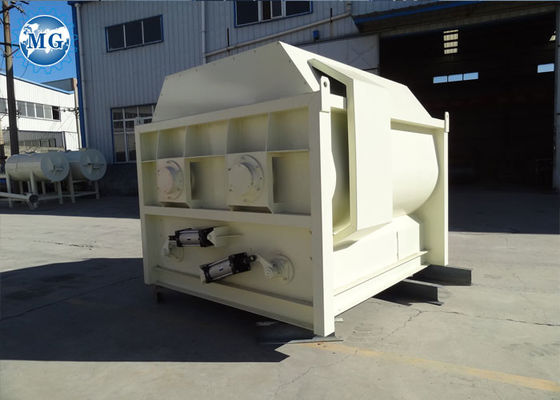

Dry Mortar Mixer Machine Used in Tile Adhesive Dry Mix Mortar Batching Plant
Main components and functions of MG twin- shaft agravic mixer
1) Feeding hopper: Material feed into the mixer from here.
2) Screw conveyor: Used for conveying the materials to the mixer, the conveyor can not heavy load starting.
3) Twin Shaft Agravic Mixer: Used for mixing materials uniformly, and the special paddle blades group can break up the fibre.
4) Finished product silo: Used for storing the finished goods material, waiting for packing.
5) Automatic weighing packaging machine: Used for packing finished product material in the finished products silo, it can automatically weighing and packaging, and accuracy can be + / - 0.5kg.
6) Control cabinet: The power switch control for this equipment of production line.
Features of MG twin- shaft agravic mixer
1.Instead of traditional chain transmission device ,extendusing life more than 2-3 years.
2.Special sealed design : dust will never enter the bearing.
3. Material is wear resistant Carbon steel, more strenght and it adopts twin paddle mixer design
The advantages of our Improved MG twin- shaft agravic mixer.
1,The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
2,High mixing speed,3-5 min per batch,with high uniformity.
3,The shaft additional equip with fly cut with high speed rotation,it can crush the fibre material in short time an efficiently.
4,There is small electricity consumption per ton,it can reduce 60% energy compared with ordinary multi-spiral conveyor.
5,Widely application,It’s especially capable for mixing high-precision Proportion material.
Parameters of the Twin Shaft Agravic Mixer
| Model | Model Power(KW) | Weight(kg/Beach) |
| MGDM-1.2 (2m³) | 18.5 | 1000 |
| MGDM-1.2(3m³) | 26 | 2000 |
| MGDM-1.2(4m³) | 30 | 3000 |
Customer visiting of MG twin- shaft agravic mixer
We are professional manufacturer of dry mortar equipment for 18 years, we always provide customer with turn-key services, including high quality machine, special additives, latest Germany or Japan formulation technology, installation and commissioning on site, consulting and updating equipment in machine lifetime.
You'll get professional and technical supporting from us when you choose us.
Any problem please feel free to contact Zoey Lee,
E-mail: amy@mgcn.com.cn Tel/ WhatsApp/Wechat: +86 18537125712
