Product Details:
|
| Material: | Carbon Steel | Mixer Type: | Multi Spiral Ribbon Mixer |
|---|---|---|---|
| Driven Type: | Electric | Dimension(L*W*H): | 3300X1050X2100mm |
| Automatic Grade: | Automatic + Manual | Application: | Dry Mortar Production, Dry Mortar Production |
| Weight: | 1 -1.5t | Additional Capabilities: | Mixing |
| Motor Brand: | CE Certificate Motor | Formulation: | Provide For Free |
| Highlight: | sand and cement mixing machine,dry mix mortar mixer |
||
High Efficiency Easy Operation Dry Mortar Mixer Machine Customized Color
Description of Dry Mortar Mixer Machine
High Efficiency Easy Operation Dry Mortar Mixer Machine Customized Color is characterized by high mixing precision, and wide application to food, chemical industries, and building lines. The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit. Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time!
Featuresof Dry Mortar Mixer Machine:
1. widely used in the mixed powder, granular, flake, block, such as materials in the feed, food, chemical, fertilizer, consttruction and other industries.
2. Specially -designed discharger has big door-opening angle an quick discharging with less residue.
3. Sealing system has good tightness, ensuring no products leakage.
4.Users can choose carbon steels and stainless steels.
5. can be equipped with heating or cooling jacket if temperature control is required. Besides, all of our powder mixer can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank!
The advantages of the equipment :
This model mixer can stop the main motor of the mixer when discharging, so as to save the electricity consumption. We assume that every batch takes 10 minute as a circle.
Every batch save electricity: motor 7.5kw*10minutes =1.25kw
every day produce 10 batch total save electricity: 1.25kw*10=12.5kw
so that every year saving electricity: 12.5*300 days=3750kw
We assure 1RMB/kw so that it can save RMB3750 every year.
Technical parameter of Dry Mortar Mixer Machine
| Item | mixing motor (kw) | hoist motor(kw) | production capacity(kg/batch) | capacity (t/h) | dimension(mm) | barrel Dia(mm) |
| MG500 | 5.5 | 3 | 500 | 1-1.5 | 3000*800*2000 | Φ800 |
| MG1000 | 7.5 | 3 | 1000 | 2-3 | 3300*1050*2100 | Φ1050 |
| MG1500 | 11 | 3 | 1500 | 3-4 | 3300*1050*2100 | Φ1050 |
| MG2000 | 11 | 4 | 2000 | 4-5 | 3680*1200*2000 | Φ1200 |

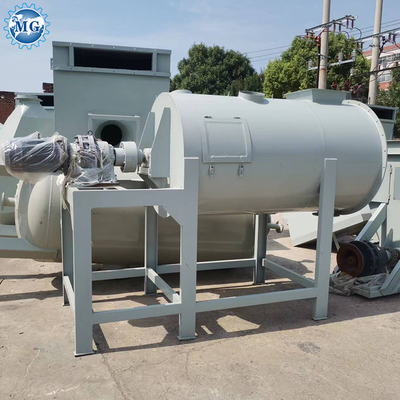

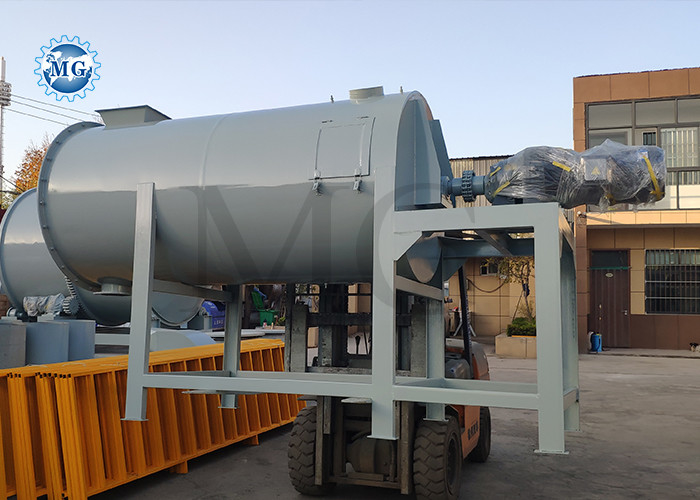

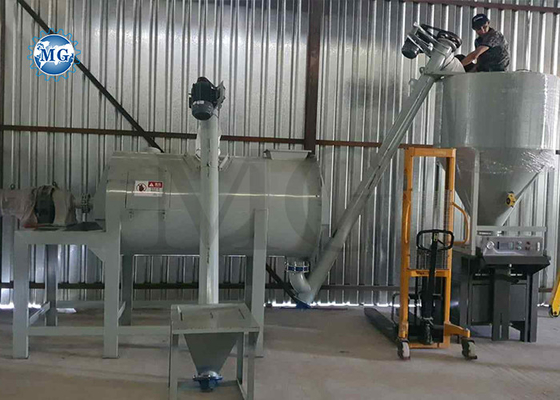

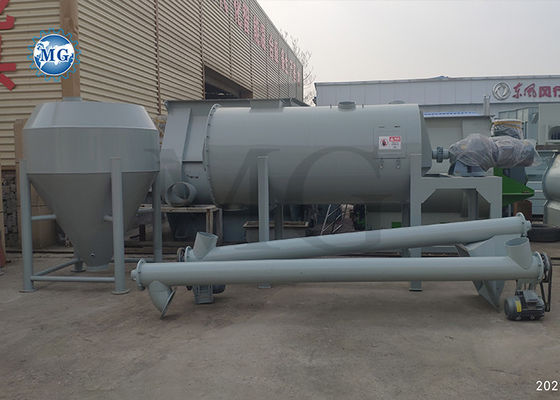

Factory Pictures of Dry Mortar Mixer Machine:
We are the integrated solution supplier of dry mortar production line( Factory), provide you quality verified equipment, formula process, raw material of additives, and good after-sales services. Escort for your success!
Weclome your inquiry!
