Product Details:
|
| Product Name: | Tile Adhesive Machine | Structure: | Tower Type |
|---|---|---|---|
| Condition: | New | Control System: | Computer Control |
| Warranty: | 12 Months | Electrical Brand: | SIEMENS Or CHNT |
| After-sales Services: | Engineer Available To Service Machinery Overseas | Dimension: | 8000mmX10000mmX9000mm |
| Color: | Grey/Blue Or Customized | Advantage: | Professioal Manufacturer |
| Highlight: | tile adhesive manufacturing plant,tile adhesive production line |
||

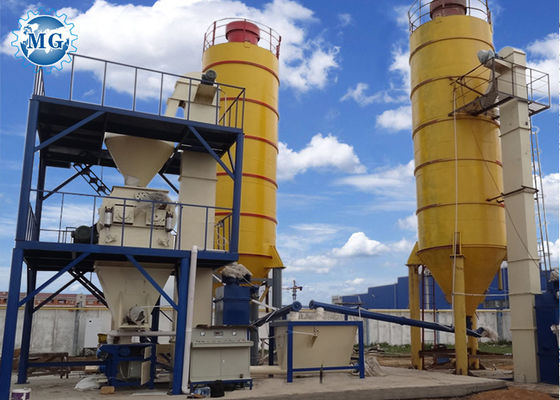

10-30T/H Ceramic Floor And Wall Tile Adhesive Machine
Introduction of MG tile adhesive machine:
The automatic type tile adhesive machine mainly consists of high-efficiency mixing system, storage system, conveying system, lifting system, weighing system, packaging system, dust removal system, material level control system, alarm system, air pressure system, whole machine control system, etc. In areas where commercial sand is scarce, crushing systems, screening systems, and drying systems can be added. It is highly automatic and has large output.
What’s tile adhesive?
Tile adhesive is made of cement, quartz sand, polymer cement and various additives by mechanical mixing. Tile adhesives are primarily used to bond ceramic and tile adhesives, also known as polymer tile bonded mortars.
Application of tile adhesive:
It is suitable for affixing indoor and outdoor concrete or cement mortar base, paste of tiles, marble, granite. It is also Indispensable decoration materials for home decoration. It is widely used for affixing interior and exterior walls, floors, bathrooms, kitchens, etc.
Technical parameters of MG tile adhesive machine:
| Product name | Automatic tile adhesive machine |
| Capacity | 10-30T/H |
| Total power | 50-80KW |
| Total Weight | 10-15T |
| Machine height | 8-15m |
| Weighing and packaging | Automatic weighing and packaging |
Features of tile adhesive machine:
Special design for Construction Project; Easy operate; Convenient structures for disassembly; Super property and low production cost; Less space demand; Full -automatic electric operation with PLC/PC control; Electrical weighing system; Twin shaft forced mixing system.
Configuration of MG automatic tile adhesive machine:
1, Raw material storage silo 60T/100T
2, Screw conveyor
3, Weighing hopper
4, Bucket elevator
5, Premix hopper
6, Twin shaft mixer
7, Finish product hopper
8, Packing machine
9, Dust collector
10, PLC control cabinet
11, Air compressor
12, Steel platform
Factory and workshop inside of Zhengzhou MG factory:
Manufacturing equipment of Zhengzhou MG factory:
Successful projects of Zhengzhou MG tile adhesive machine:
FAQ
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
3, How many person required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and services you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
5, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar plant?
A: It is 20-80W based on the capacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
10, If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
