Product Details:
|
| Product Name: | Tile Adhesive Production Line | Application: | Tile Adhesive Mixing |
|---|---|---|---|
| Voltage: | 380V/50HZ Or Customized | Total Power: | 50-80KW |
| Warranty: | 12 Months | Control System: | PLC |
| After-sales Services: | Engineer Available To Service Machinery Overseas | Condition: | New |
| Driven Type: | Electric Driven | Installation And Training: | Provide For Free |
| Highlight: | tile adhesive manufacturing plant,tile adhesive production line |
||
Automatic Type Tile Adhesive Machine / Tile Adhesive Production line
Introduction of MG tile adhesive machine:
Tile adhesive mortar production line mainly produces ordinary premixed dry mortar and special dry mortar. The whole mortar production line includes Mixing machine, Drying system, Screening system, Measuring system, Bulk and Packing system, Dedusting system, Electrical system and Spot agitation tank.
MG Tile adhesive plant for mixing mortar is composed of hoister,pre-blending silo,small silo,mixer,finished products bin,packer,dust catcher,electrical cabinet,gas phase balance system . It adopts double axles blade efficient mixer to avoid breaking raw material and ensure the motar stillstand factor constant . tile adhesive is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for tile adhesive has increased rapidly due to its outstanding merit compare to the mortar made in job-site.
Configuration of tile adhesive machine :
Tile adhesive machine is used for producing dry mortar, it main consists of the following parts: material store silo, sand dryer, screw conveyor, weighing system, hoist machine, pre-mix silo, mixer, final product silo, packing machine, dust collector, air-phase balance system, control system.
The productivity is 8-30T/H as customer requirement, According to the layout type, it can be classified into tower type and series type, Its up to the customers workshop area. The needed area is 800~10000m2.
The tile adhesive machine can produce the following various mortars:
1) Masonry mortar
2) Thin and smooth wall mortar
3) Hand-plastering screeding mortar
4) Color coating mortar
5) Waterproof mortar
6) Plaster powder
7) Wall plastering mortar
8) tile adhesive
9) Self-leveling mortar..
10) Heat-preservation mortar.
Technical parameters of MG tile adhesive machine:
| Product name | Automatic tile adhesive production line |
| Capacity | 8-30T/H |
| Man power | 3-4 person |
| Total Weight | 10-15T |
| Machine height | 8-15m |
| Weighing and packaging | Automatic weighing and packaging |

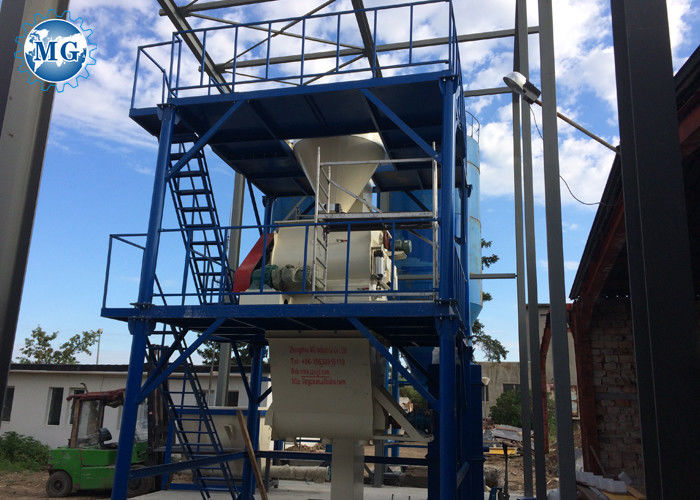

Tile adhesive machine working site:
Foreign customer Satisfy with MG Tile adhesive machines:
