Product Details:
|
| Place Of Origin: | Henan, China (Mainland) | Keyword: | Bucket Elevator Installation |
|---|---|---|---|
| Power(KW): | Depends On Your Requirement | Load Capacity: | 100kg |
| Weight: | 1t | Technical Guidance: | Structure Belt Conveyor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Blue, Gray, Red, Yellow Or Customized |
| Application: | Dry Mortar Production, Dry Mortar Production | Warranty Period: | 12 Months |
| High Light: | cement bucket elevator,chain type bucket elevator |
||
Stable Operation Wire Belt Bucket Elevator Conveyor for Cement / Sand / Putty Conveyor
Product description of MG bucket elevator:
Bucket elevator is suitable for lifting material from a lower position to a higher position. After the supplied materials are fed into the hopper through vibrating table, the machine will automatically run to elevate materials upward.the elevating speed can be adjusted according to elevating amount and the elevating height can be selected according to the need.All the sizes of the machine are designed and manufactured according to the actual need and it is equipped with vertical packing machine and computer measuring machine, so that it is suitable for elevating materials such as food, medicine, chemical product, bolts and nuts.In addition, automatic start and stop of the machine can be controlled through the signal recognition of the packing machine.
Advantages of MG bucket elevator:
1.This machine is suitable for granular, powdery material vertical ascending, the appearance design is novel, safe and reliable when running, simple structure, perfection, well-sealed, low noise, especially for its high production, low return and low fault which guarantee the efficiency.
2.The main wheel is covered glue can improve the speed, bottom wheel use paliform structure, avoid the material stick the belt or off tracking.
3.Arc Shape in the top will reduce the residual material, easy cleaning.
4.The hopper adopts high strength, wear-resistant composite, it can withstand 100kg pressure recovery on its own.
Technical parameter of wire belt type elevator bucket:
| Specification | Max. Lifting height(m) | Conveying capacity(m3/h) | Max.size(mm) | Bucket volume(L) | Motor power(KW) |
| MG160 | 80 | 34 | 0-20 | 2.6 | 2.2-11 |
| MG200 | 80 | 45 | 0-25 | 4.1 | 3-15 |
| MG250 | 80 | 71 | 0-30 | 6.5 | 5.5-22 |
| MG315 | 80 | 101 | 0-35 | 10 | 7.5-30 |
| MG400 | 80 | 158 | 0-40 | 16 | 15-45 |
| MG500 | 80 | 218 | 0-45 | 25 | 18.5-55 |
| MG630 | 80 | 345 | 0-50 | 40 | 30-90 |
| MG800 | 80 | 491 | 0-50 | 61 | 45-132 |

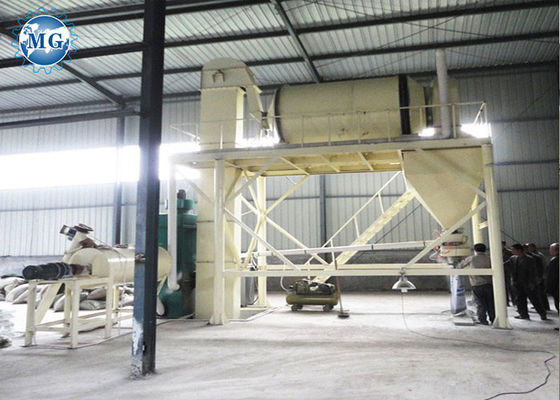

MG bucket elevator in automatic dry mortar plant;
MG bucket elevator in delivery and transportation:
Application of MG Valve Port Cement Bag Packing Machine:
Dry mortar plants suitable for practically all demands, such as:proprietary adhesive and mortars for aerated concrete; glue mortar for ceramic wall tiles; masonry mortar; skim coat; inside plaster; outside stucco; concrete; floor screed Benefits for the builder; Usage for many kinds of construction material, such as autoclaved aerated concrete (AAC), rock, calcium silicate bricks, masonry blocks, tiles, joints, etc; Application manually or with rendering/ plastering machines; Available in paper bags or in bulk.
We are the integrated solution supplier of dry mortar production line( Factory) for 18 years, provide you quality verified equipment, formula process, raw material of additives, and good after-sales services. Escort for your success!
