Easy Operation And Maintain Tiny Dry Mix Mortar Mixer Machine
Wall Putty Skim Coat Tile Adhesive Glue Grout Production Line
Product Overview
MG series Dry Mix Mortar Mixing Plant is designed based on traditional single mixer technology, enhanced with material transportation systems, finished product storage silos, and automatic packing machines. This integrated dry mortar production line significantly improves working efficiency by automating the entire process from feeding and mixing to conveying and packing.
We offer customized production line designs tailored to specific requirements. Optional features include loading screw conveyor machines, various packing machine types (valve type and open type), and automatic weighing scales as needed.
The complete production line operates with only 2-3 workers, substantially reducing labor costs. Available capacities range from 3-4 t/h, 4-6 t/h, to 7-8 t/h. This system provides fast return on investment with minimal capital, labor, and space requirements, making it ideal for newcomers to the dry mortar industry.
Product Configuration
| Model |
Capacity |
Occupied Area |
Equipment Height |
Manpower |
Batching & Packaging |
| Simple type |
1-8t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging |
Key Components
1. Ribbon Mixer Machine
The screw ribbon mixer offers exceptional economy and cost-effectiveness for dry mortar mixing. Outer and inner screw ribbon blades driven by high-speed rotating shafts achieve maximum material mixing. The inner blades push material outward while outer blades push material inward, creating thorough back-and-forth mixing for uniform results in just 10-15 minutes per batch.
- Model: 165*3500, 219*3500
- Material: Q235A
- Thickness: 3mm
- Diameter: Φ165mm, 219mm, etc.
2. Screw Conveyor
The Φ165X3500mm screw conveyor transfers mixed mortar from the mixer to the finished product hopper.
- Motor: 5kw, 7.5kw, 11kw, etc.
- Model: 0.9m³, 1.8m³, 2.8m³
- Material: Q235A
- Capacity: 0.5 T/batch, 1 T/batch, 2 T/batch, 3 T/batch
- Mixing Speed: 10-15 min/batch
3. Finished Product Storage Silo
The 1.5m³ finished product hopper stores completed material and prepares it for the packing machine, significantly improving operational efficiency.
- Volume: 1.5m³, 2.5m³, 3.7m³
- Diameter: Φ1250mm
- Thickness: 3mm
- Material: Q235A
4. Automatic Packing Machine
Valve-type automatic dry mortar packing machine with adjustable 15-50kg/bag capacity and 4kw power. Features high packing speed (5-6 seconds per bag), excellent weighing accuracy, high automation level, simple operation, and easy maintenance.
- Packing Accuracy: >98%
- Weighing Range: 15-50 kg/bags
- Packing Speed: 4-6s/bag
- Air Pressure Demand: 0.4 Mpa
- Bag Materials: Valve type paper/PP/Plastic
5. Air Compressor
0.25m³, 2.2kw unit providing air source for the automatic packing machine and finished product hopper, enabling quick packing and efficient broken arch operations.
Working Principle

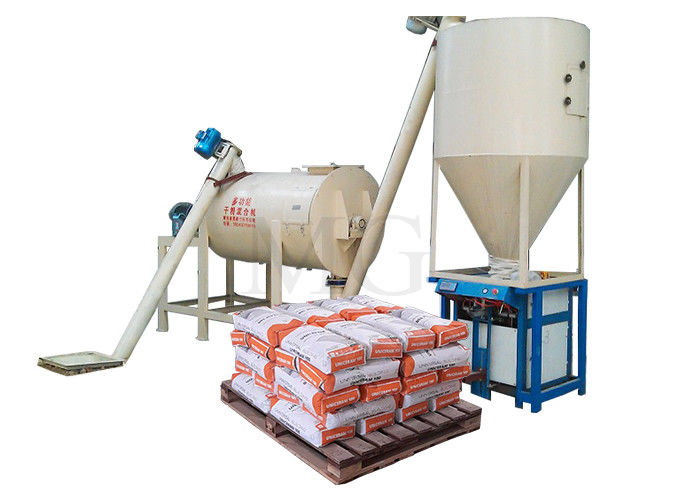

The MGDM-3.0 dry mix mortar mixing plant consists of first feeding screw conveyor, multi-spiral ribbon mixer, second discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor, and control panel. This simple, practical system occupies minimal space with low investment and maintenance costs, making it ideal for small dry powder product processing plants.
Operation Process:
- Raw materials are loaded into the feeding pot of the screw conveyor
- Materials are transported into the mixer via screw conveyor
- Multiple raw materials are mixed by the multi-ribbon screw mixer
- Mixed material is transported to the end product silo by second screw conveyor
- Finished product is packed into bags by the packing machine
Raw Materials
Frequently Asked Questions
What is the capacity of your automatic dry mortar mixing plant?
We offer dry mortar mixing plant capacities ranging from 3-50T/H according to your requirements, and we can customize production lines to meet specific needs.
Can you provide formula of different kind of dry mortar?
Yes, as a professional dry mortar production equipment supplier with over 20 years of experience and global customer base, we are executive members of Chinese private Technology Promotion Committee and Building Materials Experts Association. We can provide optimal formulas for various dry mortar applications.
What is the guarantee of the equipment?
12 months warranty with complimentary technical services during this period.
What is your business model? Trading company or factory?
We are a factory with our own mechanical design engineers and project design engineers. All machinery is manufactured in-house. We provide customized solution design and full-process services including project communication, scheme design, equipment selection, production, site planning, transportation, installation, and commissioning.
Do you provide after-sale service?
Yes. Our machines come with a 12-month warranty, and we maintain a professional after-sale service team to promptly and thoroughly address any issues.
How about the price?
As a factory, we offer competitive pricing below market rates. We maintain an honest business approach with transparent quoting and provide discounts based on quantity.
