Low Noise Dry Mix Mortar Mixer Machine
Complete manufacturing plant for wall putty, sand cement, floor tile adhesive, glue, and grout production. Designed for efficient, automated operation with minimal noise output.
Plant Overview
The MG series Dry Mix Mortar Mixing Plant integrates material transportation, mixing, storage, and automated packaging into a complete production system. This streamlined design significantly improves working efficiency by automating the entire process from feeding to packing.
Customizable configurations available with optional loading screw conveyors, valve-type or open-type packing machines, and automatic weighing systems to meet specific production requirements.
Key Benefits:
- Operates with only 2-3 workers, reducing labor costs
- Available capacities: 3-4 t/h, 4-6 t/h, 7-8 t/h
- Fast return on investment with minimal capital requirements
- Minimal land and installation requirements
- Easy operation and maintenance
Plant Configuration Options
| Model Type |
Capacity |
Occupied Area |
Equipment Height |
Manpower |
Batching & Packaging |
| Simple Type |
1-8 t/h |
20 m² |
3-4 m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic Type |
6-8 t/h |
50-60 m² |
6-8 m |
3-4 Person |
Manual batching
Automatic packaging |
| Full Automatic Type |
8-30 t/h |
60-100 m² |
8-13 m |
3-4 Person |
Automatic batching
Automatic packaging |
Core Components
1. Ribbon Mixer Machine
High-economy screw ribbon mixer featuring dual-direction mixing action. Outer and inner screw ribbon blades create back-and-forth material movement for uniform mixing in 10-15 minutes per batch.
- Models: 165×3500, 219×3500
- Material: Q235A steel
- Thickness: 3mm
- Diameter: Φ165mm, 219mm
2. Screw Conveyor
Φ165×3500mm conveyor transfers mixed mortar from mixer to finished product hopper.
- Motor: 5kw, 7.5kw, 11kw options
- Capacity: 0.5-3 T/batch
- Mixing Speed: 10-15 min/batch
3. Finished Product Storage Silo
1.5m³ capacity hopper stores finished material for packaging, significantly improving efficiency.
- Volume options: 1.5m³, 2.5m³, 3.7m³
- Diameter: Φ1250mm
- Material: Q235A steel, 3mm thickness
4. Automatic Packing Machine
Valve-type automatic packing system with adjustable bag weights and high-speed operation.
- Weight Range: 15-50 kg/bag adjustable
- Packing Speed: 4-6 seconds per bag
- Packing Accuracy: >98%
- Power: 4kw
- Bag Materials: Valve type paper/PP/Plastic
5. Air Compressor
0.25m³, 2.2kw unit provides air source for packing machine and hopper broken arch system.
Working Principle

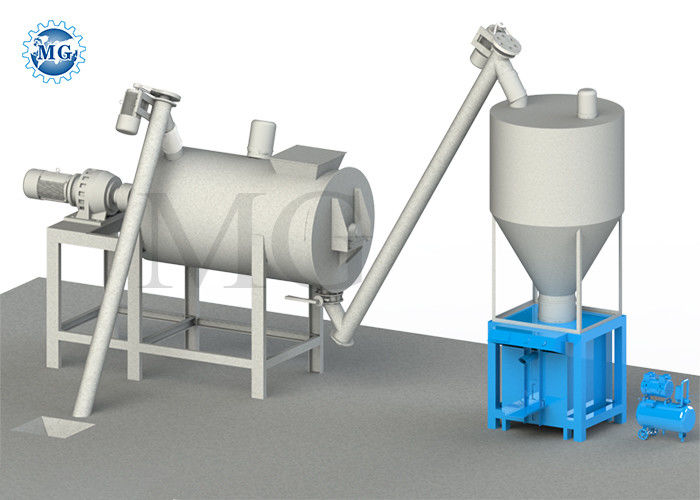

The MGDM-3.0 plant features feeding screw conveyor, multi-spiral ribbon mixer, discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor, and control panel.
Four-Step Operation Process:
- Raw materials are loaded into feeding screw conveyor
- Materials are transported to multi-ribbon screw mixer for blending
- Mixed material is conveyed to end product silo via second screw conveyor
- Finished product is automatically packed into bags by packing machine
Frequently Asked Questions
What is the capacity of your automatic dry mortar mixing plant?
We offer dry mortar mixing plants with capacities ranging from 3-50 T/H, with custom production line design available to meet specific requirements.
Can you provide formula of different kind of dry mortar?
Yes, with over 20 years of experience in dry mortar production equipment, we provide comprehensive technical support including optimized formulas for various applications. As executive members of Chinese building materials associations, we offer proven formulations.
What is the guarantee of the equipment?
12-month warranty with complimentary technical services during this period.
What is your business model? Trading company or factory?
We are a manufacturing factory with in-house mechanical and project design engineers. We provide complete customized solutions including project communication, scheme design, equipment selection, production, installation, and commissioning services.
Do you provide after-sale service?
Yes, we maintain a professional after-sales service team to provide prompt and thorough support throughout the 12-month warranty period and beyond.
How about the price?
As a factory, we offer competitive pricing with volume-based discounts available. We maintain transparent pricing policies and provide the most cost-effective solutions.
Interested in our dry mortar production line? Please contact us for detailed quotations or leave your contact information for immediate follow-up.
