20KW Low Power Consumed Dry Mix Mortar Mixing Plant Wall Putty Plaster Skim Coat Ceramic Tile Adhesive Glue Production Line

MG series Dry Mix Mortar Mixing Plant is designed based on traditional single mixer technology, enhanced with material transportation systems, finished product storage silos, and automatic packing machines. This integrated dry mortar production line significantly improves working efficiency by automating the entire process from feeding and mixing to conveying and packing.

We offer customized production line designs tailored to specific customer requirements. Optional features include loading screw conveyor machines, various packing machine types (valve type and open type), and automatic weighing scales.

The complete system requires only 2-3 operators, substantially reducing labor costs. Available capacities range from 3-4 t/h, 4-6 t/h, to 7-8 t/h. With low investment requirements, minimal funding, labor, and land needs, plus easy installation and operation, this is the ideal choice for newcomers to the dry mortar industry.

The screw ribbon mixer offers exceptional economy and cost-effectiveness for dry mortar mixing. Outer and inner screw ribbon blades, driven by high-speed rotating shafts, provide maximum material mixing efficiency. The inner blades push material outward while outer blades push material inward, creating continuous back-and-forth mixing for uniform results in just 10-15 minutes per batch.

• Model: 165*3500, 219*3500
• Material: Q235A
• Thickness: 3mm
• Diameter: Φ165mm, 219mm, etc.

Φ 165X3500mm screw conveyor transfers mixed mortar from the mixer to the finished product hopper.

• Motor: 5kw, 7.5kw, 11kw, etc.
• Model: 0.9m³, 1.8m³, 2.8m³
• Material: Q235A
• Capacity: 0.5 T/batch, 1 T/batch, 2 T/batch, 3 T/batch
• Mixing Speed: 10-15 min/batch

Approximately 1.5m³ capacity hopper stores finished material and prepares it for the packing machine, significantly improving operational efficiency.

• Volume: 1.5m³, 2.5m³, 3.7m³
• Diameter: Φ1250mm
• Thickness: 3mm
• Material: Q235A

Valve-type automatic dry mortar packing machine with 15-50kg/bag adjustable capacity, 4kw power, operating at approximately 5-6 seconds per bag. Features high packing speed, excellent weighing accuracy, high automation level, simple operation, and easy maintenance.

• Packing Accuracy: >98%
• Weighing Range: 15-50 kg/bags
• Packing Speed: 4-6s/bag
• Air Pressure Demand: 0.4 Mpa
• Bag Materials: Valve type paper/PP/Plastic

0.25m³, 2.2kw unit provides air source for the automatic packing machine and finished product hopper, enabling quick packing and efficient broken arch operation.

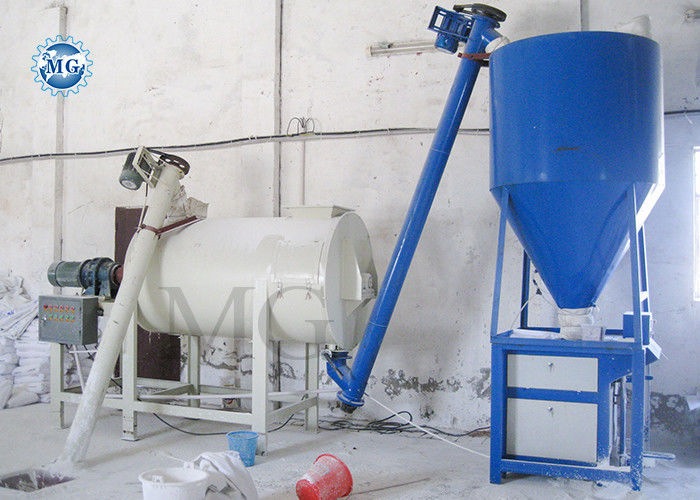

The MGDM-3.0 dry mix mortar mixing plant consists of first feeding screw conveyor, multi-spiral ribbon mixer, second discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor, and control panel. This simple, practical design occupies minimal space with low investment and maintenance costs, making it ideal for small dry powder product processing plants.

Operation process:

1. Raw material is loaded into the feeding pot of the screw conveyor
2. Material is transported into the mixer via screw conveyor
3. Multiple raw materials are mixed by the multi-ribbon screw mixer
4. Mixed material is transported to the end product silo via second screw conveyor
5. Finished product is packed into bags by the packing machine

A: We offer dry mortar mixing plant capacities ranging from 3-50T/H according to your requirements. We can also customize production lines to meet specific needs.

A: Yes, we can. With over 20 years of experience as professional dry mortar production equipment suppliers, we serve customers worldwide. As executive members of Chinese private Technology Promotion Committee and Building Materials Experts Association, we provide optimal formulas for all types of dry mortar.

A: 12 months warranty with complimentary technical services during this period.

A: We are a factory with our own mechanical design engineers and project design engineers. All machinery is manufactured in-house. We provide customized solution design and full-process services including project communication, scheme design, equipment selection, production, site planning, equipment layout, transportation, delivery, installation, and commissioning.

A: Yes. Our machines carry a 12-month warranty, supported by a professional after-sales service team dedicated to promptly and thoroughly resolving any issues.

A: As a factory, we offer the most competitive market prices. We maintain an honest business approach by quoting the lowest possible prices initially, with additional discounts available based on quantity.
