Fast Packing Dry Mix Powder Mortar Mixing Plant
Product Overview
MG series Dry Mix Mortar Mixing Plant is designed with material transportation system, finished product storage silo and automatic packing machine, forming a complete dry mortar production line that automates feeding, mixing, conveying, and packing processes.
We offer customized production line designs according to customer requirements, including loading screw conveyors, various packing machines (valve type and open type), and automatic weighing systems.
The complete production line requires only 2-3 operators, with capacities ranging from 3-4 t/h, 4-6 t/h, to 7-8 t/h. This system provides fast return on investment with minimal funding, labor, and space requirements.
Product Configuration
| Model |
Capacity |
Occupied Area |
Equipment Height |
Manpower |
Batching & Packaging |
| Simple type |
1-8t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching, Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching, Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching, Automatic packaging |
Key Components
Ribbon Mixer Machine
The screw ribbon mixer offers high economy and cost-effectiveness for dry mortar mixing. Outer and inner screw ribbon blades driven by high-speed rotating shafts mix materials thoroughly, achieving uniform mixing in 10-15 minutes per batch.
- Model: 165*3500, 219*3500
- Material: Q235A
- Thickness: 3mm
- Diameter: Φ165mm, 219mm
Screw Conveyor
Φ 165X3500mm conveyor transfers mixed mortar from mixer to finished product hopper.
- Motor: 5kw, 7.5kw, 11kw
- Model: 0.9m³, 1.8m³, 2.8m³
- Material: Q235A
- Capacity: 0.5 T/batch, 1 T/batch, 2 T/batch, 3 T/batch
- Mixing Speed: 10-15 min/batch
Finished Product Storage Silo
Approximately 1.5m³ capacity hopper stores finished material and prepares for packing machine operation.
- Volume: 1.5m³, 2.5m³, 3.7m³
- Diameter: Φ1250mm
- Thickness: 3mm
- Material: Q235A
Automatic Packing Machine
Valve type automatic packing machine with 15-50kg/bag adjustable capacity and 4kw power, achieving packing speed of 5-6 seconds per bag.
- Packing Accuracy: >98%
- Weighing Range: 15-50 kg/bags
- Packing Speed: 4-6s/bag
- Air Pressure Demand: 0.4 Mpa
- Bag Materials: Valve type paper/PP/Plastic
Air Compressor
0.25m³, 2.2kw compressor provides air source for automatic packing machine and finished product hopper, enabling quick packing and broken arch functions.
Working Principle

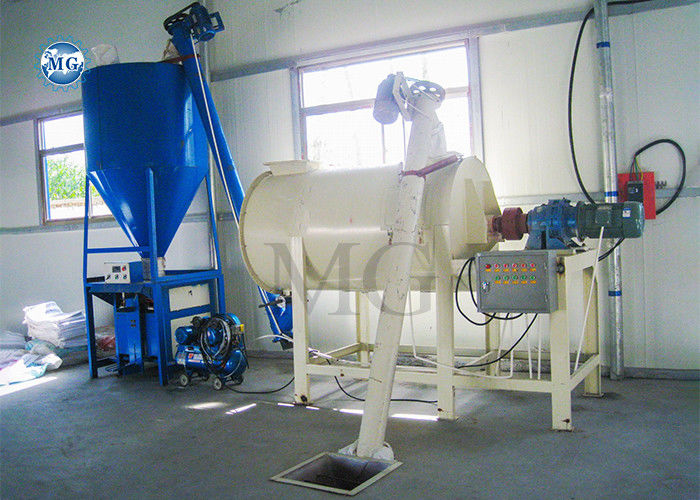

MGDM-3.0 dry mix mortar mixing plant consists of first feeding screw conveyor, multi-spiral ribbon mixer, second discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor and control panel.
Operation process:
- Raw material is loaded into feeding pot of screw conveyor
- Material is transported into mixer by screw conveyor
- Multiple raw materials are mixed by multi-ribbon screw mixer
- Mixed material is transported to end product silo by second screw conveyor
- Finished product is packed into bags by packing machine
Raw Materials
Frequently Asked Questions
What is the capacity of your automatic dry mortar mixing plant?
We have dry mortar mixing plant capacity ranges 3-50T/H as per your requirement, and we can customize the production line for you.
Can you provide formula of different kind of dry mortar?
Yes, we have been a professional dry mortar production equipment supplier for more than 20 years. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association, and can provide various best formulas for our customers.
What is the guarantee of the equipment?
12 months warranty with free technical services during this period.
What is your business model? Trading company or factory?
We are a factory with our own mechanical design engineers and project design engineers. All our machinery is manufactured by ourselves, and we provide customized solutions and full-process services.
Do you provide after-sale service?
Yes. The warranty period is 12 months, and we have a professional after-sale service team to promptly solve your problems.
How about the price?
As a factory, we offer competitive pricing and can provide discounts based on quantity.
