High Speed Feeding Small Dry Mix Mortar Mixing Plant
Product Overview
1-8 T/H Small Dry Mix Mortar Mixing Plant for wall putty, floor tile adhesive, glue, and grout making applications.
The MG series Dry Mix Mortar Mixing Plant integrates material transportation, finished product storage, and automatic packing into a complete production line. This automated system significantly improves working efficiency by handling feeding, mixing, conveying, and packing processes automatically.
Customizable configurations available with optional loading screw conveyors, valve type or open type packing machines, and automatic weighing scales. The complete line operates with only 2-3 workers, offering capacities of 3-4 t/h, 4-6 t/h, and 7-8 t/h.
Product Configuration
| Model |
Capacity |
Occupied Area |
Equipment Height |
Manpower |
Batching & Packaging |
| Simple Type |
1-8t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic Type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full Automatic Type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging |
Key Components
Ribbon Mixer Machine
High-economy screw ribbon mixer with outer and inner spiral blades for maximum material mixing. Mixing time: 10-15 minutes per batch.
- Model: 165×3500, 219×3500
- Material: Q235A
- Thickness: 3mm
- Diameter: Φ165mm, 219mm
Screw Conveyor
Φ165×3500mm conveyor transfers mixed mortar from mixer to finished product hopper.
- Motor: 5kw, 7.5kw, 11kw
- Capacity: 0.5-3 T/batch
- Mixing Speed: 10-15 min/batch
Finished Product Storage Silo
1.5m³ capacity hopper stores finished material for packing, significantly improving efficiency.
- Volume: 1.5m³, 2.5m³, 3.7m³
- Diameter: Φ1250mm
- Material: Q235A
Automatic Packing Machine
Valve type automatic packing with adjustable 15-50kg/bag capacity and 5-6 seconds per bag speed.
- Packing Accuracy: >98%
- Weighing Range: 15-50 kg/bags
- Packing Speed: 4-6s/bag
- Power: 4kw
Air Compressor
0.25m³, 2.2kw unit provides air source for packing machine and product hopper operations.
Working Principle

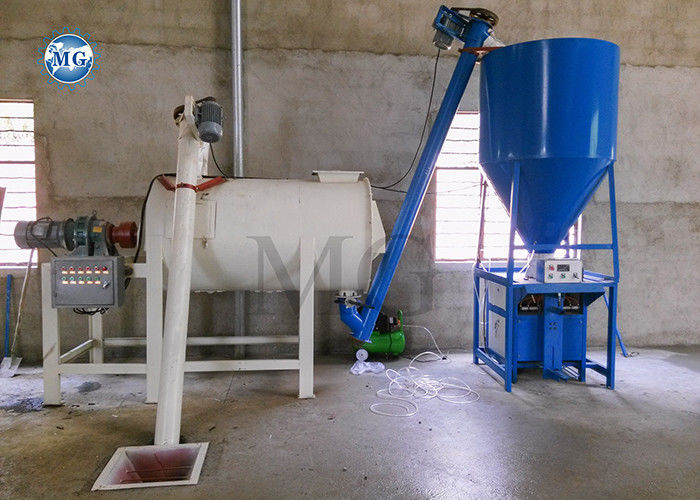

The MGDM-3.0 system includes feeding screw conveyor, multi-spiral ribbon mixer, discharge screw conveyor, finished product hopper, automatic valve bag packing machine, air compressor, and control panel.
Operation process:
- Raw materials are loaded into the feeding screw conveyor
- Materials are transported to the multi-ribbon screw mixer
- Multiple raw materials are thoroughly mixed
- Mixed material is conveyed to the end product silo
- Finished product is packed into bags by automatic packing machine
Frequently Asked Questions
What is the capacity of your automatic dry mortar mixing plant?
We offer dry mortar mixing plant capacities ranging from 3-50T/H according to your requirements, with customizable production line solutions.
Can you provide formula of different kind of dry mortar?
Yes, with over 20 years of experience in dry mortar production equipment, we provide optimal formulas for various applications as executive members of Chinese building materials associations.
What is the guarantee of the equipment?
12 months warranty with complimentary technical services during this period.
What is your business model? Trading company or factory?
We are a factory with our own mechanical and project design engineers, offering customized solutions including equipment production, site planning, installation, and commissioning services.
Do you provide after-sale service?
Yes, we have a professional after-sales service team to promptly address any issues during the 12-month warranty period.
How about the price?
As a factory, we offer competitive pricing with quantity-based discounts and honest business practices.
