8000*8000*8000mm Dry Powder Mortar Mixing Plant Wall Putty Skim Coat Tile Adhesive Making Machine
1. Description of Automatic Dry Mix Powder Mortar Mixing Plant.

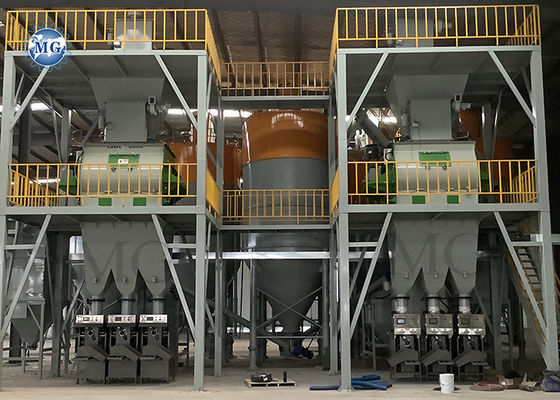

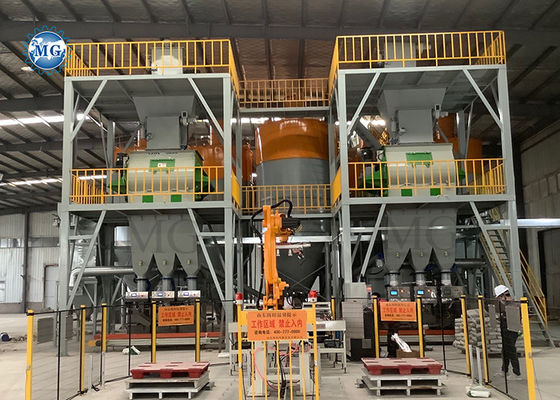

This Full Automatic Dry Mortar Mixing Production Line adopts tower type, greatly reduces the material conveying time, improves production efficiency and reduces energy consumption. According to the production requirements, the mixing system can use 4-10m3 large-capacity high-efficiency Plough mixer or Twin Shafts Agravic mixer within short mixing time. The complete full automatic dry mortar mixing production line output can reach 10-50tons/hour.
The complete set of equipment is controlled by PLC automatic control system in real time, with high degree of automation management and friendly working environment. and latest management system applied in automatic control, improved the man-friendly operation and automatic in large extent.
The advantages of MG Automatic dry mortar mixing equipment.
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic
batching,automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
3. The use of a Plough mixer or Twin Shafts Agravic mixer has high mixing uniformity, and materials with large differences in physical
properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
2. Product Configuration of Automatic Dry Mix Powder Mortar Mixing Plant.
| Model |
Capacity |
Equipment height |
Total power |
Worker required |
Workshop required |
| 2000L Mixer |
10-12T/H |
8-10m |
80-90KW |
2-3 Person |
500-600m2 |
| 3000L Mixer |
15-20T/H |
10-14m |
90-100KW |
3-4 Person |
600-800m2 |
| 4000L Mixer |
20-30T/H |
10-14m |
100-120KW |
3-4 Person |
600-800m2 |
| 6000L Mixer |
30-50T/H |
15-20m |
100-120KW |
3-4 Person |
800-1000m2 |
| 10000L Mixer |
50-80T/H |
20-25m |
120-150KW |
3-4 Person |
1000-1200m2 |

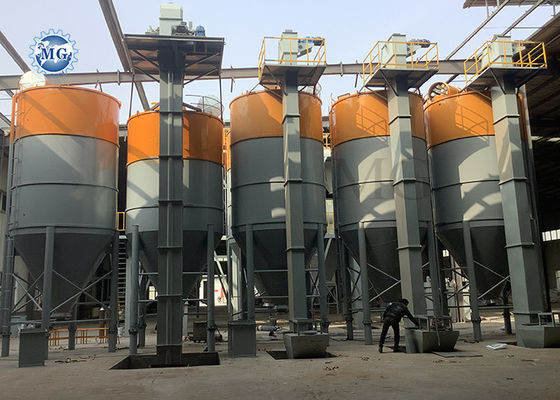

1, Raw Material Storage Silo:
Model: 50T, 60T, 100T, 150T, 200T, etc
Material: Q235A
Thickness: 3mm, 4mm
Diaimeter: Φ3000mm,3500mm,4000mm,etc
Support leg: Φ273mm
2, Bucket elevator.
Motor: 4kw, 5kw, 7.5kw, etc
Height: Customrized
Bucket Size: 230*130*120mm
Bucket thickness: 3mm
Material: Q235A
Maintain platform: 1600*1600mm
3, Automatic weighing system.
Volume:2m³, 3m³, 4m³, 6m³, 10m³
Dimensions:2000*1500*1900mm
Support Leg:120mm Channel
Thickness: 3mm
Material: Q235A
Motor:7.5kw

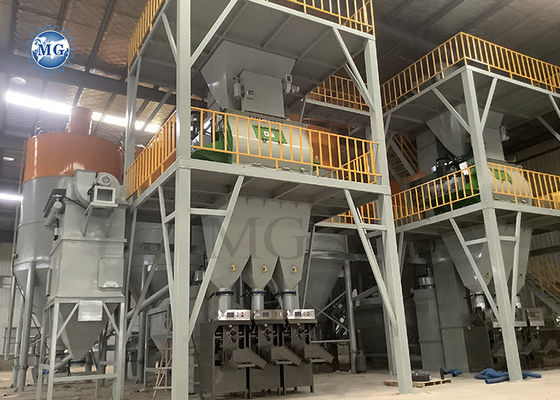

4, Twin shaft agravic paddle mixer.
Mixing Capacity:2m³, 3m³, 4m³, 6m³, 10m³
Mixing speed: 3-5 minutes per batch
Wallboard: 10mm Q235A
Principal axis: Φ108×10mm Q235A
Paddles: 32*12mm
Material: cast steel
Motor: 18kw, 22kw, 30kw, 37kw
5, Automatic packing machine.
Packing Accuracy: >98%
Weighing Range: 10-50 kg/bags
Packing Speed: 4-6s/bag
Air Pressure Demend: 0.4 Mpa
Bag Materials: valve type Paper/PP/Plastic
Motor: 3kw
6, Pulse dust collector.
Model:MG5, MG12, MG24, MG36, MG48, etc
Size:1100*700*3100mm
Thickness:3mm
Material: Q235A
Connecting bag: Ф133×1130mm
7. Air compressor machine.
Model: 2.4m³
Motor: 15kw
Air pressure: 0.8Mpa
Air tank: 1m³
8, Control cabinet.
Voltage: Customrized
Electric components: CHNT
PLC: Touch screen
3. Working Principle of Automatic Dry Mix Powder Mortar Mixing Plant.

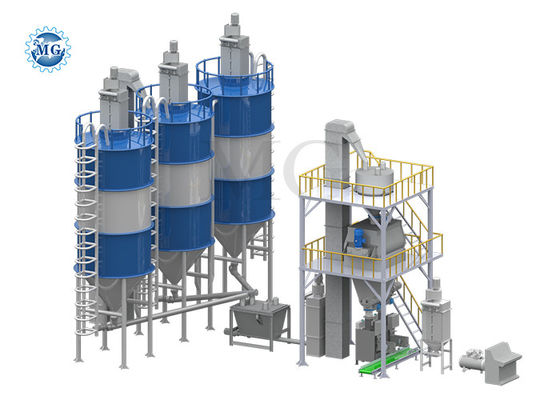

Our automatic dry mix powder mortar mixing plant include Electric control cabinet; Cement silo, Weighing system; Feeding hopper; Impulse dust collector; Bucket elevator; Premix tank; Twin shaft agravic mixer; Finished product holding tank; Automatic packaging machine; Air compresser.
When the automatic dry mix powder mortar mixing plant works,firstly,different kinds of raw material will be transported into the silos by bucket elevator or pump truck,secondly,different kinds of raw material will be conveyed from the raw material silo to the automatic weighing scale in the ratio of formula by screw conveyor,thirdly,the premix raw material will be lifted into the premix hopper by bucket elevator,fourthly,the premix material will get into the twin shaft paddle mixer and be mixed uniformly,fifthly,the mixed material will get into the automatic packing machine and be packed,finally,the packed bag will be conveyed to next process by the belt conveyor.
4. Raw Materials of Automatic Dry Mix Powder Mortar Mixing Plant.
5. Application of Automatic Dry Mix Powder Mortar Mixing Plant.
6. Our company.
Zhengzhou MG Industrial Co., LTD has dedicated in dry mortar powder industry for 20 years.One of the leading manufacturers of building material equipment in China.
We provide one-stop solutions to the customers from all over the world, including customer site planning, equipment configuration, site installation and commissioning to formula technology and chemicals.
The main products of the company includes dry mortar mixers, dry mortar plant, thermal insulation mortar plant, tile adhesive mortar plant, sand dryer, powder blending machine, impulse dust collector, automatic packing machine, conveying equipment, robot palletizing equipment, and other dry mortar machine accessories.
Now our company has introduced a series of advanced processing equipment, such as laser cutting and numerical control machine. In addition, we have obtained over 30 technology patents and passed ISO9001:2008 Certification, CE Certification and Intellectual property system certification.
MG products have been widely used in more than 2000 building materials enterprises in China, and exported to more than 90 countries all over the world, such as England, Canada, Australia, Russia, Korea, Malaysia, the United Arab Emirates, Saudi Arabia, Argentina, Chile, Ecuador, Morocco, South Africa, Senegal, Kenya, Somalia , etc.
According to the actual situation of each customer (investment costs, site conditions, material characteristics, product formula, etc.), the company can customize a set of reasonable, practical and efficient solutions for customers.
Zhengzhou MG will be willing to work with you to seek mutual development.
7. FAQ
1. What is the total cost if you start one automatic plant?
It depends on your requirements. But we can provide design services and budget assessments according to your needs. Besides, we believe that you will get the most competitive price and the best quality products. 3. In terms of installation: After reaching an agreement, we will send senior engineers and English translators to your country to install and operate the machine.
2. How many workers will need to operate the whole production line?
Usually 2-4 workers are enough to operate the machine.
3. How long is the guarantee period of your equipment?
12 months, during this period, we will provide you with spare parts and services for free.
4. What is the capacity of your dry mortar production line?
Usually, the production capacity of the dry mortar mixing equipment we supply is 3-30t/h as required by you, but we can also customize the dry mortar equipment according to your capacity requirements.
5. What is the area needed for the automatic dry mortar plant?
The area required for this dry mortar mixing equipment is usually 100-300 square meters.
6. What is the difference between automatic dry mortar mixing equipment and semi-automatic dry mortar mixing equipment?
1) In terms of price: more and cheaper semi-automatic dry mortar mixing equipment.
2) Silo: The automatic dry mortar mixing equipment is equipped with a silo.
3) Operators: The semi-automatic dry mortar mixing equipment requires 2-3 people to feed materials.
