1. Description of Ceramic Tile Adhesive Manufacturing Plant.

MGDM-3.1 semi automatic dry mix powder mortar plant also called energy-saving dry mortar mixing production line, dry mortar mixing machine, dry mortar mixing equipment. Which can feed various materials into the hopper, under the automatic control system, this production line can realize automation in collecting, feeding, mixing and packing. It is the ideal selection for set up a dry mortar factory with reasonable price and quick refund.

2. Advantages of Ceramic Tile Adhesive Manufacturing Plant.

20 ㎡ Area Occupation, 6 m Height,
3-4 Manpower
6-8 T/H Production Capacity
Ideal Selection for Medium Enterprises
Quick Profits Feedback

Working Principle

When the Semi-automatic Dry Mix Powder Mortar Plant works, firstly, different kinds of raw material will be transported into the twin shaft paddle mixer by bucket elevator, secondly, different kinds of raw material will be mixed uniformly in the mixer machine, thirdly, the mixed material will get into the automatic packing machine and be packed.

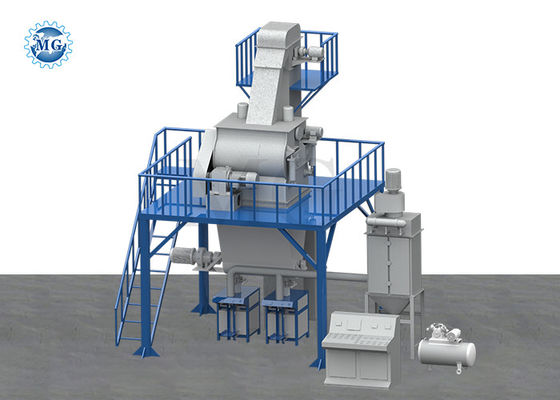

3.Product Configuration of Ceramic Tile Adhesive Manufacturing Plant.

1, Bucket elevator.

This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.

Motor: 4kw, 5kw, 7.5kw, etc
Height: Customrized
Bucket Size: 230*130*120mm
Bucket thickness: 3mm
Material: Q235A
Maintain platform: 1600*1600mm

2, Twin shaft agravic paddle mixer.

This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.

Mixing Capacity:2m³, 3m³, 4m³, 6m³, 10m³
Mixing speed: 3-5 minutes per batch
Wallboard: 10mm Q235A
Principal axis: Φ108×10mm Q235A
Paddles: 32*12mm
Material: cast steel
Motor: 18kw, 22kw, 30kw, 37kw

3, Automatic packing machine.

The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.

Packing Accuracy: >98%
Weighing Range: 10-50 kg/bags
Packing Speed: 4-6s/bag
Air Pressure Demend: 0.4 Mpa
Bag Materials: valve type Paper/PP/Plastic
Motor: 3kw

4, Pulse dust collector.

The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.

Model:MG5, MG12, MG24, etc
Size:1100*700*3100mm
Thickness:3mm
Material: Q235A
Connecting bag: Ф133×1130mm

5, Air compressor.

This air compressor equip good quality copper motor,to make sure provide good quality air to the machines.

Model: 0.9m³
Motor: 7.5kw
Air pressure: 0.8Mpa
Air tank: 1m³

6, Control cabinet.

PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.

Voltage: Customrized
Electric components: CHNT
PLC: Touch screen

4. Raw Materials of Ceramic Tile Adhesive Manufacturing Plant.

I Cementing materials: cement, lime, gypsum.
II Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
III Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
IV Water-retention and thickening material.
V Chemical additives.

5. Application of Ceramic Tile Adhesive Manufacturing Plant.

Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar,anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.

1. What kind of dry mortar can this production line make?
A: Our simple dry mortar production line can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,masonry mortar,and so on.

2. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.

3. Do you have your own factory?
A: We have our own factory. Located in Zhengzhou City, Henan Province, China, welcome to visit our factory. In addition, we have long-term cooperative relationships with some excellent raw material suppliers to ensure that the prices of the products we supply are lower than other foreign trade companies.

4. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.

5. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.
