20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine

Name: 20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine
Brand: Zhengzhou MG Industrial Co.,Ltd
SKU: MGDM3.1
Price: 36,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: MG

Certification: CE BV ISO 9001:2008

Model Number: MGDM3.1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Stand seaworthy packaging

Delivery Time: 20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Wall Putty Dry Mortar Mixing Machine, 25m2 Dry Mortar Mixing Machine, Tile Adhesive Dry Mortar Mixing Machine


Raw Material:	Sand,Cement,Gypsum,etc	Application:	Dry Powder Mixing
Capacity:	1-5 T/H	Color:	Grey/White/Blue Or Customized
Power:	20kw	Size:	600030003200mm
Workers:	2-3 Persons	Formula:	Provided
Mixing Time:	10-15 Minutes/Batch	Packing Machine:	Valve Port Packing Machine

Raw Material:	Sand,Cement,Gypsum,etc
Application:	Dry Powder Mixing
Capacity:	1-5 T/H
Color:	Grey/White/Blue Or Customized
Power:	20kw
Size:	600030003200mm
Workers:	2-3 Persons
Formula:	Provided
Mixing Time:	10-15 Minutes/Batch
Packing Machine:	Valve Port Packing Machine

Product Description

1. Description of Wall Putty Tile Adhesive Grout Making Machine.

MG series Dry Mortar Mixing Plant Tile Adhesive Making Machine is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine, and forms one whole simple dry mortar production line, improves the working efficiency a lot, it can finish the work from feeding, mixing, conveying to packing automatically.

2. Product Configuration of Wall Putty Tile Adhesive Grout Making Machine.

Model	Capacity	Occupied area	Equipment height	Manpower	Batching and packaging
Simple type	3-4t/h	20㎡	3-4m	2-3 Person	Manual batching Automatic packaging
Semi-automatic type	6-8t/h	50-60㎡	6-8m	3-4 Person	Manual batching Automatic packaging
Full automatic type	8-30t/h	60-100㎡	8-13m	3-4 Person	Automatic batching Automatic packaging

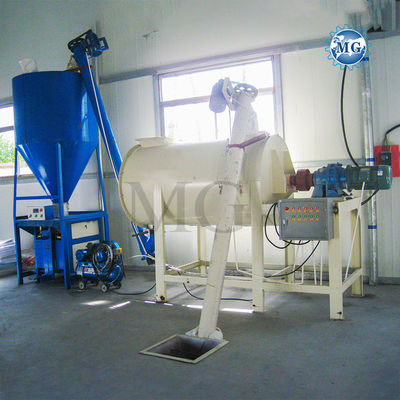

1. Ribbon Mixer Machine.

The screw ribbon mixer is the most high economy and cost-effective dry mortar mixer,the mixing time is about 10-15min/batch, the capacity include 1 t/batch, 2 t/batch, 3 t/batch, etc.

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 0

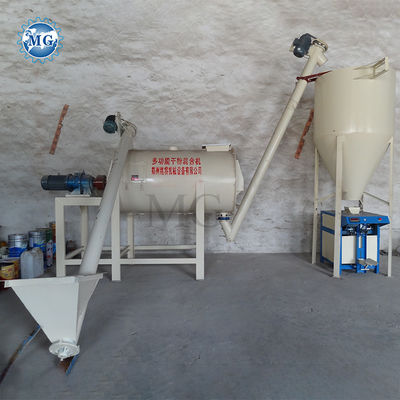

2. Screw conveyor.

The screw conveyor include Φ165X3500mm, Φ219X3500mm.

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 2

3. Finished Product Storage Silo.

The capacity of finished product hopper include 1.5m³, 2.5m³, 3.5m³.

4. Automatic Packing Machine.

Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag.

5. Air Compressor.

0.25m³, 2.2kw.

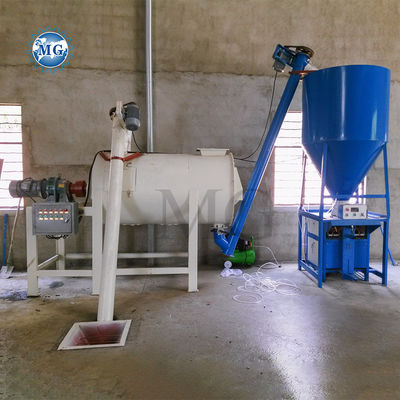

3. Application of Wall Putty Tile Adhesive Grout Making Machine.

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 7

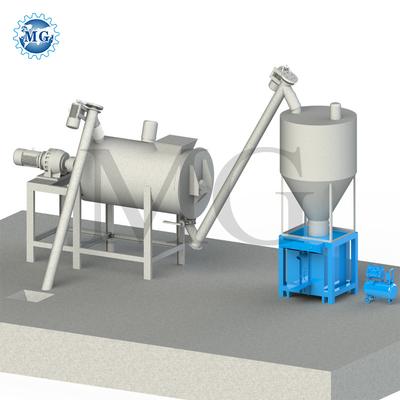

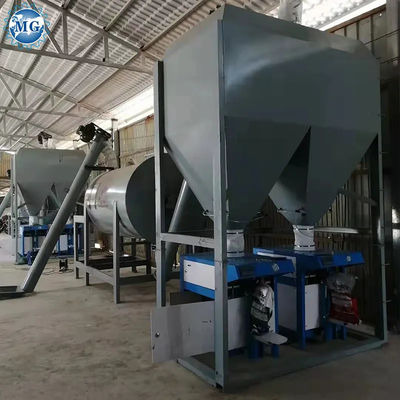

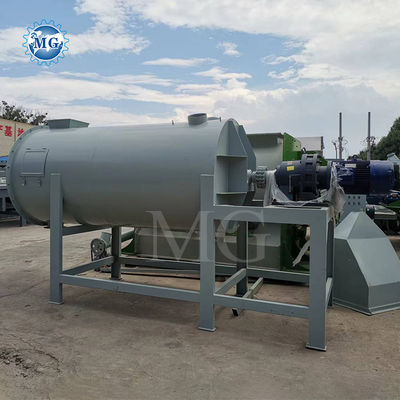

4. Our company.

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 8

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 9

20-25m2 Area Simple Dry Mortar Mixing Plant Wall Putty Gypsum Powder Plaster Skim Coat Cement Mixer Tile Adhesive Grout Glue Making Machine 13

5. FAQ

1. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.

2. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.

3. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.

4. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.

5. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.

If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
