1. Description of Wall Putty Tile Adhesive Grout Making Machine.
MG series Dry Mortar Mixing Plant Tile Adhesive Making Machine is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine, and forms one whole simple dry mortar production line, improves the working efficiency a lot, it can finish the work from feeding, mixing, conveying to packing automatically.
2. Product Configuration of Wall Putty Tile Adhesive Grout Making Machine.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging
|

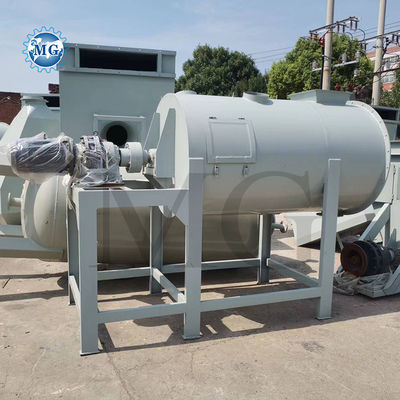

1. Ribbon Mixer Machine.
The screw ribbon mixer is the most high economy and cost-effective dry mortar mixer,the outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. so to achieve uniform mixing effect in relatively short time.this is its working principle,the mixing time is about 10-15min/batch, the capacity include 1 t/batch, 2 t/batch, 3 t/batch, etc.
The screw conveyor include Φ165X3500mm, Φ219X3500mm the mixer mortar is transferred from mixer to finish product hopper.

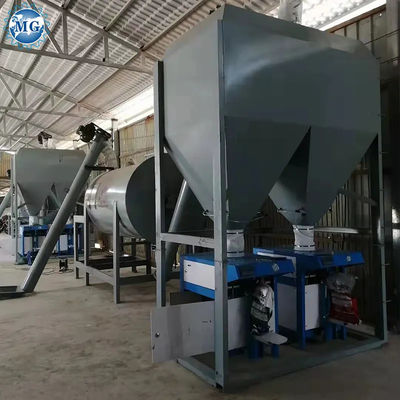

3. Finished Product Storage Silo.
The capacity of finished product hopper include 1.5m³, 2.5m³, 3.5m³, to store the finished material and prepare for the packing machine, which improves the efficiency a lot.
4. Automatic Packing Machine.
Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag. High packing speed, high weighing accuracy, high degree of automation, simple operation,and easy maintance.
0.25m³, 2.2kw, providing air source for automatic packing machine and finished product hopper,achieving quick packing and broken arch of finish product hopper.
3. Working Principle of Dry Mix Mortar Plant Tile Adhesive Production Line.

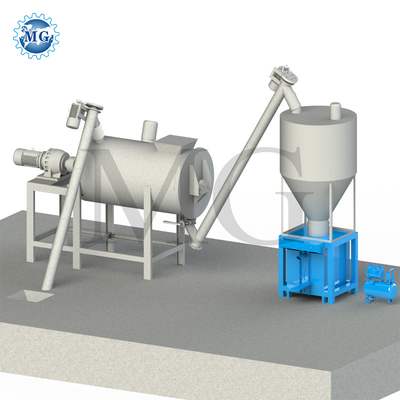

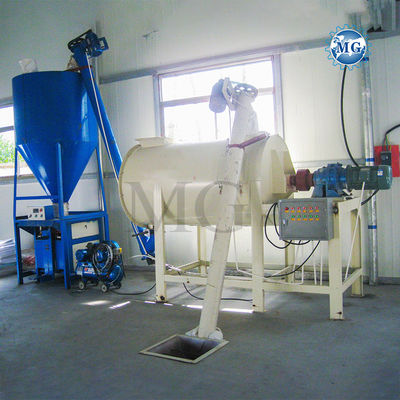

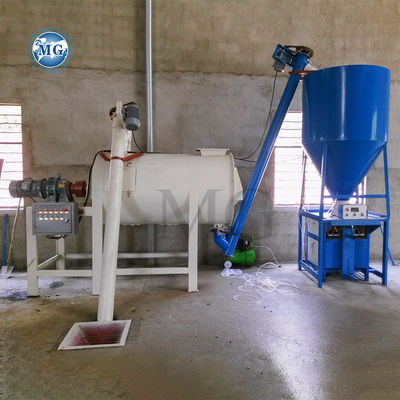

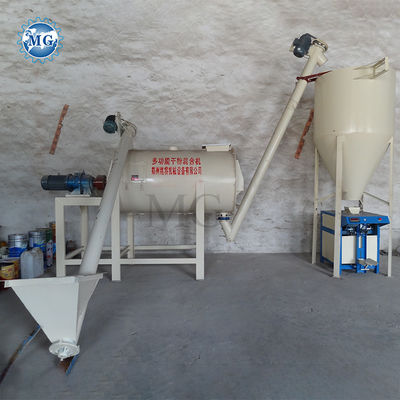

Our simple dry mix powder mortar production line include a loading screw conveyor machine, a ribbon mixer machine, a second screw conveyor machine, a finished product hopper, one or two valve type packing machine, a air compressor machine, a electric control cabinet, etc.
Firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor,secondly, several kinds of raw material will be mixed by the multi ribbon screw mixer, thirdly,the mixed material will be transported into the end product silo by second screw conveyor, fourthly, the finished product will be packed into bags by packing machine.
4. Raw Materials of Wall Putty Tile Adhesive Grout Making Machine.
5. Application of Wall Putty Tile Adhesive Grout Making Machine.
6. Our company.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer,screw ribbon mixer machine,twin shaft paddle mixer machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 70 countries ,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
7. FAQ
1. What kind of dry mortar can this production line make?
A: Our simple dry mortar production line can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,masonry mortar,and so on.
2. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
5. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.
6. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.
7. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
