Product Details
Place of Origin: China
Brand Name: MG
Certification: CE BV ISO 9001:2008
Model Number: MGDM3.7
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Stand seaworthy packaging
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Raw Material: |
Sand,Cement,Gypsum,etc |
Application: |
Dry Powder Mixing |
Capacity: |
10-30 T/H |
Color: |
Grey/White/Blue Or Customized |
Power: |
22kw |
Size: |
8000*8000*8000mm |
Workers: |
3-4 Persons |
Formula: |
Provided |
Mixing Time: |
3-5 Minutes/Batch |
Packing Machine: |
Valve Port Packing Machine |
Raw Material: |
Sand,Cement,Gypsum,etc |
Application: |
Dry Powder Mixing |
Capacity: |
10-30 T/H |
Color: |
Grey/White/Blue Or Customized |
Power: |
22kw |
Size: |
8000*8000*8000mm |
Workers: |
3-4 Persons |
Formula: |
Provided |
Mixing Time: |
3-5 Minutes/Batch |
Packing Machine: |
Valve Port Packing Machine |

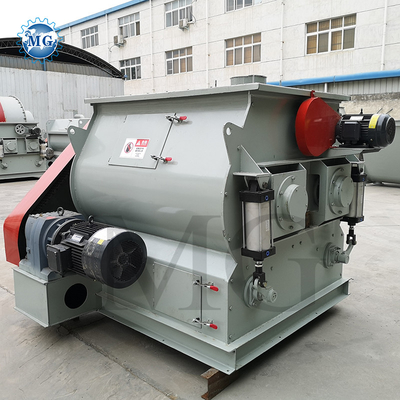

1. Description of Double Twin Shaft Agravic Paddle Mixer.
Zhengzhou MG double twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
2. Advantages of Double Twin Shaft Agravic Paddle Mixer.
1. High mixing speed, 3-5 minutes per batch, with high uniformity;
2. Less segregation when mixing material in very different proportion, size and shape, etc.
3. Additional fly-cuter system with high speed rotation can crush fiber material efficiently in short time.
4. Less electricity consumption per ton, 60% energy reduction compared with ordinary ribbon mixer.
3. Product Configuration of Double Twin Shaft Agravic Paddle Mixer.
Model | Mixing Speed | Power | Volume of Drum | Capacity | Size |
2m³ | 3-5 minutes | 18.5 KW | 2m³ | 1 T/Batch | 2440*2070*1630mm |
3m³ | 3-5 minutes | 22 KW | 3m³ | 1.5 T/Batch | 2800*1710*1650mm |
4m³ | 3-5 minutes | 30 KW | 4m³ | 2 T/Batch | 3120*2080*1800mm |
6m³ | 3-5 minutes | 37 KW | 6m³ | 3 T/Batch | 3170*2470*2100mm |
10m³ | 3-5 minutes | 55 KW | 10m³ | 5 T/Batch | 3550*2900*2500mm |

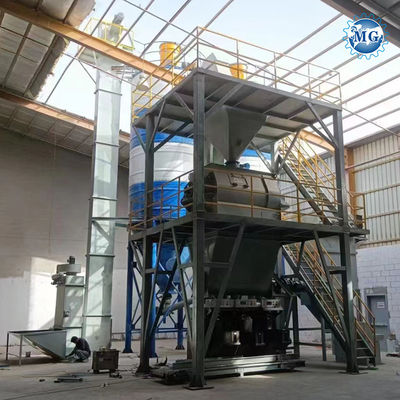

4. Working Principle of Automatic Weighing Dry Mortar Mixing Plant.
Double Twin Shaft Agravic Paddle Mixer adopts the paddle blades inner structure. Different proportion materials can achieve best mixing performance through lose weight instantly at the critical parabolic rotate speed, while the mixing time can be shorted in a large extent at the violent turnover mode. Therefore the twin shaft agravic mixer can be widely applied in dry mortar production lines.
