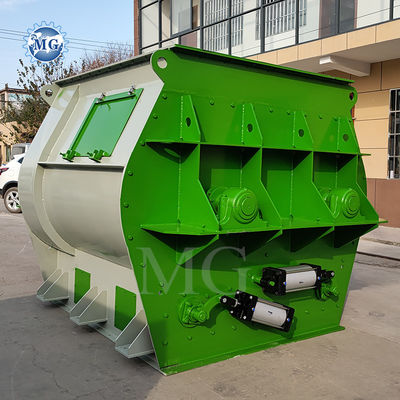

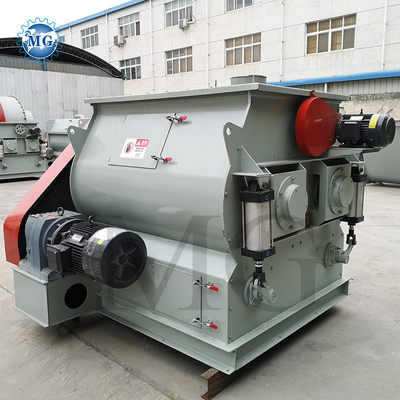

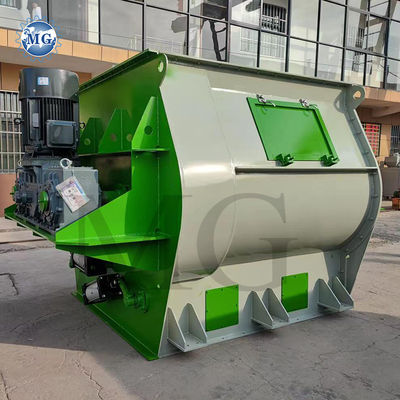

1. Description of Double Twin Shaft Agravic Paddle Mixer.
Zhengzhou MG double twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
2. Advantages of Double Twin Shaft Agravic Paddle Mixer.
1. High mixing speed, 3-5 minutes per batch, with high uniformity;
2. Less segregation when mixing material in very different proportion, size and shape, etc.
3. Additional fly-cuter system with high speed rotation can crush fiber material efficiently in short time.
4. Less electricity consumption per ton, 60% energy reduction compared with ordinary ribbon mixer.
3. Product Configuration of Double Twin Shaft Agravic Paddle Mixer.
| Model |
Mixing Speed |
Power |
Volume of Drum |
Capacity |
Size |
| 2m³ |
3-5 minutes |
18.5 KW |
2m³ |
1 T/Batch |
2440*2070*1630mm |
| 3m³ |
3-5 minutes |
22 KW |
3m³ |
1.5 T/Batch |
2800*1710*1650mm |
| 4m³ |
3-5 minutes |
30 KW |
4m³ |
2 T/Batch |
3120*2080*1800mm |
| 6m³ |
3-5 minutes |
37 KW |
6m³ |
3 T/Batch |
3170*2470*2100mm |
| 10m³ |
3-5 minutes |
55 KW |
10m³ |
5 T/Batch |
3550*2900*2500mm |

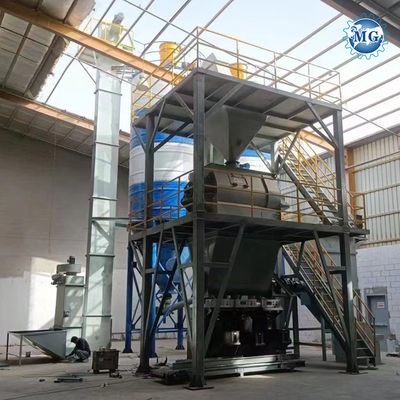

4. Working Principle of Automatic Weighing Dry Mortar Mixing Plant.
Double Twin Shaft Agravic Paddle Mixer adopts the paddle blades inner structure. Different proportion materials can achieve best mixing performance through lose weight instantly at the critical parabolic rotate speed, while the mixing time can be shorted in a large extent at the violent turnover mode. Therefore the twin shaft agravic mixer can be widely applied in dry mortar production lines.
5. Raw Materials of Automatic Weighing Dry Mortar Mixing Plant.
1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.
6. Application of Automatic Weighing Dry Mortar Mixing Plant.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7.Our company.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
8. FAQ
1. What kind of dry mortar can this production line make?
A: Our simple dry mortar production line can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,masonry mortar,and so on.
2. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
5. How many workers are needed to operate the equipment?
A: Our 3-4 t/h simpler dry mortar production line and 4-6 t/h improved dry mortar production line need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar production line and 10-12 t/h automatic dry mortar production line need 3-4 worker.
6. What is the guarantee of the equipment?
A: 12 months, with in this period we provide you technical services for free.
7. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
