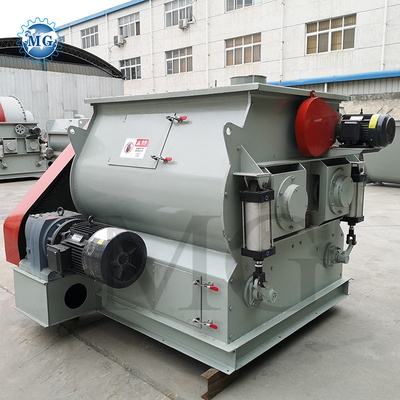

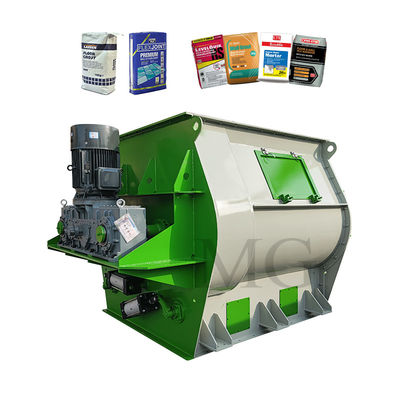

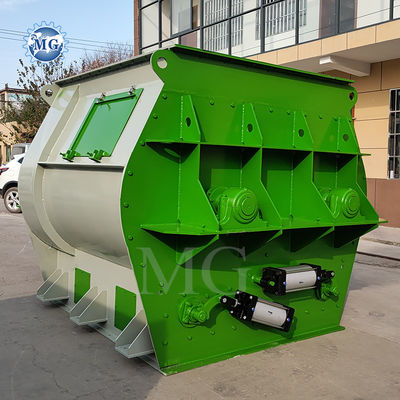

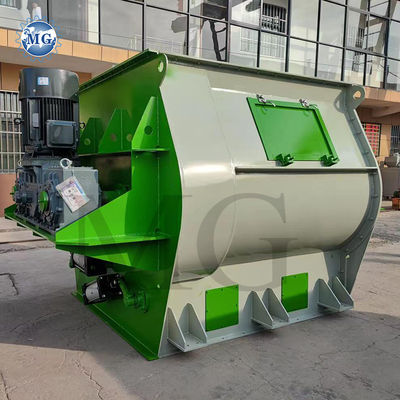

1. Description of Double Twin Shaft Agravic Paddle Mixer.
Zhengzhou MG double twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
2. Advantages of Double Twin Shaft Agravic Paddle Mixer.
1. High mixing speed, 3-5 minutes per batch, with high uniformity;
2. Less segregation when mixing material in very different proportion, size and shape, etc.
3. Additional fly-cuter system with high speed rotation can crush fiber material efficiently in short time.
4. Less electricity consumption per ton, 60% energy reduction compared with ordinary ribbon mixer.
3. Product Configuration of Double Twin Shaft Agravic Paddle Mixer.
| Model |
Mixing Speed |
Power |
Volume of Drum |
Capacity |
Size |
| 2m³ |
3-5 minutes |
18.5 KW |
2m³ |
1 T/Batch |
2440*2070*1630mm |
| 3m³ |
3-5 minutes |
22 KW |
3m³ |
1.5 T/Batch |
2800*1710*1650mm |
| 4m³ |
3-5 minutes |
30 KW |
4m³ |
2 T/Batch |
3120*2080*1800mm |
| 6m³ |
3-5 minutes |
37 KW |
6m³ |
3 T/Batch |
3170*2470*2100mm |
| 10m³ |
3-5 minutes |
55 KW |
10m³ |
5 T/Batch |
3550*2900*2500mm |

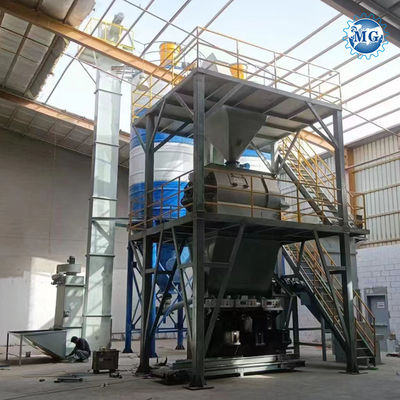

4. Working Principle of Automatic Weighing Dry Mortar Mixing Plant.
Double Twin Shaft Agravic Paddle Mixer adopts the paddle blades inner structure. Different proportion materials can achieve best mixing performance through lose weight instantly at the critical parabolic rotate speed, while the mixing time can be shorted in a large extent at the violent turnover mode. Therefore the twin shaft agravic mixer can be widely applied in dry mortar production lines.
5. Raw Materials of Automatic Weighing Dry Mortar Mixing Plant.
1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.
6. Application of Automatic Weighing Dry Mortar Mixing Plant.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7.Our company.
8. FAQ
1. How is the quality of your products?
Our machines are manufactured strictly according to national and international standards, and we will assemble and test all the equipment and pack them carefully before delivery. We have exported to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
2. What is your business model? Trading company or factory?
We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
3. What product can this production line make?
Our automatic dry mortar production line can make all kinds of dry mortar, such as wall putty, plaster, gypsum mortar, cement mortar, skim coat, ceramic tile adhesive, tile glue, tile grout, tile joint, and so on.
4. Do you provide equipment operation training?
Yes. All of our engineers have passports. We can send experienced engineers to the customer's site to guide equipment installation, debug the production line until it is put into production, we will also provide installation instructions, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation steps drawings we provide, and we can also guide the installation with online videos.
5. Can I visit your factory?
Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
6. Do you provide after-sale service?
Yes. The warranty period of our machines is 12 months, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
