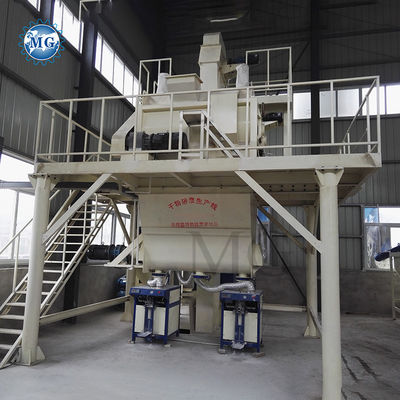

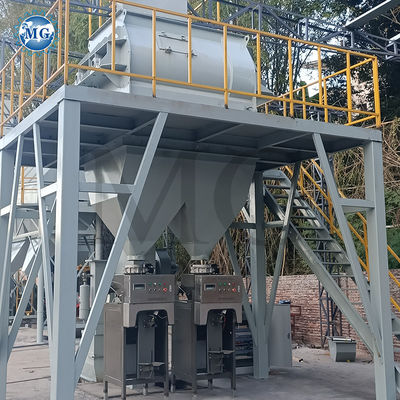

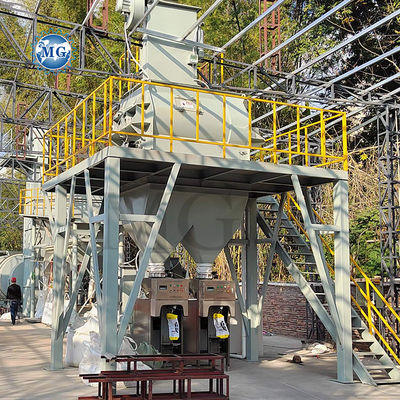

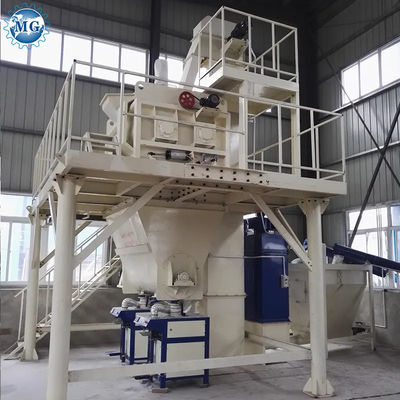

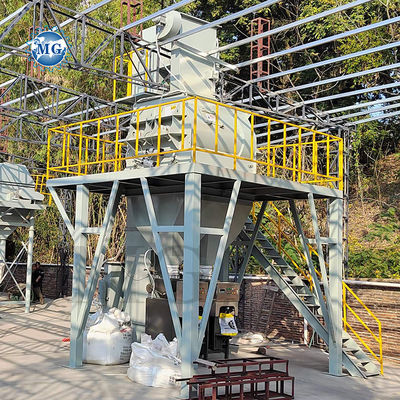

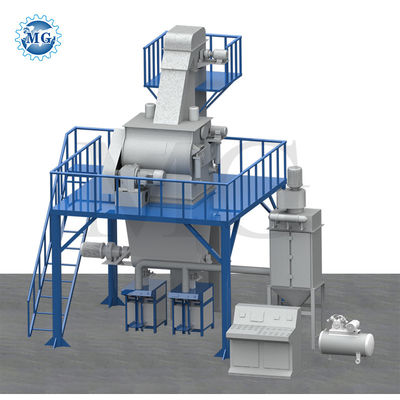

1. Description of Easy Installation Dry Mortar Mixing Plant.
MGDM-3.1 semi automatic dry mortar mixing plant also called energy-saving dry mortar mixing production line, dry mortar mixing machine, dry mortar mixing equipment. Which can feed various materials into the hopper, under the automatic control system, this production line can realize automation in collecting, feeding, mixing and packing. It is the ideal selection for set up a dry mortar factory with reasonable price and quick refund.
2. Advantages of Easy Installation Dry Mortar Mixing Plant.
1. The use of tower layout structure, shorten the transportation distance and raise production efficiency.
2. The use of a biaxial mixer(twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
3. This dry mortar mixing plant is high cost-effective, it is the ideal selection for medium enterprises who want set a dry mortar factory at a reasonable price with a quick profits feedback.
3. Working Principle of Easy Installation Dry Mortar Mixing Plant.
Working Principle
When the Semi-automatic Dry Mix Powder Mortar Plant works, firstly, different kinds of raw material will be transported into the twin shaft paddle mixer by bucket elevator, secondly, different kinds of raw material will be mixed uniformly in the mixer machine, thirdly, the mixed material will get into the automatic packing machine and be packed.
4. Product Configuration of Easy Installation Dry Mortar Mixing Plant.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging |
1, Bucket elevator.
This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.
2, Twin shaft agravic paddle mixer.
This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
3, Automatic packing machine.
The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.
4, Pulse dust collector.
The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.
5, Control cabinet.
PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.
5. Raw Materials of Easy Installation Dry Mortar Mixing Plant.
1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.
6. Application of Easy Installation Dry Mortar Mixing Plant.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
7.Our company.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
8. FAQ
1. What product can this production line make?
A: Our automatic dry mortar production line can make all kinds of dry mortar, such as wall
putty, plaster, gypsum mortar, cement mortar, skim coat, ceramic tile adhesive, tile glue, tile grout, tile joint, and so on.
2. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards,
and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. Can I visit your factory?
A: Yes! Welcome to visit our factory, many domestic and international customers visit our factory every year. We can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
5. What is the capacity of your dry mortar plant?
A: We have dry mortar plant capacity from 3-50T/H as your requirement, And also we can customize the machine for you.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
