Automatic Packing Dry Mortar Production Line Wall Putty Plaster Skim Coat Sand Cement Mixer Tile Adhesive Glue Grout Making Machine

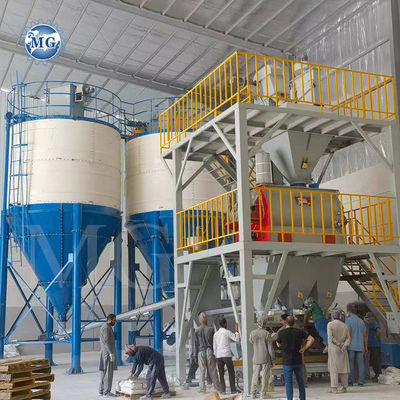

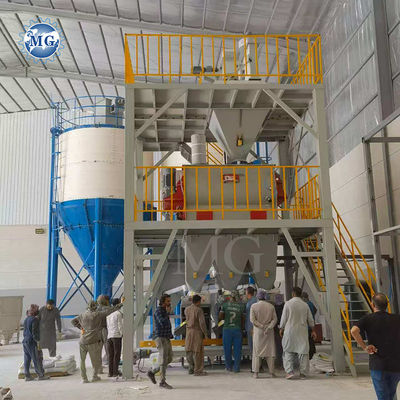

1. Description of Automatic Weighing Dry Mortar Mixing Plant.

This production line adopted latest Germany Technology, the silo is in tower type,and latest management system is applied in automatic control,improved the man-friendly operation in large extent.The capacity of this automatic dry mortar production line can reach 10-80 T/H.

2. Advantages of Automatic Weighing Dry Mortar Mixing Plant.

1, A high degree of intelligence. It is controlled by the control system with program and realizes total automation of automatic batching,automatic weighing, automatic feeding, automatic mixing and automatic packing.

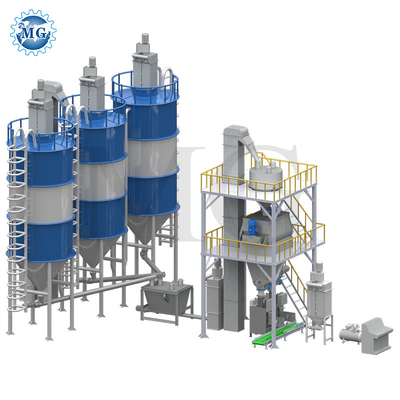

2, The design of tower layout structure, shorten the transportation distance and increases the production capacity.
3. The use of agravic biaxial mixer has high mixing uniformity, and materials with large differences in physical properties particle size and shape do not easily segregate when mixed.

3. Product Configuration of Automatic Weighing Dry Mortar Mixing Plant.

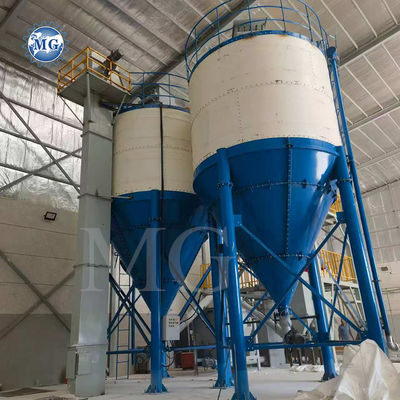

1. Raw Material Storage Silo:

The silo is used to store dry building raw material powder, such as sand, cement, fly ash, slag, calcium carbonate powder and so on. MG standard silos will equips level regulars, air breaking device, e-dust collector, pressure safety valve and complete set of assemble accessories. When material feeding air breaking device can help air exhausting from silo inside, e-dust collector clear the dust on the top; Level regulars can detect the maximum and minimum of material in hopper, so that to remind people feed material timely; Safety valve is to prevent material discharge easily. Material can discharge quickly when it works with screw conveyor.

2. Bucket elevator.

This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.

3. Automatic weighing system.

This is an automatic batching system that greatly saves manpower and material resources. Machine around equips three S-type sensors, which can get exact value when machine running. Input the weight of each raw materials accordingly to the formulation, high precision, reduce weighing error,save labor cost, improve the output.

4. Twin shaft agravic paddle mixer.

This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.

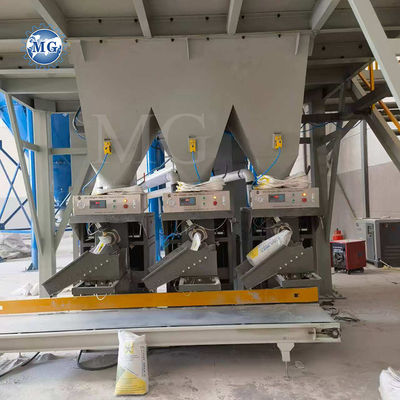

5. Automatic packing machine.

The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.

6. Pulse dust collector.

The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.

7. Control cabinet.

PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.

4. Working Principle of Automatic Weighing Dry Mortar Mixing Plant.

When the dry mortar mixing plant works, firstly, different kinds of raw material will be transported into the silos by bucket elevator or pump truck, secondly, different kinds of raw material will be conveyed from the raw material silo to the automatic weighing scale in the ratio of formula by screw conveyor, thirdly,the premix raw material will be lifted into the premix hopper by bucket elevator, fourthly, the premix material will get into the twin shaft paddle mixer and be mixed uniformly, fifthly,the mixed material will get into the automatic packing machine and be packed, finally, the packed bag will be conveyed to next process by the belt conveyor.

5. Raw Materials of Automatic Weighing Dry Mortar Mixing Plant.

1. Cementing materials: cement, lime, gypsum.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite, etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder, etc.
4. Water-retention and thickening material.
5. Chemical additives.

6. Application of Automatic Weighing Dry Mortar Mixing Plant.

Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.

7.Our company.

Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.

The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.

MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
