Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant

Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant
Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant
Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant

Large Image :  Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE BV ISO 9001:2008
Model Number: MGDM3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Stand seaworthy packaging
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Contact Now

Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant

Description
Product Name: Dry Powder Mixing Capacity: 10-30 T/H
Mixer: Twin Shafts Paddle Mixer Raw Material: Sand,Cement,Gypsum,etc
Workers: 3-4 Persons Mixing Time: 3-5 Minutes/Batch
Packing Machine: Valve Port Packing Machine Sand Dryer: As Demand
Packing Range: 15-50KG/bag
Highlight:

PLC Control Dry Mix Plant

,

Full Automatic Dry Mix Plant

,

Cement Powder Dry Mix Plant

Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant



Introduction of MG Automatic Dry Mix Plant:

Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in job-site.



The tower type dry-mix plant is arranged from top to bottom according to the production process, the production process is smooth, the product variety is large, and the cross-contamination of raw materials is small. It is suitable for the production of ordinary mortar and various special mortars. In addition, the entire production line covers a small area, has a outward appearance, and has relatively low energy consumption. However, compared to other process structures, the initial investment is relatively large.

Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant 0

Working Princple of MG Automatic Dry Mix Plant:

1. Different kinds of raw material will be filled in silos by bucket elevator or pump truck

2. According to the product proporation recorded on PLC, different kinds of raw material will be conveyed and from the raw material silo to the automatic weighing scale by screw conveyor one by one.

3. the batched raw material will be lifted into the premix hopper by bucket elevator

4. the premix material will get into the twin shaft paddle mixer and be mixed uniformly.

5. After 3-5min mixing, the mixed material will be discharged to the End product silos for packing prepare

6. Automatic packing, the packed bag will be conveyed to next process by the belt conveyor.



Main Parameter of MG Automatic Dry Mix Plant:
No. Name Model
1 Raw Material Storage System Detachable Silo
2 Conveying System I Screw Conveyor
II Indoor Bucket Elevator
III Outdoor Bucket Elevator
3 Small additives &weighting system
4 Batching & Weighing System Batching & Weighing Hopper
5 Mixing System I Double Shaft Paddle Mixer
II Premix Hopper
III End Product Hopper
6 Packing System Automatic Robot Valve Port Packing machine
7 Control System PLC Control Cabinet
8 Dedust Part Pulse Dedust Filter
9 High Pressure Air Supply Air Compressor
10 Steel Structure 2-Layer Steel Platform
11 Bag Belt Conveyor  Roller type belt conveyor
12 Cleaning and climbing conveyor Dust Cleaning and climbing roller conveyor
13 Production date printer Production date printer
14 Palletizing system Palletizing machine
15 wrapping system wrapping machine



Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant 1

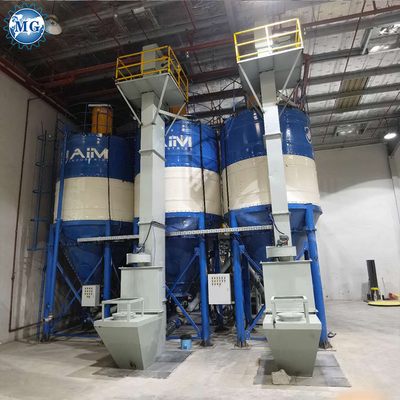

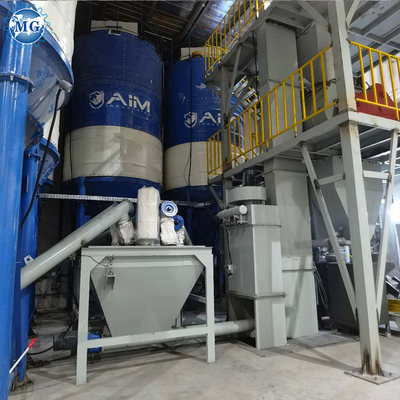

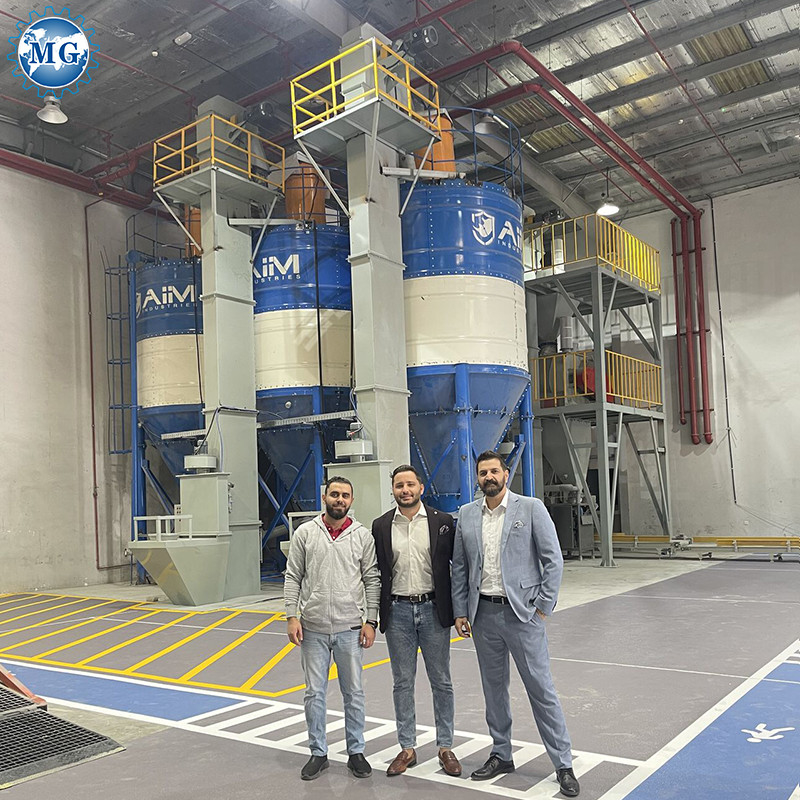

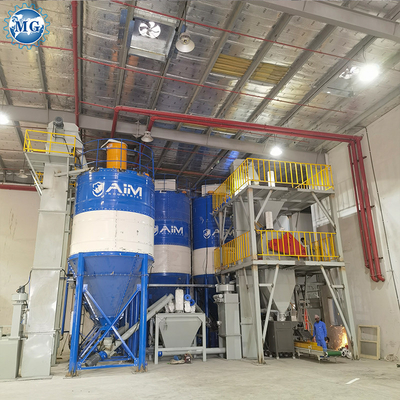

 Other successful site of MG Automatic Dry Mix Plant:
High Quality Dry Powder Mortar Production Line Wall Putty Sand Cement Mixer Equipment Ceramic Tile Adhesive Making Machine
High Quality Dry Powder Mortar Production Line Wall Putty Sand Cement Mixer Equipment Ceramic Tile Adhesive Making Machine

Machine Loading of MG Automatic Dry Mix Plant:
High Quality Dry Powder Mortar Production Line Wall Putty Sand Cement Mixer Equipment Ceramic Tile Adhesive Making Machine

Full Automatic PLC Control Dry Sand Cement Powder Mortar Dry Mix Plant 5

Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer,screw ribbon mixer machine,twin shaft paddle mixer machine,impulse dust collector,automatic packing machine,and so on.MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 70 countries,such as Canada,Russia,Korea,Malaysia,the United Arab, Emirates, Argentina, Chile, Ecuador, Morocco, South Africa, Nigeria,etc.MG will be willing to work with you to seek common development and create brilliance.Welcome to inquiry on our products.

High Quality Dry Powder Mortar Production Line Wall Putty Sand Cement Mixer Equipment Ceramic Tile Adhesive Making Machine

If you are interested in our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
