Automatic 10-20TPH Dry Mortar Plant Sand Cement Mixer Tile Adhesive Machine

Automatic 10-20TPH Dry Mortar Plant Sand Cement Mixer Tile Adhesive Machine

1. Description of Automatic 10-20TPH Dry Mortar Plant

The automatic dry mix powder mortar plant is an automatic powder mixing equipment. The proposed mixing station consisting of a combination of a twin-shaft mixer and a batching system can fully utilize the advantages of the batching system and the mixer. The operation is simple and convenient. The Chinese and English menus show that the status of each device is simulated and displayed with an audible and visual alarm. When working at the mixing station, after only a small number of buttons are operated, the entire work process is transferred to the computer control.

2.Product Configuration of Automatic 10-20TPH Dry Mortar Plant

3. Working Principle of Automatic 10-20TPH Dry Mortar Plant.

(1),Raw Material Storage Silo:

The silo is used to store dry building raw material powder, such as sand, cement, fly ash, slag, calcium carbonate powder and so on. MG standard silos will equips level regulars, air breaking device, e-dust collector, pressure safety valve and complete set of assemble accessories. When material feeding air breaking device can help air exhausting from silo inside, e-dust collector clear the dust on the top; Level regulars can detect the maximum and minimum of material in hopper, so that to remind people feed material timely; Safety valve is to prevent material discharge easily. Material can discharge quickly when it works with screw conveyor.

(2),Bucket elevator.

This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.

(3), Automatic weighing system.

This is an automatic batching system that greatly saves manpower and material resources. Machine around equips three S-type sensors, which can get exact value when machine running. Input the weight of each raw materials accordingly to the formulation, high precision, reduce weighing error,save labor cost, improve the output.

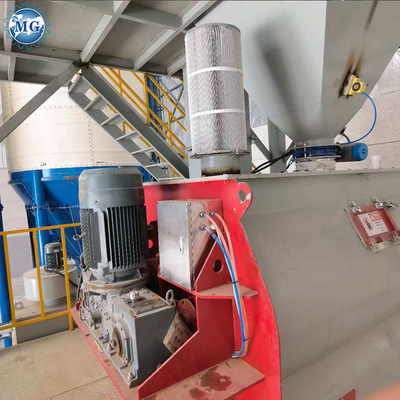

(4),Twin shaft agravic paddle mixer.

This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.

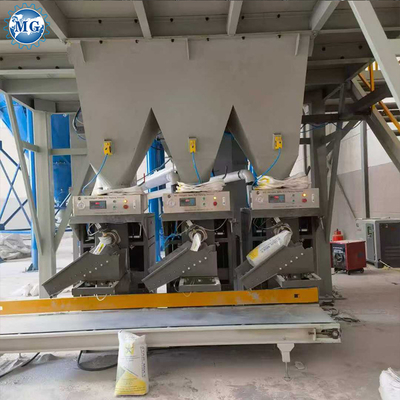

(5),Automatic packing machine.

The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.

(6),Pulse dust collector.

The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.

(7),Control cabinet.

PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.

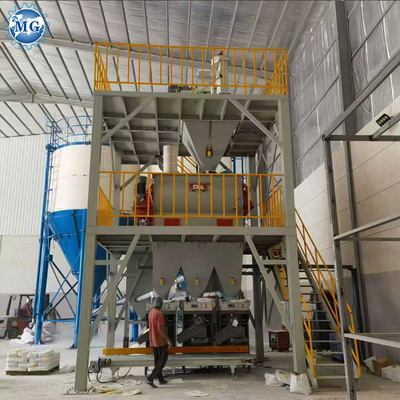

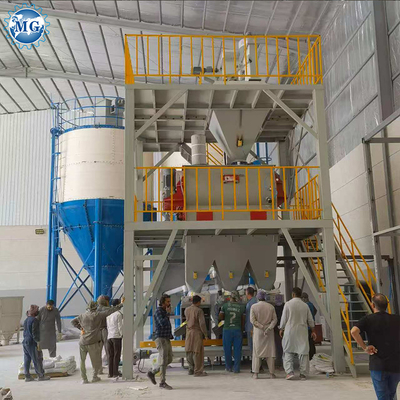

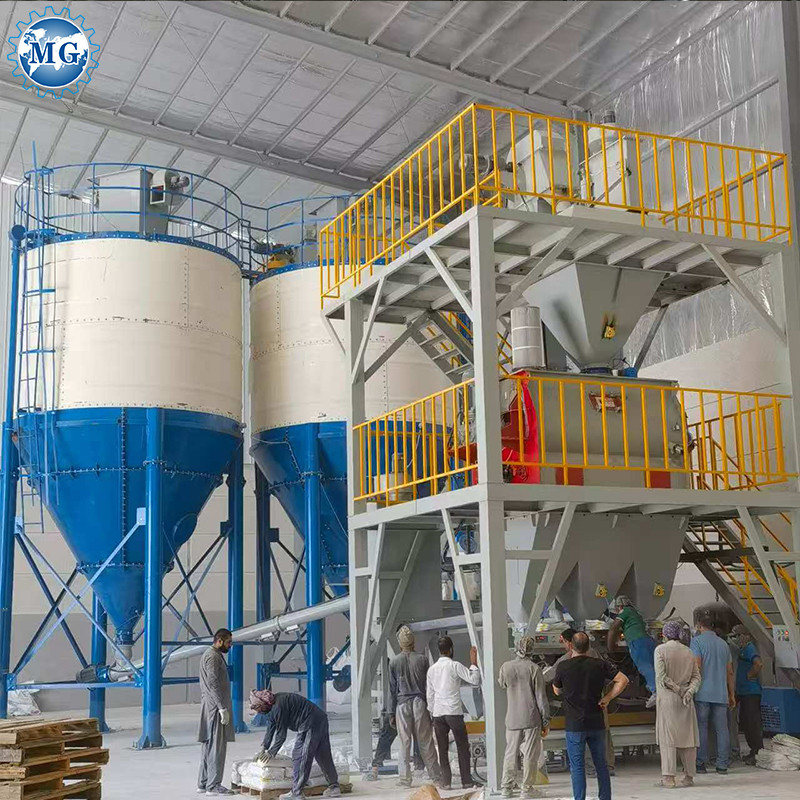

4. Working site of Automatic 10-20TPH Dry Mortar Plant:

​5. Application of Automatic 10-20TPH Dry Mortar Plant

We are professional manufacturer of dry mortar plant and sand dryer plant over 24 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.

Welcome your inquiry and visiting!
