MG series Dry Powder Mortar Manufacturing Plant is based on the simple dry mortar plant. It change the Ribbon mixer into double shaft paddle mixer. The double shaft paddle mixer is high efficiency and it can mix one batch material within 3-5 minutes, the mixer also equip special fiber dispersing system. It can realize manual feeding and automatic packaging of different kinds of dry mortars.
1. Working Principle of CE Dry Mix Powder Mortar Manufacturing Plant.
When the ceramic tile adhesive dry mortar manufacturing plant works, firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor, secondly, several kinds of raw material will be mixed by the twin shaft paddle mixer, thirdly, the mixed material will be transported into the end product silo by second screw conveyor, fourthly, the finished product will be packed into bags by packing machine.
2. Advantages of CE Dry Mix Powder Mortar Manufacturing Plant.
This improve dry mortar mixing plant only occupies area: <20 m2, height:<3.5 m, workers required:2-3 persons, capacity:4-5 t/h, size:6000*3000*3200 mm, power:35.5 kw, it's simple but efficient and practical dry mortar plant, and it's easy operation and maintenance, you can devote low investment, and produce all kinds of dry mortar with this improve production line, it's the best choice for those starter with limited investment budget and better quality product.
3. Raw Materials of CE Dry Mix Powder Mortar Manufacturing Plant.
Main material: sand, cement, gypsum, fly ash, limestone, calcium ash, vitrified micro bubbles, etc.
Additives: HPMC, citric acid, reinforcing agent, etc.
4. Application of CE Dry Mix Powder Mortar Manufacturing Plant.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
5. Parameter of CE Dry Mix Powder Mortar Manufacturing Plant.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging |
6. Product Details of CE Dry Mix Powder Mortar Manufacturing Plant.

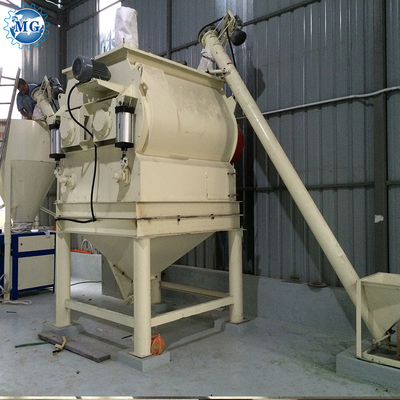

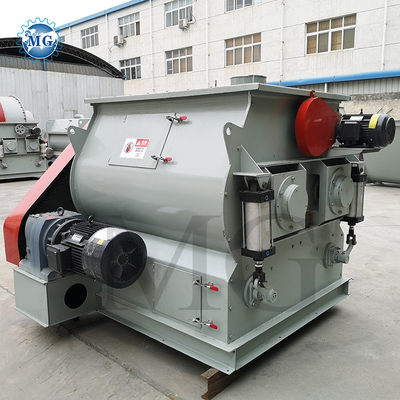

1, Twin shaft agravic paddle mixer.
This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
The screw conveyor is Φ165X3500mm, the mixer mortar is transferred from mixer to finish product hopper.
3. Finished Product Storage Silo.
The finished product hopper is about 2m³, to store the finished material and prepare for the packing machine, which improves the efficiency a lot.
4. Automatic Packing Machine.
Automatic dry mortar packing machine,valve type, 15-50kg/bag adjustable, 4kw, the packing speed is about 5-6s/bag. High packing speed, high weighing accuracy, high degree of automation, simple operation,and easy maintance.
0.25m³, 2.2kw, providing air source for automatic packing machine and finished product hopper,achieving quick packing and broken arch of finish product hopper.
7. Our Services.
Pre-sale service
1) Once got your inquiry, we will reply to you in 24 hours;
2) High quantity and quantity assured;
3)Favorable price as we are manufacturer;
4) Provide professional technical and project; solutions online or by telephone ;
5) Well-trained and experienced staff to answer all your inquiries in fluent English and Russia;
6)OEM & ODM is welcomed. OEM brand is available;
7)Assist clients to prepare for the first construction scheme and supply foundation drawing.
After-sale service
1) Assist clients to prepare for the first construction scheme and supply foundation drawing.
2)Oversea installation and provide technical exchange, train client to operate the machine.
3) Supply spared and accessory parts at favorable price for long-term.
4)Spare part are original, authentic, good quality.
5)They can be available from stock, and sent to clients, immediately by sea, guarantee clients to receive it in shortest time.
6) Providing following up after-sale service.
8. FAQ
1. What product can this production line make?
A: Our automatic dry mortar production line can make all kinds of dry mortar, such as wall putty, plaster, gypsum mortar, cement mortar, skim coat, ceramic tile adhesive, tile glue, tile grout, tile joint, and so on.
2. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. What are the payment terms?
A: We usually accept T/T, LC,western union,Alibaba assurance,Paypal,and so on.
5. What is the capacity of your dry mortar plant?
A: We have dry mortar plant capacity from 3-30T/H as your requirement, And also we can customize the machine for you.
6. Can you install the dry mortar plant in my country?
A: Yes. All of our engineers have passports. We can send experienced engineers to the customer's site to guide equipment installation, debug the production line until it is put into production, we will also provide installation instructions, layout drawings, assembly drawings, etc. If the customer has his own engineer, he can install the equipment according to the installation steps drawings we provide, and we can also guide the installation with online videos.
7. Can you provide formula of different kind of dry mortar?
A: Yes,we can,we have been professional dry mortar production equipment supplier for more than 20 years,we have many customers all over the world,and we are very experienced in dry mortar production field,we are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association,we can provide all kinds of best formula for our customers.
