MGDM-3.1 semi automatic dry mix powder mortar plant also called energy-saving dry mortar mixing production line, dry mortar mixing machine, dry mortar mixing equipment. Which can feed various materials into the hopper, under the automatic control system, this production line can realize automation in collecting, feeding, mixing and packing. It is the ideal selection for set up a dry mortar factory with reasonable price and quick refund.
1. Raw Materials of PLC Control Dry Mix Powder Mortar Mixing Plant.
Raw material used in the dry powder mortar mixing plant:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
2. Application of PLC Control Dry Mix Powder Mortar Mixing Plant.
The simple dry construction mixture mixing plant can produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
3. Product Details of PLC Control Dry Mix Powder Mortar Mixing Plant.
1, Bucket elevator.
This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.
2, Twin shaft agravic paddle mixer.
This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.
3, Automatic packing machine.
The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.
4, Pulse dust collector.
The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.
5, Control cabinet.
PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging
|

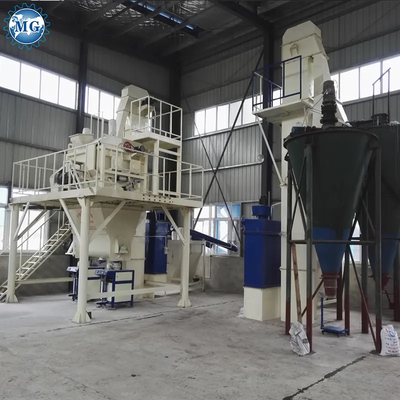

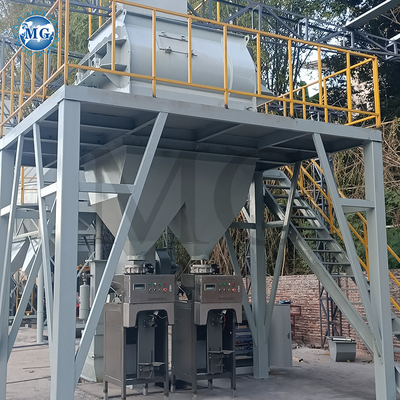

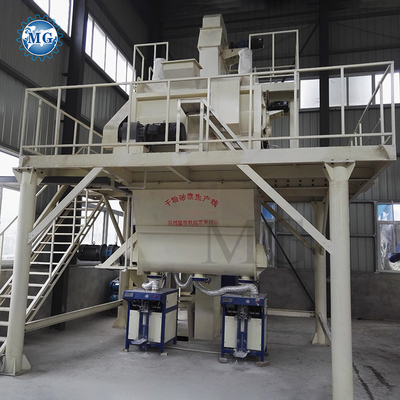

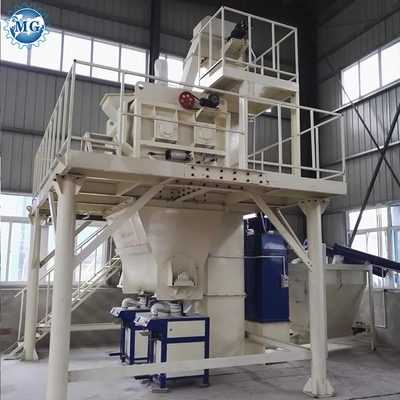

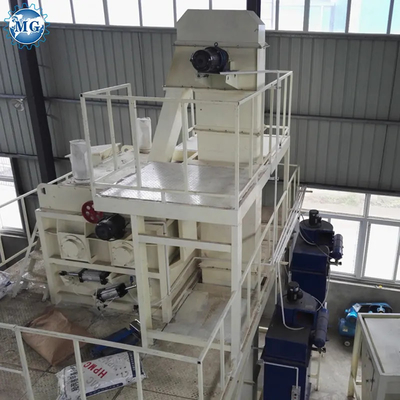

5. Successful Projects of PLC Control Dry Mix Powder Mortar Mixing Plant.
6. Working Principle of PLC Control Dry Mix Powder Mortar Mixing Plant.

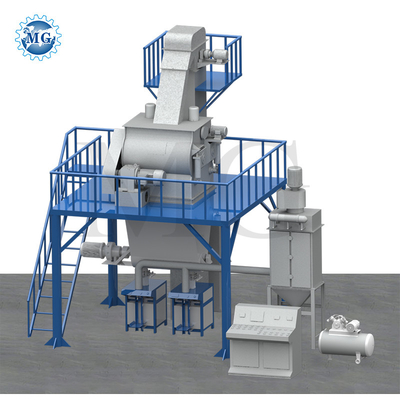

Our semi automatic dry mix powder mortar mixing plant include a bucket elevator, a twin shaft paddle mixer machine, a finished product hopper, one or two valve type packing machine, a steel frame, a air compressor machine, a electric control cabinet, etc
When the Semi-automatic Dry Mix Powder Mortar Plant works, firstly, different kinds of raw material will be transported into the twin shaft paddle mixer by bucket elevator, secondly, different kinds of raw material will be mixed uniformly in the mixer machine, thirdly, the mixed material will get into the automatic packing machine and be packed, our packing machine can pack 15-50 kg per bag product, the packing speed is about 4-6 s per bag.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years. The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
14. FAQ
1. What is the capacity of your dry mortar plant?
We have dry mortar plant capacity from 3-50T/H as your requirement, and also we can customize the machine for you.
2. How many workers are needed to operate the equipment?
Our 3-4 t/h simple dry mortar plant need 2-3 workers,and our 6-8 t/h semiautomatic dry mortar plant and 10-12 t/h automatic dry mortar plant need 3-4 worker.
3. Are you a trading company or a manufacturer?
We are the factory.
4. Product quality assurance?
Zhengzhou MG Industrial Co,.Ltd provides our customers with a 12-month warranty on the delivery date of the machines we export.
During the warranty period, if any material or workmanship defects occur during normal operation, we will replace or repair defective parts at our own discretion.
5. What information should the customer give us so that we can provide the appropriate quotation and service?
What is your final product?
What is your raw material?
What is your capacity?
6. How long is your equipment warranty? Does your company supply spare parts?
The warranty period of the rotary kiln is one year. We will provide spare parts for you at the lowest price.In the warranty period, if any material or workmanship defects occur during normal operation, we will replace or repair defective parts as appropriate.
7. If I need a full production line, can you help us design and build it?
Yes, we can help you design a complete production line and give you relevant professional advice. We have established many projects in China and overseas.
8. Can we visit your factory?
Yes. You can visit our factory anytime you want.
If you are interested to our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
