Automatic Tower Type Dry Mix Powder Mortar Mixing Machine Wall Putty Sand Cement Mixer Tile Adhesive Glue Grout Production Line

Name: Automatic Tower Type Dry Mix Powder Mortar Mixing Machine Wall Putty Sand Cement Mixer Tile Adhesive Glue Grout Production Line
Brand: Zhengzhou MG Industrial Co.,Ltd
SKU: MGDM3.7
Price: 32,100.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: MG

Certification: CE BV ISO 9001:2008

Model Number: MGDM3.7

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Stand seaworthy packaging

Delivery Time: 20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Wall Putty Sand Cement Mixer, Tile Adhesive Glue Grout Production Line


Raw Material:	Sand,Cement,Gypsum,etc	Application:	Dry Powder Mixing
Capacity:	10-30 T/H	Color:	Grey/White/Blue Or Customized
Power:	83kw	Size:	800080008000mm
Workers:	3-4 Persons	Formula:	Provided
Mixing Time:	3-5 Minutes/Batch	Packing Machine:	Valve Port Packing Machine

Raw Material:	Sand,Cement,Gypsum,etc
Application:	Dry Powder Mixing
Capacity:	10-30 T/H
Color:	Grey/White/Blue Or Customized
Power:	83kw
Size:	800080008000mm
Workers:	3-4 Persons
Formula:	Provided
Mixing Time:	3-5 Minutes/Batch
Packing Machine:	Valve Port Packing Machine

Product Description

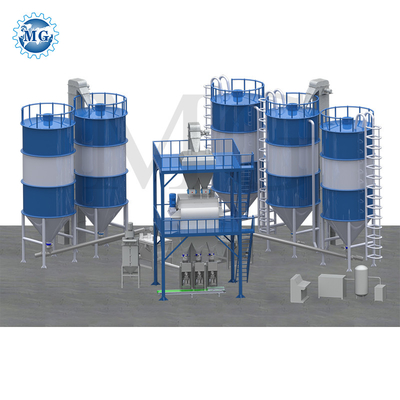

Automatic Tower Type Dry Mix Powder Mortar Mixing Machine Wall Putty Sand Cement Mixer Tile Adhesive Glue Grout Production Line 0

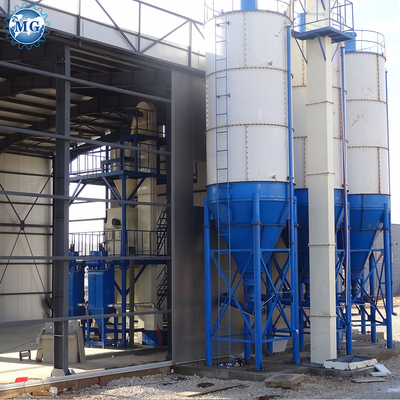

Automatic Tower Type Dry Mix Powder Mortar Mixing Machine Wall Putty Sand Cement Mixer Tile Adhesive Glue Grout Production Line 1

This plant adopted latest Germany Technology,the silo is in tower type, and latest management system applied in automatic control, improved the man-friendly operation and automatic in large extent. The capacity of this automatic dry mortar production line at 10-30 ton per hour. It can realize automatic batching, automatic weighing, automatic conveying, automatic mixing and automatic packaging and automatic palletizing, achieving the biggest capacity with the least manpower.

The advantages of our Automatic dry mortar production line.

1, A high degree of intelligence. It is controlled by the PLC control system and realizes automatic automation of automatic feeding, automatic batching, automatic weighing, automatic conveying, automatic mixing, automatic packaging and automatic pallatizing.

2, The ingredients are accurate, can automatically calculate the dosage of every ingredient and automatically weighing.

3, The use of tower layout structure, shorten the transportation distance and raise production efficiency.

4. The use of a biaxial mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.

Raw Material

1. Cementing material: cement, lime, plaster.

2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.

3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.

4. Water-retention and thickening material.

5. Chemical additives.

Applications

The final product of our dry mix powder mortar plant include all kinds of dry mortar, such as wall putty, skim coat, plaster mortar, gypsum mortar, ceramic tile adhesive, tile glue, tile grout, tile joint, etc.

Working Princple

When the dry mortar manufacturing plant works, firstly, different kinds of raw material will be transported into the silos by bucket elevator or pump truck, secondly, different kinds of raw material will be conveyed from the raw material silo to the automatic weighing scale in the ratio of formula by screw conveyor, thirdly, the premix raw material will be lifted into the premix hopper by bucket elevator, fourthly, the premix material will get into the twin shaft paddle mixer and be mixed uniformly, fifthly, the mixed material will get into the automatic packing machine and be packed, finally, the packed bag will be conveyed to next process by the belt conveyor.

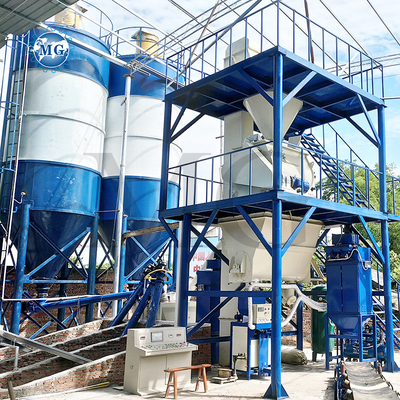

Automatic Tower Type Dry Mix Powder Mortar Mixing Machine Wall Putty Sand Cement Mixer Tile Adhesive Glue Grout Production Line 10

Model	2000L Mixer plant	3000L Mixer plant	4000L Mixer plant	6000L Mixer Plant
Capacity	10-12T/H	15-20T/H	20-25T/H	30-50T/H
Machine height	8-10m	10-14m	10-14m	15-20m
Total power	80-90KW	90-100KW	90-100KW	100-120KW
Worker required	2-3 person	3-4 person	3-4 person	3-4 person
Workshop required	500-600m2	600-800m2	600-800m2	800-1000m2
Bag belt conveyor	B500X5000mm	B500X5000mm	B500X5000mm	B500X5000mm

China Zhengzhou MG company has many projects in China and other countries. We have a lot of experience in dry mortar equipment installation and dry mortar production, we can provide professional project and process design, and we can provide a lot of solutions during the production of dry mortar, including the processing improve and the formula of all kinds of dry mortar.

Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer,screw ribbon mixer machine,twin shaft paddle mixer machine,impulse dust collector,automatic packing machine,and so on.

1. Are you manufacturer or trading company?

We are factory, established in 2003.

2. How many workers are needed to operate the equipment?

Our 10-50 t/h automatic dry mortar production line needs about 3-4 workers.

3. What is your payment method?

We usually accept T/T, LC,western union,Paypal,and so on.

4. How long is the warranty?

12 months, with in this period we provide you technical services for free.

5. If I need the complete dry mortar plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many dry mortar projects in China & Overseas.

If you are interested in our dry mortar production line, please feel free to send us inquiry or leave your contact number for us.
