Intelligent PLC 10-30 T/H Dry Mix Powder Mortar Plant Wall Putty Sand Cement Mixer Ceramic Tile Adhesive Grout Making Machine

1.Description of Intelligent PLC Dry Mix Powder Mortar Plant.

The intelligent PLC dry mix powder mortar plant is an automatic powder mixing equipment. The proposed mixing station consisting of a combination of a twin-shaft paddle mixer and a batching system can fully utilize the advantages of the batching system and the mixer. The operation is simple and convenient. The Chinese and English menus show that the status of each device is simulated and displayed with an audible and visual alarm. When working at the mixing station, the worker just need to operate a small number of buttons, the entire work process is transferred to the computer control, then it will work automatically.

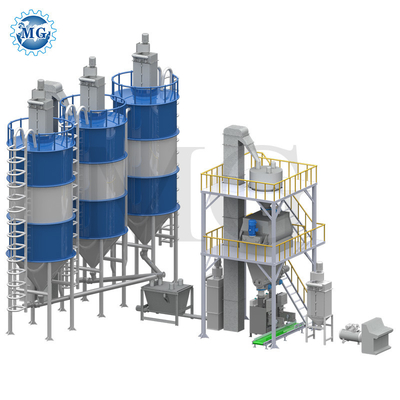

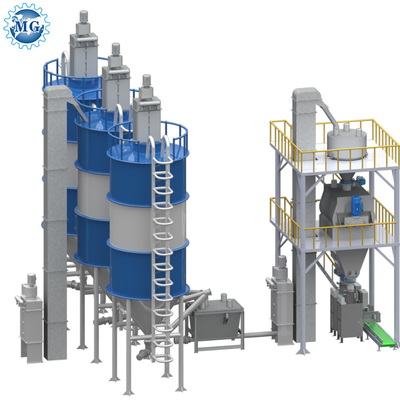

2.Product Configuration of Intelligent PLC Dry Mix Powder Mortar Plant.

1,Raw Material Storage Silo:

Customized volume 60T, 100T, 150T, Easy transportation, waterproof manufacturing and reasonable design.

2,Bucket elevator.

High efficient, Good sealing, Easy assemble, Environment protection, Easy maintenance.

3, Automatic weighing system.

High efficient self-measurement, Highly sensitive, High accurate digital display.

4,Twin shaft agravic paddle mixer.

High Efficiency, equip with fly cut for fiber breaking, Mixing time 3-5 minutes per batch.

5,Automatic packing machine.

High accuracy, high speed, Equip bag auto pushing system.

6,Pulse dust collector.

High efficiency, strength dust collecting, pulse controller control.

7. Air compressor machine.
High efficiency, easy operation, long lifetime.

8,Control cabinet.
Famous brand PLC, Intelligent and computer control.

3. Working Principle of Intelligent PLC Dry Mix Powder Mortar Plant.

When the automatic feeding dry mix powder mortar plant works,firstly,different kinds of raw material will be transported into the silos by bucket elevator or pump truck,secondly,different kinds of raw material will be conveyed from the raw material silo to the automatic weighing scale in the ratio of formula by screw conveyor,thirdly,the premix raw material will be lifted into the premix hopper by bucket elevator,fourthly,the premix material will get into the twin shaft paddle mixer and be mixed uniformly,fifthly,the mixed material will get into the automatic packing machine and be packed,finally,the packed bag will be conveyed to next process by the belt conveyor.

4. Raw Materials of Intelligent PLC Dry Mix Powder Mortar Plant.

5. Application of Intelligent PLC Dry Mix Powder Mortar Plant.

6.Our company.

Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer,screw ribbon mixer machine,twin shaft paddle mixer machine,impulse dust collector,automatic packing machine,and so on.

MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 70 countries ,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates, Argentina, Chile, Ecuador, Morocco, South Africa, Nigeria, etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.

1.What is ceramic tile adhesive?
Tile adhesive is also called adhesive. This kind of tile adhesive is a new type of material. It is
widely used and has very strong adhesion. It can replace cement mortar. If tile adhesive is used to bond tiles, it can effectively avoid problems such as hollowing and falling off of tiles. , it is very practical.

2.What is the attentions we should pay when we use ceramic tile adhesive?
1).Because the adhesiveness of the tile adhesive is very large, it is necessary to pay attention to stirring evenly when using it.It is best to use an electric mixer for stirring, which can better ensure the uniformity of the tile adhesive.
2).When using tile adhesive, pay attention to protective treatment to avoid the phenomenon of tiles falling off, especially in rainy days, do not directly contact with tile adhesive to avoid reducing the adhesiveness of tiles.

3.Do you have your own factory?
We have our own factory. Located in Zhengzhou City, Henan Province, China, welcome to visit our factory.
In addition, we have long-term cooperative relationships with some excellent raw material suppliers to ensure that the prices of the products we supply are lower than other foreign trade companies.

4. How long is the warranty?
12 months, within this period we provide you technical services for free.

5.What kind of product can this production line make?
Our automatic dry mortar mixing plant can make all kinds of dry mortar,such as inner and outer wall putty,plaster,skim coat,ceramic tile adhesive,tile grout,masonry mortar,and so on.

6. If I need the complete dry mortar plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many dry mortar projects in China & Overseas.
