Simple Dry Powder Mortar Production Line Wall Putty Skim Coat Sand Cement Mixer Equipment Ceramic Tile Adhesive Making Machine
1,Description of Ceramic Tile Adhesive Dry Powder Mortar Production Line.
MG series Ceramic Tile Adhesive Mixing Plant is designed according to the traditional single mixer machine, and adding material transportation system, finished product storage silo and automatic packing machine.,and forms one whole simple dry mortar production line,improves the working efficiency a lot,it can finish from feeding, mixing, conveying to packing automatically.
2.Advantages of Ceramic Tile Adhesive Dry Powder Mortar Production Line.
This simple dry mortar production line only occupies area: <20 m2,height:<3.5 m,workers required:2-3 persons,capacity:3-5 t/h,size:6000*3000*3200 mm,power:20 kw,it's simple but efficient and practical dry mortar plant,and it's easy operation and maintenance,you can devote low investment,and produce all kinds of dry mortar with this simple production line,it's the best choice for those starter with limited investment budget.
Working Princple

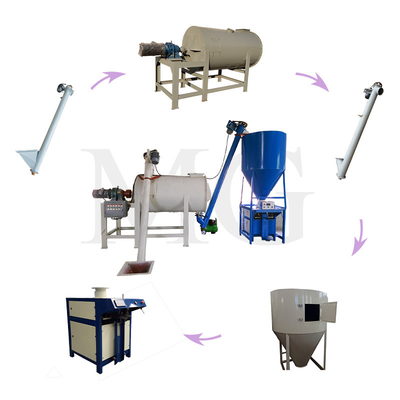

Firstly, the raw material is put into the feeding pot of screw conveyor, then transported into the mixer by screw conveyor,secondly, several kinds of raw material will be mixed by the multi ribbon screw mixer,thirdly,the mixed material will be transported into the end product silo by second screw conveyor,fourthly,the finished product will be packed into bags by packing machine.
| Model |
Capacity |
Occupied area |
Equipment height |
Manpower |
Batching and packaging |
| Simple type |
3-4t/h |
20㎡ |
3-4m |
2-3 Person |
Manual batching
Automatic packaging |
| Semi-automatic type |
6-8t/h |
50-60㎡ |
6-8m |
3-4 Person |
Manual batching
Automatic packaging |
| Full automatic type |
8-30t/h |
60-100㎡ |
8-13m |
3-4 Person |
Automatic batching
Automatic packaging |
3. Raw Materials of Ceramic Tile Adhesive Dry Powder Mortar Production Line.
4. Application of Ceramic Tile Adhesive Dry Powder Mortar Production Line.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar,anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
5.Our company.
Zhengzhou MG Industrial Co,.Ltd,one of the leading manufacturers of building material equipment in China,always provides the customers from all over the world with professional efficient solutions to high quality machine,formula technology and special additives for more than 20 years.
The main products of the company include dry mortar plant,thermal insulation mortar production line,sand dryer powder blending machine,impulse dust collector,automatic packing machine,and so on.
MG products have been widely used in more than 1000 building materials enterprises in China,and exported to more than 50 countries,such as Canada,Russia,Korea,Malaysia,the United Arab Emirates,Argentina,Chile,Ecuador,Morocco,South Africa,Nigeria,etc.
MG will be willing to work with you to seek common development and create brilliance.
Welcome to inquiry on our products.
6. FAQ
1. How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different type dry mortar plant investment are different. Low capacity low cost, we will provide you cost effective solutions.
2. What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
(1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant does not need to equip material silos while full automatic type equip silos.
(3) Semi-automatic dry mortar plant is manual feeding and automatic weighing and packaging, full automatic type can realize automatic feeding and packaging.
3. How many person required to operate this dry mortar plant?
A: Usually 2-3 workers are enough to operate this dry mortar plant.
4. What equipment and service you can provide?
A: We can provide you turnkey solutions of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after sales services, life time technical support etc.
5. What is the area required for this dry mortar plant?
A: According to different capacity, the capacity required 300-1000m2.
6. What is the total power consumption (KW)of this dry mortar plant?
A: It is about 20-80kw based on the capacity of the dry mortar plant.
7. What is the capacity of your dry mortar plant?
A: We have dry mortar plant capacity from 3-30T/H as your requirement, and also we can customize the machine for you.
8. What is the guarantee period?
A: 12 months, with in this period we provide you technical services for free.
9. Can you install the dry mortar plant in my country?
A: Yes, we will arrange engineers to your country to install the equipment and train your workers to operate the machine.
