Dry Mortar Powder Mixing Machine Plant with Sand Cement Packing Machine
1,Description of Dry Mortar Powder Mixing Machine Plant
Fully automatic dry mortar equipment plays an important role in modern construction projects with its high efficiency mixing, high automation, small footprint, low energy consumption and wide application range. With the continuous advancement of technology and the increase in market demand, this equipment will show its unique advantages in more fields and contribute to the sustainable development of the construction industry.
2.Features of Dry Mortar Powder Mixing Machine Plant
Efficient mixing: The equipment adopts a double-axis gravity-free paddle mixer or multi-layer ribbon stirring method, the overall movement speed of the material is fast, the mixing uniformity is high, and there is no dead angle, ensuring the high quality of the dry mortar.
High degree of automation: The fully automatic dry mortar equipment integrates automatic batching, mixing, packaging, and stacking, which greatly reduces manual intervention, improves production efficiency, and reduces labor costs.
Small area occupation: The equipment adopts a three-dimensional layout design, with a compact structure, a small footprint, and is easy to install and move.
Low energy consumption: The equipment focuses on energy saving and consumption reduction during the design and production process, and adopts advanced transmission systems and energy-saving materials to reduce operating costs.
Wide range of applications: The equipment can meet the production needs of dry mortar with different performance requirements, such as masonry mortar, plastering mortar, insulation mortar, waterproof mortar and other types.
3. Configuration of Dry Mortar Powder Mixing Machine Plant
| Model |
MG 2000 |
MG3000 |
MG4000 |
MG6000 |
| Discharge capacity (t/batch) |
1-1.5t/batch |
2-2.5t/batch |
3-3.5t/batch |
4-4.54t/batch |
| Mixer cylinder volume(m3) |
2 |
3 |
4 |
6 |
| Mixing time |
3-5min |
3-5min |
3-5min |
3-5min |
| Motor power |
18.5kw |
22kw |
37kw |
37kw |
| Shaft rotate speed |
43r/min |
43r/min |
43r/min |
43r/min |
| Coefficient of variation(CV) |
<=5% |
<=5% |
<=5% |
<=5% |
| Paddle blade type |
Welding |
Welding |
Welding |
Welding |
| Paddle blade quantity |
2*14=28pcs |
2*14=28pcs |
2*14=28pcs |
2*14=28pcs |
| Overall dis(mm) |
2600*1600*1650 |
3000*1600*1650 |
3000**2200*2000 |
3000*2450*2200 |

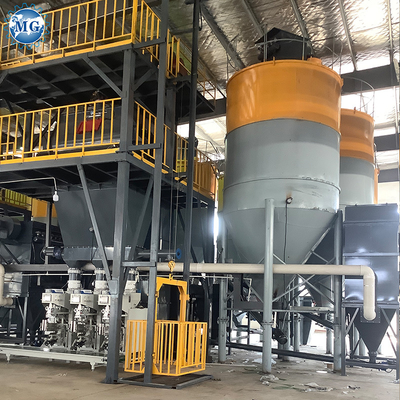

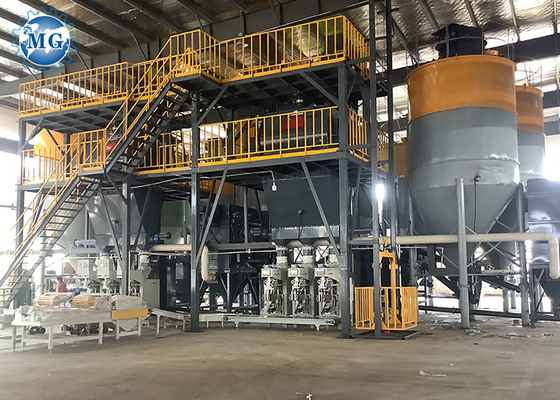

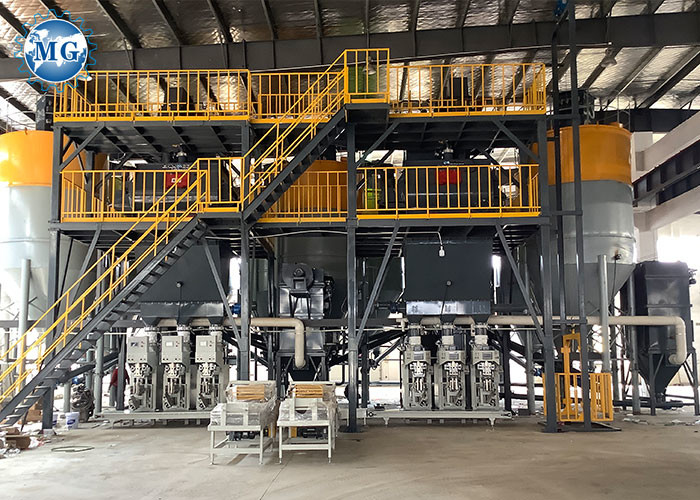

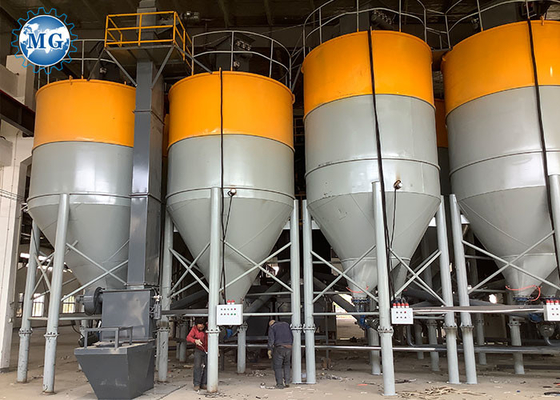

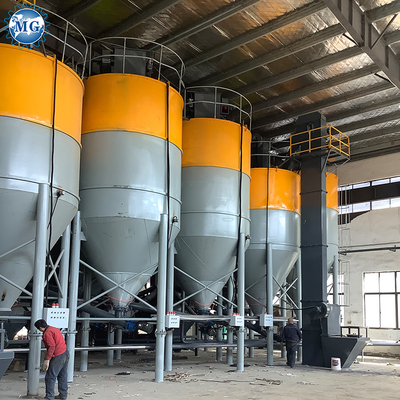

5. Working site of Dry Mortar Mixer Machine
Green environmental protection, energy saving and emission reduction, our production line pursues high efficiency while not forgetting to respect and protect the environment. Low noise and low energy consumption win social praise and market favor for your company.
"Building high efficiency and quality, starting from simplicity and excellence - your exclusive dry mortar production line! We are professional manufacturer of dry mortar plant and sand dryer plant more than 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
