10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine
10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine
10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine

Large Image :  10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine

Product Details:
Place of Origin: Henan province, China
Brand Name: MG
Certification: CE, COO, ISO
Model Number: MGDM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4000-10000/SET
Packaging Details: Standard oversea shipping
Delivery Time: 30-45 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine

Description
Product Name: Dry Mortar Production Line Capacity: 10-30T/H
Material: Carbon Steel Power: 37-100KW
Mixing Speed: 30-45r/min Control System: PLC
Warranty: 12 Months Color: Customer's Request
Batching And Weighting: Automatic System Function: Mixed Mortar Packing Machine
Highlight:

Full Auto Dry Mortar Production Line

,

Tile Adhesive Dry Mortar Production Line

,

30TPH Dry Mortar Production Line

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine


Descriptions of MG Dry Mortar Production Line Tile Adhesive Making Machine:


Dry mortar production line new machine for big business is mainly composed of a dryer, an automatic batching system, a hoist, a pre-mix silo, a small silo, a mixer, a finished product silo, a packaging machine, a dust remover, and an electric control cabinet system. A large proportion of raw materials such as cement can be manually metered and passed through a hoist into the pre-mixing warehouse. Small proportions of chemicals/additives batched such as cellulose and rubber powder can be metered into the admixture hopper through an electronic scale. Compared with the simple type, it is a step forward because the mixer is mixed, Automatic metering and packaging by valve bag packaging machine or open-mouth bag packaging machine.

Detail configuration of MG Dry Mortar Production Line Tile Adhesive Making Machine:


Model2000L Mixer3000/4000L Mixer6000L Mixer Plant10000L Mixer plant
Capacity10-12T/H15-30T/H30-40T/H50-60T/H
Machine height8-9m9-10m11-12m13-15m
Total power80-90KW90-100KW100-120KW120-150KW
Worker required2-3 person3-4 person3-4 person3-4 person
Workshop required500-600m2600-800m2800-1000m21000-1500m2
Bag belt conveyorB500X5000mmB500X5000mmB500X5000mmB500X5000mm
Pallet wrapping machineProvideProvideProvideProvide
Sand dryerAs requirementAs requirementAs requirementAs requirement


Application of MG Automatic Dry Mortar Production line Tile Adhesive Making Machine:

Dry mortar production line are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries. Dry Mortar Mixing Equipment can produce the following dry mortars:

Bonding mortarMasonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc
Decoration mortarDecorative plaster, inner and outer wall putty, colorful decoration mortar etc
Protection mortarWater-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew proof mortar, shielding mortar etc.

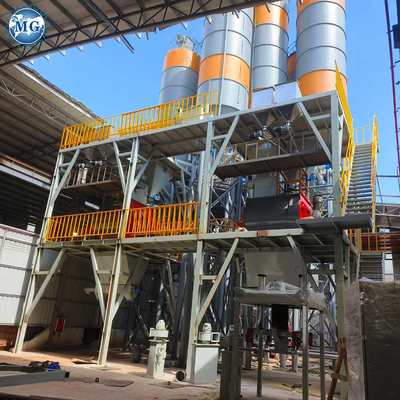

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 0

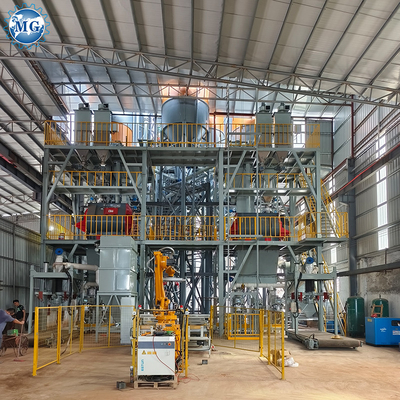

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 1

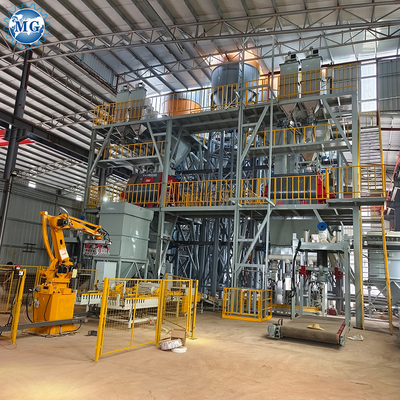

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 2

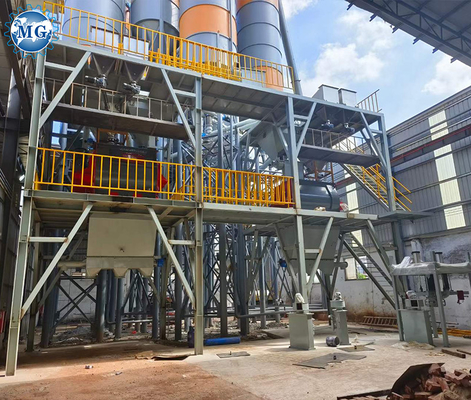

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 3

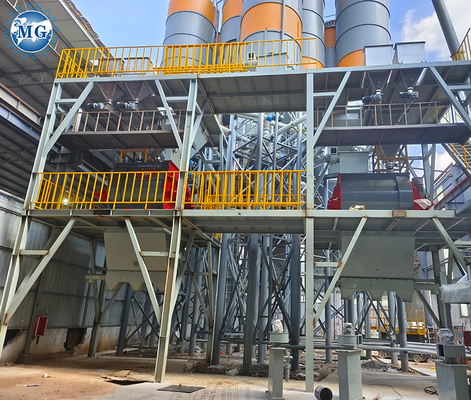

10-30TPH Full Auto Dry Mortar Production Line Tile Adhesive Making Machine 4


Green environmental protection, energy saving and emission reduction, our production line pursues high efficiency while not forgetting to respect and protect the environment. Low noise and low energy consumption win social praise and market favor for your company.



Choosing our dry mortar simple production line is to choose a shortcut to success and sustainable development. Let us work together with the power of science and technology to build a better future, make buildings stronger because of you, and make life better because of you!


We are professional manufacturer of dry mortar plant and sand dryer plant more than 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry and visiting! contact Ms. Zoey Lee: + 86 15617507836
