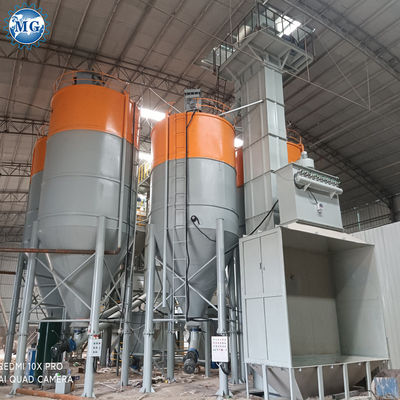

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine
10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine
10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine

Large Image :  10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE, ISO, SGS,BV
Model Number: MG-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advace payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets per month

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine

Description
Product Name: Automatic Building Material Making Machine Application: Dry Mortar Mixing And Packing
Capacity: 10-30T/H Installation Service: We Send Engineer To Oversea For Guiding Installation
Workers Required: 3-4 Workers Motor Brand: China Famous Brand CE Certificate Motor
Control System: Intelligent PLC And Computer Control Raw Material: Cement, Sand, Flyash, Calcium Carbonate, Lime Powder And Additives
Voltage: 220V-440V Adjustable Mixer: Twin Shaft Paddle Mixer
High Light:

30T/H Dry Mortar Production Line

,

30T/H Tile Adhesive Machine

,

Building Material Tile Adhesive Machine

10-30T/H Dry Mortar Production Line Tile Adhesive Machine Building Material Making Machine





10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 0





1. Description Of MG Automatic Dry Mortar Production Line:



MG Automatic Dry Mortar Production Line are widely used to produce all sorts of mortar, including putty mortar, rendering mortar, masonry mortar and waterproof mortar, etc. The full product line with advanced and high efficient dryer, mixing system, control system and dust collection system ensures quality mortar production.




2. Mechnical principle of MG Automatic Dry Mortar Production Line:

The double shaft paddle mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.



The machine can be widely applied in drying and mixing the chemical materials, metal materials, construction materials, coating materials, resins, agricultural materials, feeding stuffs, powder materials and etc.



3. Flow chart and 3D drawing of the full automatic dry mortar porduction line:

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 1



4. Parameter of MG Full Automatic Dry Mortar Production Line :
           Model 2000L mixing plant      3000/4000L               mixing plant 6000L mixing plant 10000L mixing plant
         Capacity          10-12T/H        15-30T/H        30-40T/H         50-60T/H
    Machine height              8-9m           9-10m         11-12m          13-15m
      Total power          80-90KW       90-100KW      100-120KW      120-150KW
   Worker required        2-3 person         3-4 person        3-4 person       3-4 person
 Workshop required       500-600m2       600-800m2        800-1000m2      1000-1500m2
 Bag belt conveyor     B500X5000mm     B500X5000mm     B500X5000mm    B500X5000mm
        Pallet                  wrapping machine          Provide         Provide         Provide          Provide
      Sand dryer Provide as          requirement Provide as requirement Provide as requirement Provide as requirement
         HS code     8474390000      8474390000     8474390000        8474390000



5. Stair Type Of The Automatic Dry Mortar Production Line:

It has annual production varying from 250k tons to 450k tons. The main raw material storage bin and the mixer of it are in parallel. The raw materials like sand enter the mixer through the secondary lifting, and the upper part of the mixer only retains the relatively small amount of raw materials and additive storage bins, thereby reducing the height of the storage bin and greatly reducing the project investment. In addition, dust pollution is reduced by adding a dust collector.

6. Advantage of MG Automatic Dry Mortar Production Line:

1. With high-degree intelligence

2. Easy to operate

3. Adopting computer-weighed scale and computer-packed machine to guarantee the accuracy.

4. With stable performance and high efficiency.

5. With higher efficiency and low energy consumption and low manual cost.

6. Suitable for middle and large scale enterprise



Secondly, it can produce plastering mortar such as internal and external rendering plaster, insulated dry mortar, putty and colored decorated dry mortar, etc. Thirdly, it can produce common masonry mortar, insulated masonry mortar, common terrace mortar, self-leveling mortar, water-proof mortar and other special mortar.



7. Application of MG Automatic Dry Mortar Production Line:

MG automatic dry mortar production line can be used to produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 2



8. Configuration Of MG Full Automatic Dry Mortar Production Line:



10-30T/H Dry Mortar Production Line Building Material Tile Adhesive Machine 3



9. Why choose us:


We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):



1. Over 20 years experience in this dry mortar production line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;



2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.



3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.



We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.





If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
