Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line
Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line
Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line

Large Image :  Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE,BV, ISO9001:2008
Model Number: MGDM-3.0
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Stand seaworthy packaging
Delivery Time: 7-10 working days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 40 sets per month

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line

Description
Product Name: Small Simple Dry Mortar Plant Application: Dry Mortar Mix And Packing
Mixing Time: 10-15Mins/Batch Capacity: 3T/H
Advantage: Factory Directly & Make Sure Quality Voltage: 380V-440V Customized
After-sales Services: Engineer Available To Service Machinery Overseas Workers Required: 2-3 Person
Feature: Low Invest And Easy Operation Warranty: 12 Months
High Light:

Semi Automatic Dry Mortar Ribbon Mixer

,

440V Dry Mortar Ribbon Mixer Plant

,

Simple Dry Mortar Ribbon Mixer Machine

Simple Dry Mortar Machine 1t Per Batch Ribbon Mixer semi-automatic dry mortar production plant



1.Characteristics of the Dry Mortar Blending Machine Masonry Mortar Mixer, Dry Mortar Mixer

1. Easy to installation and operation. Discharge quickly and thoroughly
2.It may achieve automatic matering and filling hence,load,weigh and packaging the materials automatically .
3.The dry mix mortar production line uses a centralized control system, making the equipment easy to operate.

2.Benefit of the Dry Mortar Blending Machine Masonry Mortar Mixer, Dry Mortar Mixer
1.It is easy to operate,2-3 people can operate ,effectively save the labor.

2.Environmental friendly:this type mixer improved the working environment,and reduced the working labor intensity.
3.It requires little investment and small occupation area but with good efficiency.greatly save capital investment.
4.This mchine is environmental-protection and energy-saving, low noise, little pollution.Greatly reduces the production cost
5. We can provide one-stop service from design to installation according to our customers' specific requirement.



Description and features of MG Semi-Automatic Dry Mortar Production Plant:

I. Additionally equipped with secondary screw conveying system, finished product storage silo, automatic packing machine based on multi spiral ribbon mixer, to composed an efficient and reasonable simple dry powder mortar mixer with low cost.

II. Occupation Area<20m2, Height <3.5m, its capacity at 25-30t per day, just only need 2-3 person,very easy to operate.

III. It can realize Automatic Conveying Material, Automatic Mixing, Automatic Filling and Automatic Packing, high efficiency and low cost, wihch is the priority selection of small and medium dry mortar factory.

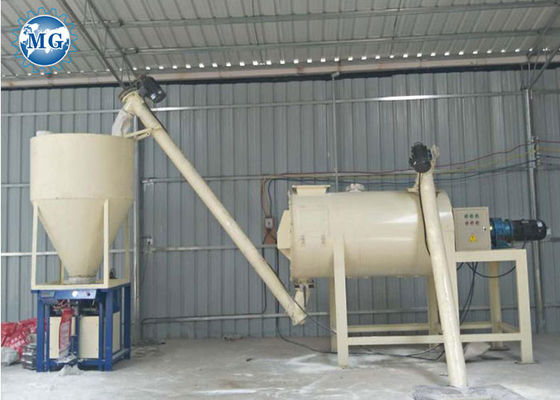

MG Semi-Automatic Dry Mortar Production Plant installed in customer factory:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 0



Technical parameters of MG Semi-Automatic Dry Mortar Production Plant:

Product name Simple dry mortar plant
Output Capacity 3T/H
worker required 2-3 people
Automatic type Manual feeding & Automatic packing
Packing bag type Valve bag
Packaging speed 6-10 seconds one 25KG bag
Workshop area required 200-300 square meters



Advantages of MG Semi-Automatic Dry Mortar Production Plant:

1) Small investment and best for individuals.

2) Small footprint, ordinary houses can build the factories.

3) Easy to operation, 2-3 people can make it. .

4) High yield, the output is 3-4T/H usually, to reach 20-25T per day.

5) Easy to operation and maintenance.



Ribbon mixer and screw conveyors equiped on MG Semi-Automatic Dry Mortar Production Plant:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 1



Finish product silo equip on MG Semi-Automatic Dry Mortar Production Plant:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 2



Valve port packing machine equip on MG Semi-Automatic Dry Mortar Production Plant:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 3



Application of MG Semi-Automatic Dry Mortar Production Plant:

Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 4

Workshop and factory photos of Zhengzhou MG:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 5



Customer visiting photos for MG Semi-Automatic Dry Mortar Production Plant:

Simple Dry Mortar Plant Ribbon Mixer 440V Semi Automatic Production Line 6



FAQ:

1. Q: The ouput of dry powder mixer ?

A: 1t/ batch, 10-15minutes / batch, 3-4t/h.

2. Q: What is it used for ?
A: Mixing sand, cement, lime and plaster ,etc.
Production dry mortar; used for dry mortar production line.

3. Q: What is the delivery time ?
A: 1> in stock : within 7 days;
2> customize: 7-15 working days.

4. Q: Quality guarantee term ?
A: 12 months warranty, but not including man-made , wearing parts and operation mixtake. if any problem during one year, we will provide spare parts for free, but buyers should pay the freight.
