Product Details:
|
| Name: | Dry Mortar Ceramic Tile Adhesive Mixing Manufacturing Plant | Model: | MGDM-3.7 |
|---|---|---|---|
| Condition: | New | Weight: | 25T |
| Mixer Type: | Twin Shaft Mixer | Mixing Time: | 3-5 Minutes |
| Worker Required: | 3-4 Person | Control System: | Intelligent Control System |
| High Light: | Putty Powder Production Machine,25T Putty Powder Machine,Ceramic Tile Adhesive Mixer Mortar |
||
Putty Powder Production Machine Ceramic Tile Adhesive Mixing Manufacturing Plant
Product Description
This production line adopted latest Germany Technology,the silo is in tower type,and latest management system applied in automatic control,improved the man-friendly operation and automatic in large extent.The capacity of this automatic dry mortar production line at 3-10 thousand tons one year
.
The advantages of our Automatic dry mortar mixing equipment.
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The ingredients are accurate, can automatically calculate the error and automatically correct.
3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
Main Configuration
| Name | Configuration | Quantity |
| Bucket elevator | Model:TD36/23,5.5kw | 1 |
| Storage silo | Model:60T,0.5kw | 2 |
| Screw conveyor | Model:Φ219*6000,7.5kw | 2 |
| Weighing hopper | Model:2m³,5.5kw | 1 |
| Bucket elevator | Model:TD36/23,4kw | 1 |
| Pre-mix hopper | Model:2m³ | 1 |
| Twin shaft mixer | mixing time:3-5min/batch,18.5+4kw | 1 |
| Finished product hopper | Volume:2m³,7.5kw | 1 |
| Automatic packaging machine | Model: Valve type Range: 15-50kg adjustable packing speed: 5-6s/bag,4kw | 2 |
| Pulse dust collector | Model:MG12,3kw | 2 |
| Platform and steel structure | 1 | |
| Air compressor | 0.6m³,7.5kw | 1 |
| Automatic control cabinet | Full set | 1 |
1. What is Dry mortar:
Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in job-site.
2. Description Of MG Automatic Putty Powder Production Machine
MG automatic Dry mortar Plant has advantages of consistent quality, automatic control, time and labor costs saving. By adding different chemical additives, it has fine properties of bond, thermal and acoustic insulation, crack-resistance, work ability, water-retention, wear-proof, anti-corrosion, etc.
MGDM-3.7 Automatic dry mortar plant is used for producing dry mortar with capacity of 10-30t/h, Which is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-36 thousand tons per year depend on the system configuration.
3. Mechnical principle of MG Putty Powder Production Machine:
The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
4. Configuration Of MG Full Putty Powder Production Machine:
1. Aggregates storage bins, powder materials silos.
2. Screw conveyors, weighing scales
3. Bucket elevators
4. Full automatic batching system
5. Pre-mixing bin
6. Mixer(Installed with triaxial mixing vanes)
7. Finished products storage bins
8. Packaging system (Open gate/valve-gate type packing machine)
9. Dust removal system(impulse type)
10. Control system to inspect the level of powder materials
11. Steel frame, platform, ladder stand, barrier
12. Main control system
13. Air compressor system: The central air compressor
14. The gas phase equilibrium system
15. Bulk materials storage system: finished mixture tanks, bulk machine.
16. Drying system
17. Alarm system
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
6. Application of MG Automatic Putty Powder Production Machine
MG automatic dry mortar plant can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar:
Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

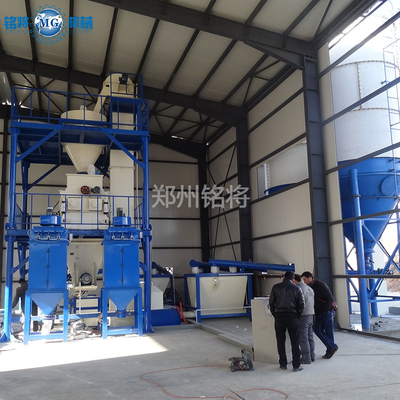

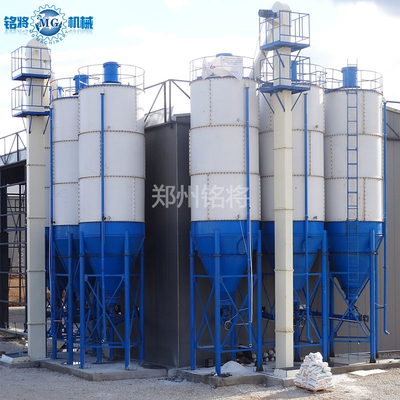

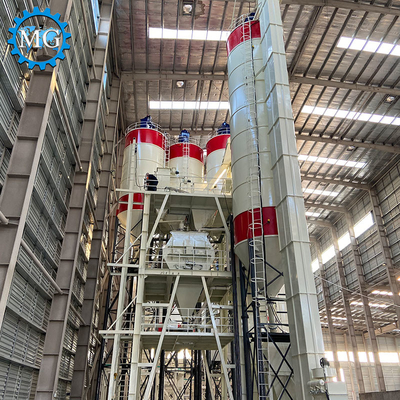

7. Successful Projects
8. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing plant!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
9. Our Service:
1) Unpon got your inquiry, We will reply to you in 24 hours.
2) Assist clients to prepare for the first construction scheme and supply foundation drawing.
3) Oversea installation and provide technical exchange, train client to operate the machine.
4) Supply spare and accessory parts at favorable price for long-term.
5) Spare part are original, authentic, good quality, can be avaible from stock, and sent to client, immediately by DHL, EMS, Fedex, and by air, gurantee client to receive it in shortest time. Strict site quality inspection system:
Installation captain inpection: Evaluate the installation level of dry mix mortar production line, Spot QA engineer inspection: Inspect the whole in installation process and key components.
Service engineer inspection: Inspect the debugging and running condition of whole production line.
