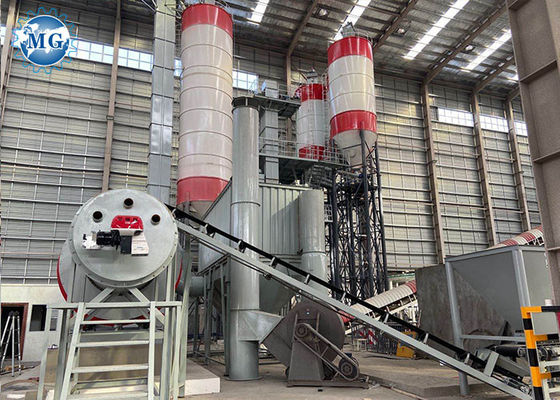

100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment

100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment
100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment
100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment 100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment 100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment 100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment

Large Image :  100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment

Product Details:
Place of Origin: Henan, China
Brand Name: MG
Certification: CE BV ISO 9001:2008
Model Number: MGDM-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advance payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Set/Month

100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment

Description
Name: Automatic Dry Mortar Mixer Machine Workers Required: 3-4 Workers
Power: 100kw Weighing And Batching: Automatic
Certificate: CE, BV, ISO9001:2008 Raw Material: Sand, Cement, Additives
End Product: Tile Adhesive, Tile Grout, Wall Putty, Skim Coat, Plaster Installation: Provided
High Light:

100kw Dry Mortar Mixer Machine

,

100kw Wall Putty Plaster Making Equipment

,

3t/h Dry Mortar Mixer Machine



Professional Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment Manufacture in China



1. Description of MG automatic dry mortar mixer machine:



MG Dry mortar mixer machine is a set of equipment that is designed to mix dried sand, cement, thickening powder, fly ash, and other functional additives together according to different recipes. The plant produces bagged or bulks dry mortar, which can be applied directly after mixed proportionally into the water and stirred for a while.

The Production Capacity You Can Choose



A) 3t/h dry mortar mixer machine

B)4-5t/h dry mortar mixer machine

C)6-8t/h dry mortar mixer machine

D)10-12t/h dry mortar mixer machine

E)20-25t/h dry mortar mixer machine

F)30t/h dry mortar mixer machine

G)40-50t/h dry mortar mixer machine



2. Working principle of MG automatic dry mortar mixer machine:



The dry mortar mixer machine for tile adhesive will dosing the raw materials of cement, sand from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a shortperiod(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, ther down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transfered to finished mortar area, ready fo sale.





3. Configuration of MG automatic dry mortar mixer machine:



Raw material silos : cement,sand, caco3a and some additives



Feeding screw: the speed can by controlled by frequency converter



Quantity dosing system: auto-dosing all raw material accurately



Mixing system: double-shaft paddle mixer ,plough mixer ,ribbon mixer or others



Packaging machine: valve-bag packing machine,open-mouth bag packing machine and others



Dust collecting system: installed at the position of feeding port, packing port



Automation control system: PLC+TOUCH SCREEN



100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment 0



4. Technical parameter of MG full automatic dry mortar mixer machine for tile adhesive:



Model 2000L mixing plant 3000L/4000L mixing plant
Capacity 10-12T/H 15-30T/H
Total power 80KW 100KW
Workshop Area 500-600m² 700-800m²
Worker Required 2-3person 3-4person




5. Application of MG full automatic dry mortar mixer machine for tile adhesive:



MG automatic dry mortar plant can be used to produce the following dry mortars:

Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.

Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.

Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.



6. Full automatic dry mortar mixer machine for tile adhesive installed in foreign countries:
100kw Dry Mortar Mixer Machine Wall Putty Plaster Making Equipment 1

7. Our Company


Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic Dry Mortar Mixer Machine!



Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.



Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.



Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.



8. Why Choose Us



We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder production line from Zhengzhou MG (compared with other suppliers):



1. Over 20 years experience in this dry mortar production line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;



2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.



3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.



We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
