|Name:||Dry Mortar Production Line||Material:||Carbon Steel|
|Weight:||25T||Worker Required:||3-4 Person|
|Mixing Time:||3-5 Minutes/batch||Installation:||Provided|
30T/H Wall Putty Production Line,
Dry Mortar Wall Putty Production Line,
30T/H Dry Mortar Manufacture Plant

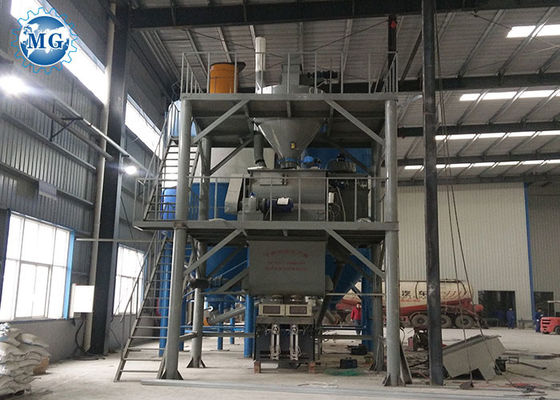

10-30T/H Dry Mortar Wall Putty Production Line Manufacture Plant
1. What is Dry mortar:
Dry mortar mainly refers to the blended masonry mortar, plastering mortar and floor tile mortar all for building construction and interior and exterior applications. Dry mix mortar or dry powder mortar is a kind of mixed product made by means of admixing the additives materials together with the dried and screened sand, cement, and fly ash in proportion.
2. Description Of MG Automatic Dry Mortar Tile Adhesive Production Line :
MG Dry Mortar Plant are widely used to produce all sorts of mortar, including putty mortar, rendering mortar, masonry mortar and waterproof mortar, etc. The full product line with advanced and high efficient dryer, mixing system, control system and dust collection system ensures quality mortar production.
3. Configuration Of MG Full Automatic Dry Mortar Tile Adhesive Production Line:
1. Aggregates storage bins, powder materials silos.
2. Screw conveyors, weighing scales
3. Bucket elevators
4. Full automatic batching system
5. Pre-mixing bin
6. Mixer(Installed with triaxial mixing vanes)
7. Finished products storage bins
8. Packaging system (Open gate/valve-gate type packing machine)
9. Dust removal system(impulse type)
10. Control system to inspect the level of powder materials
11. Steel frame, platform, ladder stand, barrier
12. Main control system
13. Air compressor system: The central air compressor
14. The gas phase equilibrium system
15. Bulk materials storage system: finished mixture tanks, bulk machine.
16. Drying system
17. Alarm system
4. Features of MG Automatic Dry Mortar Tile Adhesive Production Line:
1.It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.
|Model||2000L Mixing plant||3000/4000L Mixing plant||6000L Mixing Plant||10000L Mixing Plant|
|Worker Required||2-3 person||3-4 person||3-4 person||3-4 person|
|Bag belt Conveyor||B500X5000mm||B500X5000mm||B500X5000mm||B500X5000mm|
|Pallet Wrapping Machine||Provide||Provide||Provide||Provide|
|Sand Dryer||Provide As Requirement||Provide As Requirement||Provide As Requirement||Provide As Requirement|
6. Application of MG Automatic Dry Mortar Tile Adhesive Production Line:
Raw material of dry mortar:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
MG automatic dry mortar plant can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
7. Factory and Workshop
9. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
10.Why Choose Us
We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):
1. Over 20 years experience in this line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;
2 . We provide to customers with combat experience of decade years of construction management and multiple efficient project solution.
3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.
We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
